Canopy Ceilings - Free-Floating Metal Ceiling Elements

Verified by manufacturer 23 days ago

LMD-DS 313 metal canopy ceiling with frame

Lindner Group Variant:
Third party certifications:
  • EPD

    EPD

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • Cradle to Cradle Certified

    Cradle to Cradle Certified

    Certificate type

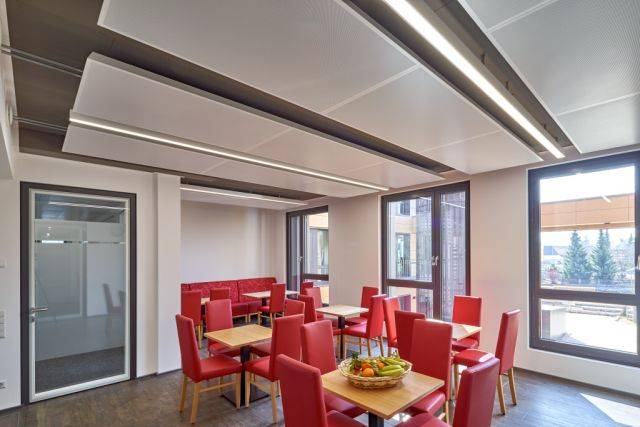

Canopy Ceilings are free-floating elements that allow a view of the bare ceiling. Thanks to this open construction, they improve not only the visual appearance they also enhance the acoustics.

Jump to:
020 8246 6333 Website

Application

Ceiling applications.

Description

Free-floating elements that allow a view of the bare ceiling. Thanks to this open construction, they improve not only the visual appearance they also enhance the acoustics.

Extensive design options and customized arrangement as individual modules or in rows emphasise the versatility of Metal Canopy Ceilings.


Features and benefits:

  • High sound absorption due to the open construction.
  • Design freedom due to individual arrangement of canopies.
  • Flexible room planning possible.
  • Freely floating Canopy Ceilings allow a view of the bare ceiling.
  • Existing thermal activation of the bare ceiling can be combined with Lindner Canopy Ceilings.
  • Shape and suspension: The canopy ceiling is designed in agreement with the customer according to shape of building, room size and room maintenance. A large variety of shapes and sizes are available. Various types of suspension are available.


Metal canopy ceiling with powder-coated surface, installed with a concealed substructure. Manufactured in accordance with European standards and the technical regulation of TAIM e.V.

General information

Color

Other

White

Silver

Finish

Powder-coated

Material

Stainless steel

Shape

Rectangle

Square

Triangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

25 year

Uniclass

Ss_30_25_22_51 Modular suspended ceiling systemsPrimary

CAWS

K40/10 Unit/ modular suspended ceilings

K40/115 Unit/ modular suspended ceiling system

Product range

Ceilings

Specification data - Modular suspended ceiling systems

Ceiling support

Concealed suspension system.

Ceiling units

Hook-on ceiling panel.

Edges

Bevelled.

Perforation

None.

Guidance for specification option:

Plain.

Rd 1,6-25.

Rv 1,8–20.

Rg 2,5–16.

Rv 3,0–20.

Type

LMD-DS 313 Type 1, hook-on.

Powder coating

RAL 9010.

Guidance for specification option:

Manufacturer's standard.

RAL.

Guidance for specification option:

Insert requirements.

NCS.

Guidance for specification option:

Insert requirements.

Fire resistance

To DIN EN 13501-1, A2-s1,d0.

Panel size

-

Manufacturer guidance

Length up to 3000 mm, manufactured from either 0.6 or 0.75 mm zinc-galvanized steel, consult manufacturer and insert requirements.

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Material

Stainless steel

Manufacturing plant location

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

25 %

Third party certifications

Third party certifications

EPD

EPD

Metal Ceiling System

EPD

EPD

Heated and chilled ceilings made of steel

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001 TUV Management Services

Cradle to Cradle Certified

Cradle to Cradle Certified

LMD Metal Ceiling

Cradle to Cradle Certified

Cradle to Cradle Certified

Plafotherm Heated and Chilled Ceilings
