Pitched Fibre Cement Profiled Sheet Roof on Light Steel Rafters
Verified by manufacturer 3 months ago
Pitched roof construction comprising: Fibre cement profiled sheet roof covering system, light steel framed roof structure system.
Description

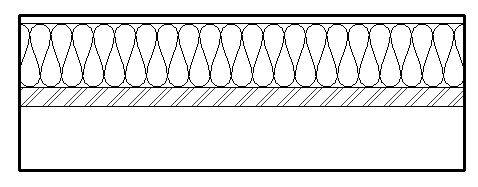

Pitched roof construction comprising:
Fibre cement profiled sheet roof covering system:
- 18 mm Fibre cement profiled sheet
- Plastics sheet roofing underlay
- 150 mm Mineral wool insulation
Light steel framed roof structure system:
- 45 mm Steel inner lining
- 150 mm Cold-formed galvanized section
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 2 |
 Revit | Revit 2016 | 2 |
