Aluminium cassette panels with metal frame, weather barrier, insulation, concrete block and plasterboard lining

Aluminium cassette panels with metal frame, weather barrier, insulation, concrete block and plasterboard lining

NBS Jump to:
+44 (0)345 4569594 theNBS.com

Description

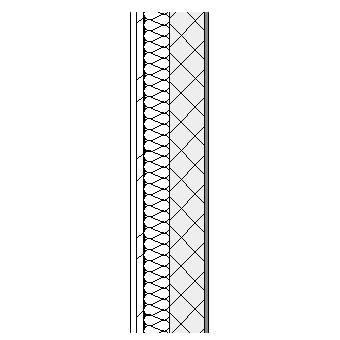

Cladding system comprising: 25 mm aluminium cassette panels, 100 mm metal frame, 2 mm polyethylene weather barrier membrane, 100 mm mineral wool batts insulation and 140 mm aggregate concrete blockwork lined with 25 mm gypsum plaster.

Digital objects

Platform Compatible Version Certified to
IFC

IFC2X3

2

2

Revit

Revit 2013

2.0

2.0

Download now from NBS National BIM Library
