Brick cavity wall with full fill insulation and plaster

Description

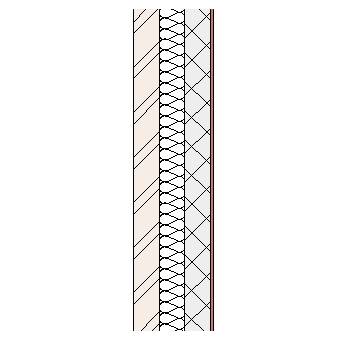

Unit wall system comprising: 102.5 mm clay brick, 100 mm mineral wool insulation batts, 100 mm concrete block and 13 mm plaster.

Digital objects

Platform Compatible Version Certified to
Revit

Revit 2013

2.0

2.0

IFC

IFC2X3

1.0

1.0

Download now from NBS National BIM Library
