Permavent Envirotect XT 150 Wall Breather Membrane - Waterproof Breathable Wall Membrane

Name: Permavent Envirotect XT 150 Wall Breather Membrane - Waterproof Breathable Wall Membrane
Brand: Permavent Ltd
SKU: jPZhjzcRr13zzuzqCFG9u9

Verified by manufacturer 1 day ago

0.5 x 50 m

Permavent Ltd

Spunbond non-woven polypropylene construction membrane, designed and developed for use in timber frame, light steel gauge, modular building, and leisure building applications.

Jump to:

+44 (0)1305 766703 Website

Application

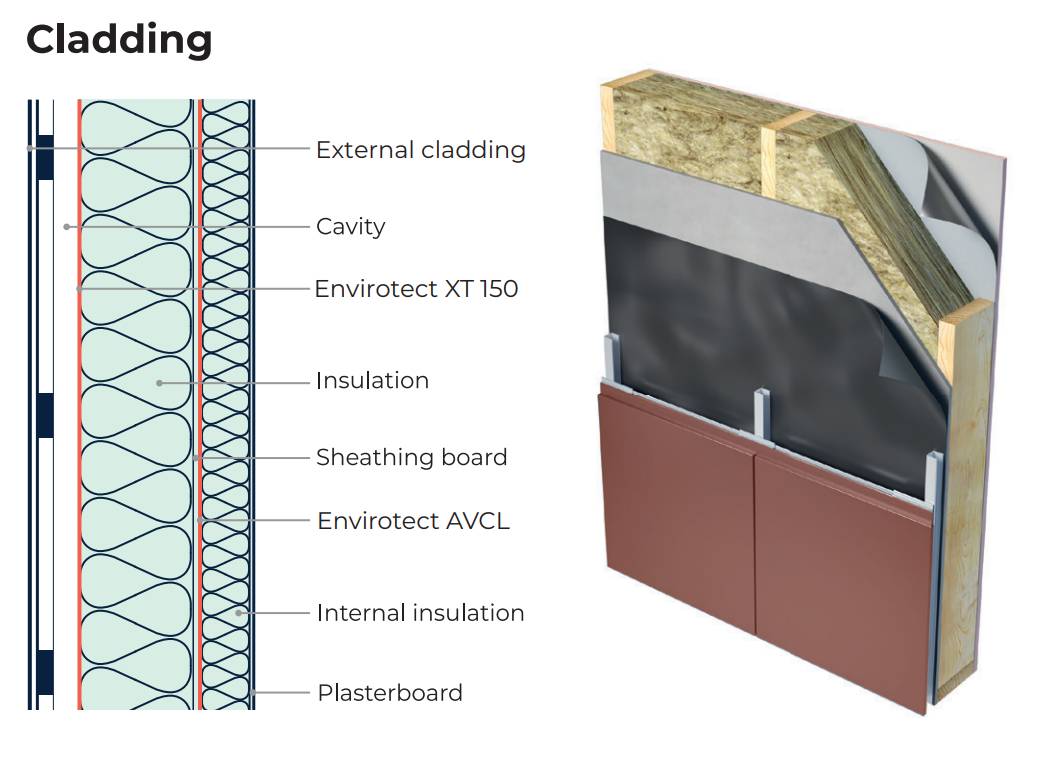

Designed and developed for use in timber frame, light steel gauge, modular building and leisure building applications.

Delivers first line protection to the external of the building during construction against driving rain, and wind-blown snow providing ultimate protection to the interior of the building.

Description

Spunbond non-woven polypropylene construction membrane, designed and developed for use in timber frame, light steel gauge, modular building, and leisure building applications.

Delivers first line protection to the external of the building during construction against driving rain, and wind-blown snow providing ultimate protection to the interior of the building.

The high water vapour permeability provided ensures water vapour can pass through the structure safely into a vented cavity.

Features and benefits:

Effective condensation control and airtightness within walling construction.
Flexible and easy to install.
Greatly exceeds the requirements of the updated guidance in building regulations Approved Document Part L.
Meet and exceeds waterproofing requirements in BS EN 13589–2:2014 (W2).
Prevents water ingress to the structure.
Provides comprehensive waterproofing barrier to the sheathing during construction phase.
Can be combined with Envirotect AVCLs.
Reflective version also (Envirotect XT 150 Reflect wall membrane; specified separately).

General information

Color	Black
Finish	Other
Material	Polypropylene Guidance for specification option: Non-woven.
Shape	Rectangle
Length	50000 mm 100000 mm
Width	500 mm 1350 mm 1500 mm 2700 mm
Warranty description	15 year

Uniclass	Pr_25_57_10_94 Vapour-permeable sheetsPrimary
CAWS	H22/20 Breather membrane H22/130 Breather membrane H30/50 Breather membrane H31/280 Breather membrane H30/350 Breather membrane H31/55 Breather membrane H21/130 Breather membrane H21/20 Breather membrane P10/320 Breather membrane P10/65 Breather membrane

SKU Code	ENVIROTECTXT150-25
GTIN/EAN	5060747291043

Specification data - Vapour-permeable sheets

Standard	To BS EN 13859-1 and BS EN 13859-2.
Class (minimum)	W2.
Third-party certification	British Board of Agrément (BBA) certificate 22/6247, Product Sheet 3.
Performance criteria	-
Water vapour properties	Water vapour resistance (Sd): 0.05 m.
Tensile properties	To BS EN 12311-1 (MD/ CD), 240/ 190 N/50mm. Guidance for specification option: MD: Machine direction; CD: Cross direction.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	100%.
Material	Polypropylene, non-woven.
Form	Spun-bonded, non-woven.
Weight (minimum)	100 g/m².
Thickness (minimum)	Manufacturer's standard.

Roll size	0.5 x 50 m. Manufacturer guidance Width x length.
Tear resistance	To EN 12310-1 (MD/ CD): 220/ 230 N/50mm. Guidance for specification option: MD: Machine direction; CD: Cross direction.
CoverageArea	25 m².
Weight	2.7 kg.
Flexibility at low temperature	To EN 1109, -30°C.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Material	Polypropylene Guidance for specification option: Non-woven.
Recyclability	Recyclable
Recycled content As defined in clause 7.8 of BS EN ISO 14021	100 %
Expected Life	Lifetime
