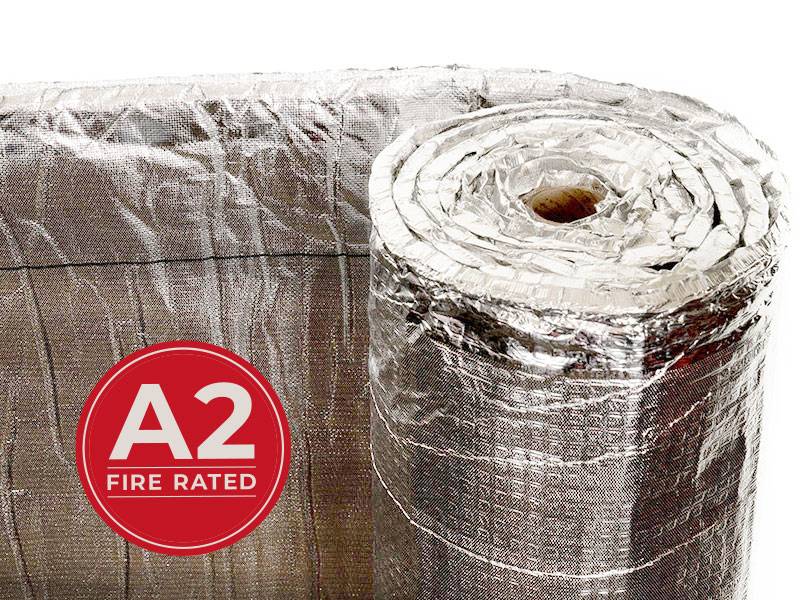

Permavent Skytech Class A2 Insulated Breather Membrane - Fire Safe Roofing and Walling Membrane

Verified by manufacturer 20 hours ago

Permavent Ltd

A2-s1, d0 fire rated insulating breathable membrane.

Jump to:
+44 (0)1305 766703 Website

Application

Suitable for roofing and facade applications, including high-rise buildings over 18 m above ground level, and suitable for conservation and listed buildings in fire resistant breather membrane applications.

Description

Skytech Pro XL is an A2-s1, d0 fire rated construction membrane that is insulating and vapour permeable. Skytech Pro XL is 13 mm thick and does not expand, requiring only a 20 mm air gap/ batten.

Features and benefits:

  • A2-s1, d0 fire rated reflective membrane.
  • Excellent thermal, waterproof, soundproof and airtight properties.
  • Thin: only 13 mm.
  • Quick and easy to install.
  • Integrated adhesive strip.
  • Available in a 1.12 x 18 m roll.

General information

Color

Silver

Finish

Reflective

Material

Glass Fibre

Guidance for specification option:

With aluminium.

Shape

Rectangle

Length

18000 mm

Width

1120 mm

Height

13 mm

Warranty description

15 year

Uniclass

Pr_25_57_10_94 Vapour-permeable sheetsPrimary

CAWS

H62/235 Vapour-permeable underlay

H64/307 Vapour-permeable underlay

H67/290 Vapour-permeable underlay

H31/280 Breather membrane

P10/320 Breather membrane

H61/22 Vapour-permeable underlay

H65/22 Vapour-permeable underlay

H64/22 Vapour-permeable underlay

H67/24 Vapour-permeable underlay

H65/235 Vapour-permeable underlay

H61/235 Vapour-permeable underlay

H60/235 Vapour-permeable underlay

H31/55 Breather membrane

H91/305 Vapour-permeable underlay

P10/65 Breather membrane

H60/22 Vapour-permeable underlay

SKU Code

SKYTECHPROXL

GTIN/EAN

5060747290251

Specification data - Vapour-permeable sheets

Standard

To BS EN 13859-1.

Class (minimum)

W1.

Performance criteria

-

Water vapour properties

Water vapour resistance (Sd): 0.041 m.

Fire performance

Reaction to fire: To BS EN 13501-1, A2-s1, d0.

Tensile properties

To BS EN 12311-1 (L/ T), 630/ 630 N/50mm.

Guidance for specification option:

Longitudinal/ transverse direction.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100%.

Material

Glass fibre with aluminium.

Form

Spun-bonded.

Weight (minimum)

25 kg.

Thickness (minimum)

13 mm.

Reflective face

Required.

Roll size

1.12 x 18 m.

CoverageArea

20.16 m².

Sound reduction

16 dB.

Nail shank

L/ T, 275/ 280 N.

Guidance for specification option:

Longitudinal/ transverse direction.

Thermal resistance

1.7 m²·K/W.

U-value

0.59 W/m²K.

ThermalConductivity

0.029 W/m·K.

Emissivity

5%.

Reflectivity

95%.

Adhesive

Integrated adhesive strip.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Glass Fibre

Guidance for specification option:

With aluminium.

Recyclability

Recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Expected Life

Lifetime

Literature

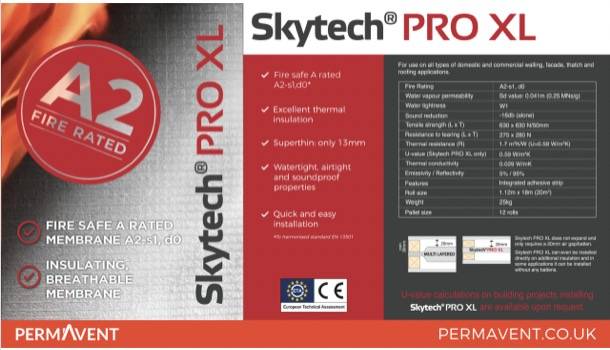

Skytech® PRO XL

Skytech® PRO XL
