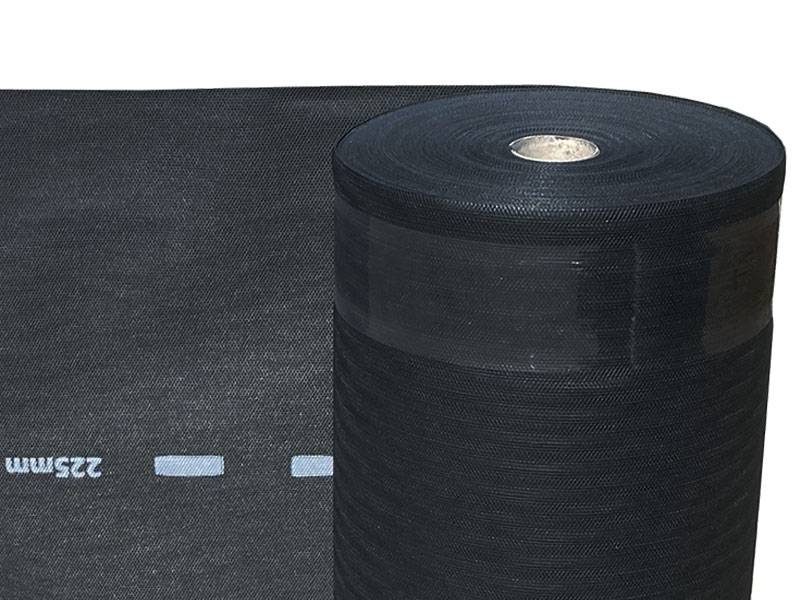

Permavent DRY+ Low Pitch Breathable Roofing Underlay - Vapour Open Roofing Membrane

Verified by manufacturer 19 hours ago

Permavent Ltd

Breathable roofing membrane.

Jump to:
+44 (0)1305 766703 Website

Application

Suitable for use in both warm and cold pitched roofing applications.

Description

Permavent Dry+ is a high-performance vapour-permeable membrane for roofing applications, especially at low pitches.



Permavent Dry+ has integrated tapes to make it an airtight membrane and is suitable for all wind zones in the UK.

Features and benefits:

  • Suitable to adhere to BS 5250 and BS 5534.
  • Cold and warm roof covering.
  • Can be used with all solar panel types.
  • Three month UV stability.
  • W1 watertightness.
  • CE marked and UKCA marked.
  • Taped version
    • Built‑in double tape speeds up laps and seals, reducing overall membrane usage by up to 25%
    • Ideal where labour or tape compatibility is a concern

General information

Color

Grey

Material

Polypropylene

Guidance for specification option:

Non-woven.

Shape

Rectangle

Length

50000 mm

Width

1000 mm

Warranty description

15 year

Uniclass

Pr_25_57_10_94 Vapour-permeable sheetsPrimary

CAWS

H62/235 Vapour-permeable underlay

H64/307 Vapour-permeable underlay

H67/290 Vapour-permeable underlay

H61/22 Vapour-permeable underlay

H65/22 Vapour-permeable underlay

H61/235 Vapour-permeable underlay

H60/235 Vapour-permeable underlay

H91/305 Vapour-permeable underlay

H60/22 Vapour-permeable underlay

H64/22 Vapour-permeable underlay

H67/24 Vapour-permeable underlay

H65/235 Vapour-permeable underlay

P10/65 Breather membrane

H31/55 Breather membrane

P10/320 Breather membrane

H31/280 Breather membrane

SKU Code

DRY50+TAPED

GTIN/EAN

5060747291081

Specification data - Vapour-permeable sheets

Class (minimum)

W1.

Performance criteria

-

Water vapour properties

Water vapour resistance (Sd): 0.02 m.

Fire performance

Reaction to fire: To BS EN 13501-1, Class E.

Tensile properties

MD/ CD, 490/ 310 N/50 mm.

Material

Polypropylene, non-woven.

Form

Spun-bonded.

Weight (minimum)

220 g/m².

Roll size

1 x 50 m.

Nail shank

MD/ CD, 260/ 385 N.

CoverageArea

50 m².

Elongation

MD/ CD, 60/ 90%.

Adhesive

Double sided adhesive, air and water-tight, three-dimensionally formable acrylic adhesive.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Polypropylene

Guidance for specification option:

Non-woven.

Recyclability

Recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Expected Life

Lifetime
