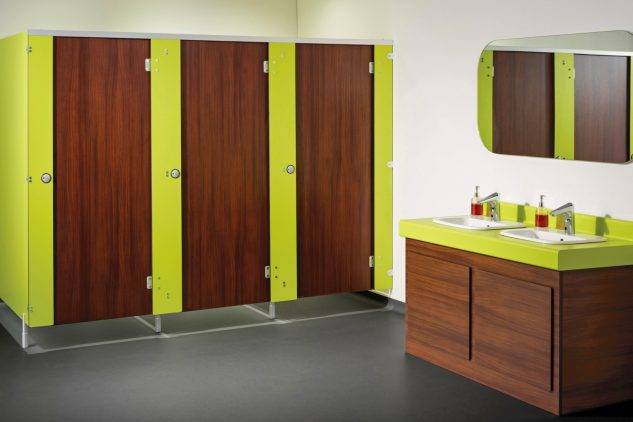

Pendock Washroom - Robust Cubicle & Washroom Systems - Cubicle and Washroom System

Verified by manufacturer 5 months ago

Pendock Third party certifications:
  • Constructionline Gold

    Constructionline Gold

    Certificate type

Cubicle and washroom system.

Jump to:
+44 (0)1952 580 590 Website

Application

Suitable for any washroom installation, in particular high traffic and demanding applications where durability, impact resistance and the ability to resist high levels of moisture are key considerations during specification.

Description

Robust toilet cubicles are stylish, highly durable and manufactured using UKTR compliant 12 mm thick compact laminate (CL), also known as compact grade laminate (CGL) or solid grade laminate (SGL). The doors and panels incorporate damage-resistant decorative surfaces that meet the demands of most projects. Robust cubicles are highly versatile and can be used in any washroom installation, although their high specification, durability and water resistant capabilities makes them particularly suitable for use in wet or high humidity environments.


The waterproof and tough CL core is typically finished with equally durable high pressure laminates, which can be specified in a wide range of colours and patterns, to give an exceptionally strong self supporting panel incorporating a smooth, curved edge profile.


To complement the Robust cubicle, vanity units and back panels are also available, which are designed to fully integrate fully with our cubicle ranges. Resin and other material options can also be specified. Using specialist forming and finishing techniques, the vanity unit tops are manufactured as a single piece for strength and durability, whilst a flexible manufacturing processes and material options allows bespoke panelling to match any cubicle.


Features and benefits:

  • High specification.
  • Designed for high traffic and wet areas.
  • Resist high levels of moisture.
  • Stylish and easy to install.
  • Provide high durability.
  • Excellent value and design flexibility.
  • Highly versatile solution for single and multiple cubicle installations in corner, island or between walls configurations.
  • Easy to clean (no special precautions required when using pressurised hoses and the solid core prevents peeling and cracking).
  • Can be specified with a wide range of finish or colour combinations.
  • Aluminium or stainless steel ironmongery.
  • DDA and Approved Document M compliant cubicles and fittings are available as options within the range.

General information

Color

Other

Finish

Laminated

Material

Composite

Solid grade laminate (SGL)

Aluminium

Shape

Rectangle

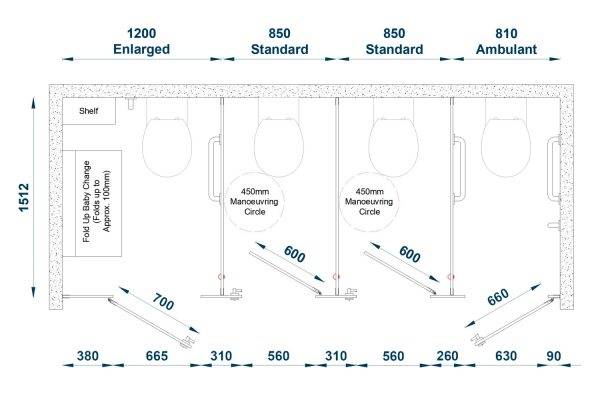

Length

Bespoke

Width

850 mm

Guidance for specification option:

Standard.

Bespoke

Height

1950 mm

Guidance for specification option:

Standard.

Bespoke

Uniclass

Ss_25_12_60_60 Panel cubicle systemsPrimary

CAWS

K32/120 Panel cubicles

K32/10 Panel cubicles

Specification data - Panel cubicle systems

Panels

Compact laminate (CL).

Panel supports

Aluminium support foot.

Aluminium low support foot.

Stainless steel support foot.

Doors

Compact laminate (CL).

Hardware

Aluminium indicator bolt 'standard'.

Guidance for specification option:

Consult manufacturer for details.

Aluminium indicator bolt 'optional'.

Guidance for specification option:

Consult manufacturer for details.

Stainless steel indicator bolt.

System accessories

Not required.

BioCarbon® vanity units.

Solid surface wash troughs.

BioCarbon® IPS duct panels and back panels.

Coat hooks.

Toilet roll holders.

Grab rails.

Ambulant cubicle accessories.

Thickness (overall)

12 mm.

Bracket

Aluminium channel bracket.

Stainless steel channel bracket.

Hinges

Aluminium 'D' hinge.

Stainless steel 'D' hinge.

Stainless steel dual bolt hinge.

Stainless steel gravity hinge.

Headrail

Aluminium 'D' header rail.

Stainless steel 'D' header rail.

Stainless steel channel header rail.

Overall size

-

Manufacturer guidance

Consult manufacturer and insert requirements.

Sustainability data

Contains Red List materials

No

Country of material origin

Colombia

Country of product manufacture

United Kingdom

Recyclability

Zero carbon
The latest sustainable materials to be added to our range are BioCarbon® zero carbon laminates. These are the first carbon neutral materials of this type to be available in the UK.

In addition to having all the durability and decorative characteristics of standard HPL materials, BioCarbon also provides both anti-bacterial and anti-microbial protection, as well as being zero carbon.

This combination of features makes it ideal for our Pendock Washroom range of cubicles and is also used within our Pendock Linea building linings products as a durable finishing solution.

Third party certifications

Constructionline Gold

Constructionline Gold

Constructionline Gold

Literature

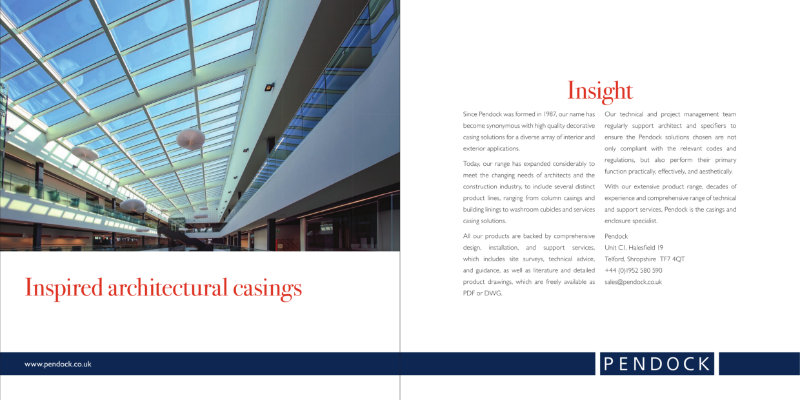

Pendock Architectural Products - Overview Brochure

Pendock Architectural Products - Overview Brochure

Case studies

Zero Carbon sheet materials

Zero Carbon sheet materials

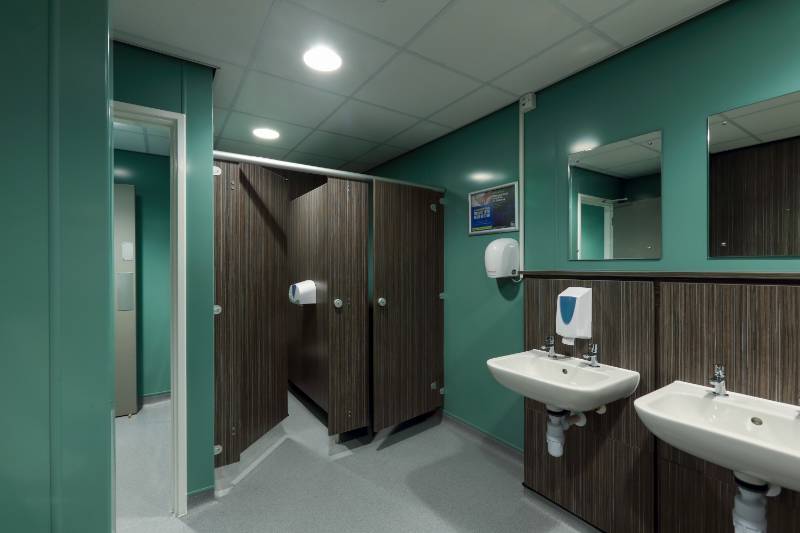

Wellington House Washroom Systems - Telford & Wrekin Council Building

Wellington House Washroom Systems - Telford & Wrekin Council Building

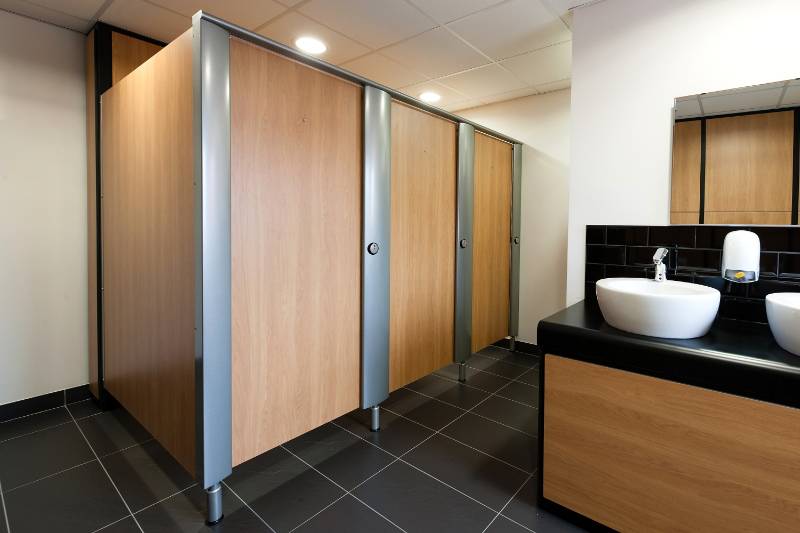

Pendock cleans up with washroom range

Pendock cleans up with washroom range

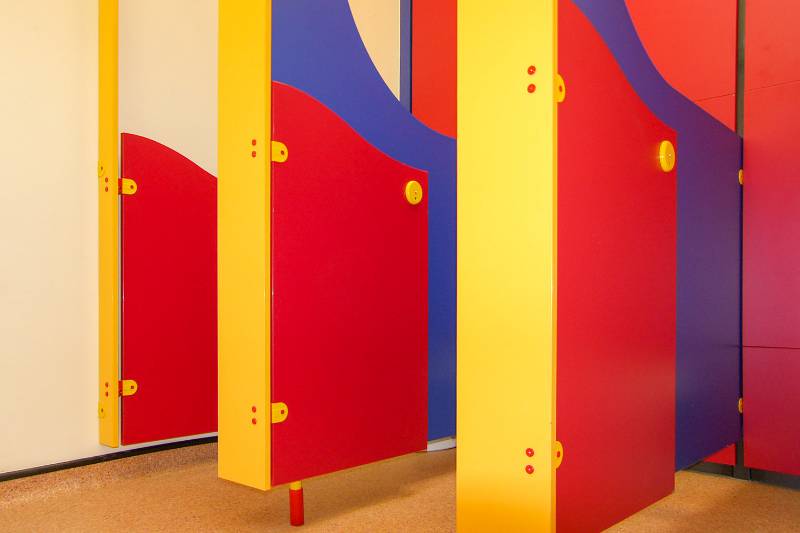

A splash of colour for nursery washrooms

A splash of colour for nursery washrooms

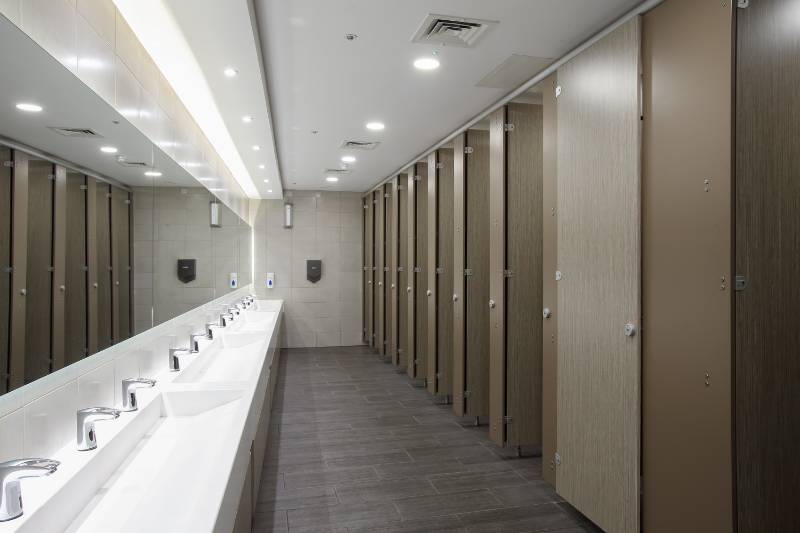

Pendock Classic Plus for Hull Shopping Centre washrooms

Pendock Classic Plus for Hull Shopping Centre washrooms

Similar products from Pendock

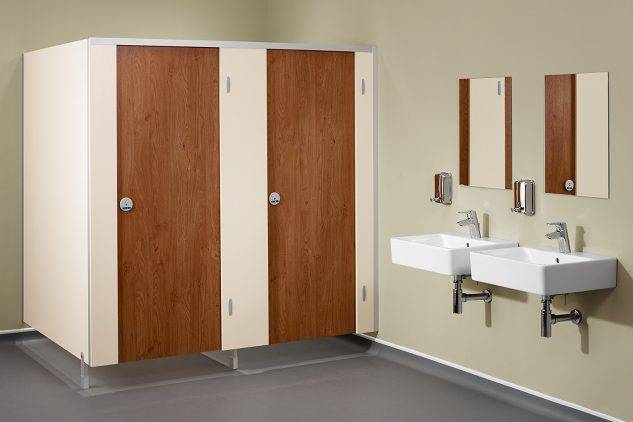

Pendock Washroom - Classic Cubicle & Washroom Systems - Washroom & Cubicle System

Pendock Washroom - Classic Cubicle & Washroom Systems - Washroom & Cubicle System

Pendock Washroom - Classic Plus Cubicles & Washroom Systems - Washroom & Cubicle Systems

Pendock Washroom - Classic Plus Cubicles & Washroom Systems - Washroom & Cubicle Systems

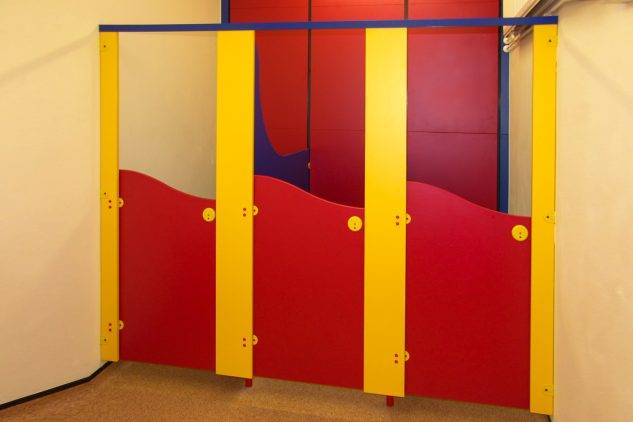

Pendock Washroom - Education Cubicle & Washroom Systems

Pendock Washroom - Education Cubicle & Washroom Systems

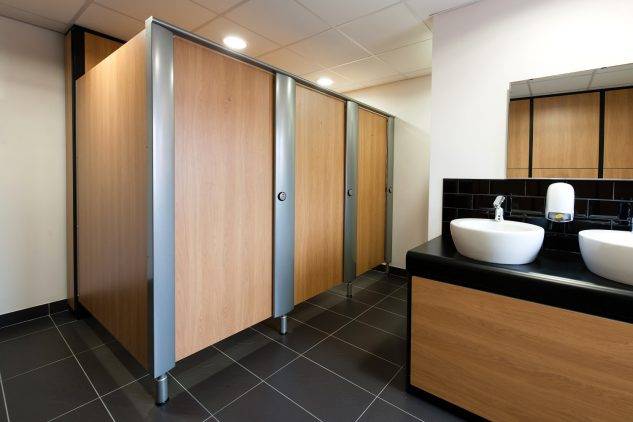

Pendock Washroom - Ultimate Cubicle & Washroom Systems - Cubicle & Washroom Systems
