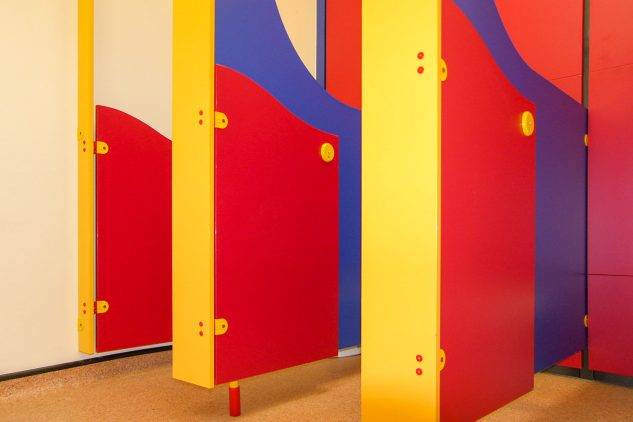

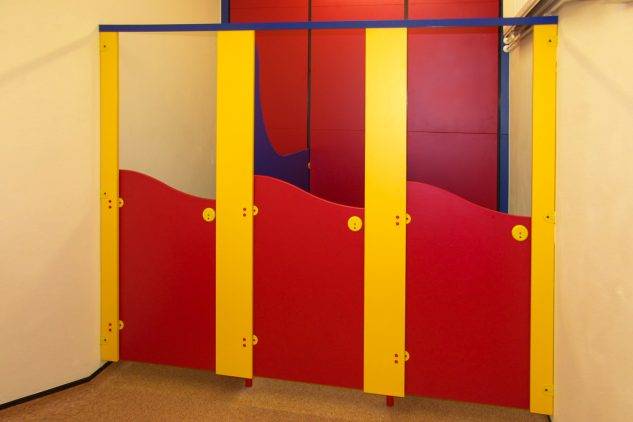

Education cubicle and washroom system.
Suitable for infant school washrooms.
From nursery and pre-school through to sixth-form college and beyond, educational washrooms have their own specific requirements. Pendock's dedicated washrooms for education range is designed to meet the highest standards of manufacture and quality while complying with prevailing regulations and offering a wide choice of design options.
Flexibility of design and the ability to customise the panel finishes help to improve the educational washrooms. By creating attractive and practical designs specifically for use by children and young people, which are durable, hygienic, safe and affordable, the washroom provides a range of solutions. The range can be specified using 18 mm thick melamine or high-pressure laminate-faced chipboard (MFC and HPL), as well as 12 mm thick compact laminate to meet all budgets and specifications while allowing maximum freedom.
To complement the education cubicle, vanity units and back panels are also available, which are designed to fully integrate fully with our cubicle ranges. Resin and other material options can also be specified. Using specialist forming and finishing techniques, the vanity unit tops are manufactured as a single piece for strength and durability, whilst a flexible manufacturing processes and material options allows bespoke panelling to match any cubicle.
With a range of panel materials, laminate finishes and colour options available, Education cubicles provide a versatile and stylish addition to any washroom specification.
Features and benefits:
Color | Red Yellow Blue Other |
Finish | Laminated |
Material | High pressure laminate (HPL) Laminate MFC |
Shape | Rectangle |
Length | 1500 mm |
Width | 850 mm Bespoke |
Height | 1800 mm Bespoke |
Uniclass | |
CAWS | K32/120 Panel cubicles K32/10 Panel cubicles |
Panels | Melamine faced chipboard (MFC).Guidance for specification option: 18 mm thick. High pressure laminate (HPL).Guidance for specification option: 18 mm thick. Compact laminate (CL).Guidance for specification option: 12 mm thick. |
Panel supports | Aluminium support foot.Aluminium low support foot.Stainless steel support foot. |
Doors | Melamine faced chipboard (MFC).Guidance for specification option: 18 mm thick. High pressure laminate (HPL).Guidance for specification option: 18 mm thick. Compact laminate (CL).Guidance for specification option: 12 mm thick. |
Hardware | Aluminium indicator bolt 'standard'.Guidance for specification option: Consult manufacturer for details. Aluminium indicator bolt 'optional'.Guidance for specification option: Consult manufacturer for details. Stainless steel indicator bolt. |
System accessories | Not required.Coat hooks.Toilet roll holders.Grab rails.Lockers.Benches. |
Bracket | Aluminium channel bracket. Stainless steel channel bracket. |
Hinges | Aluminium 'D' hinge. Stainless steel 'D' hinge. Stainless steel dual bolt hinge. Stainless steel gravity hinge. |
Headrail | Aluminium 'D' header rail. Stainless steel 'D' header rail. Stainless steel channel header rail. |
Overall size | Manufacturer guidanceConsult manufacturer and insert requirements. |
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 95 |
