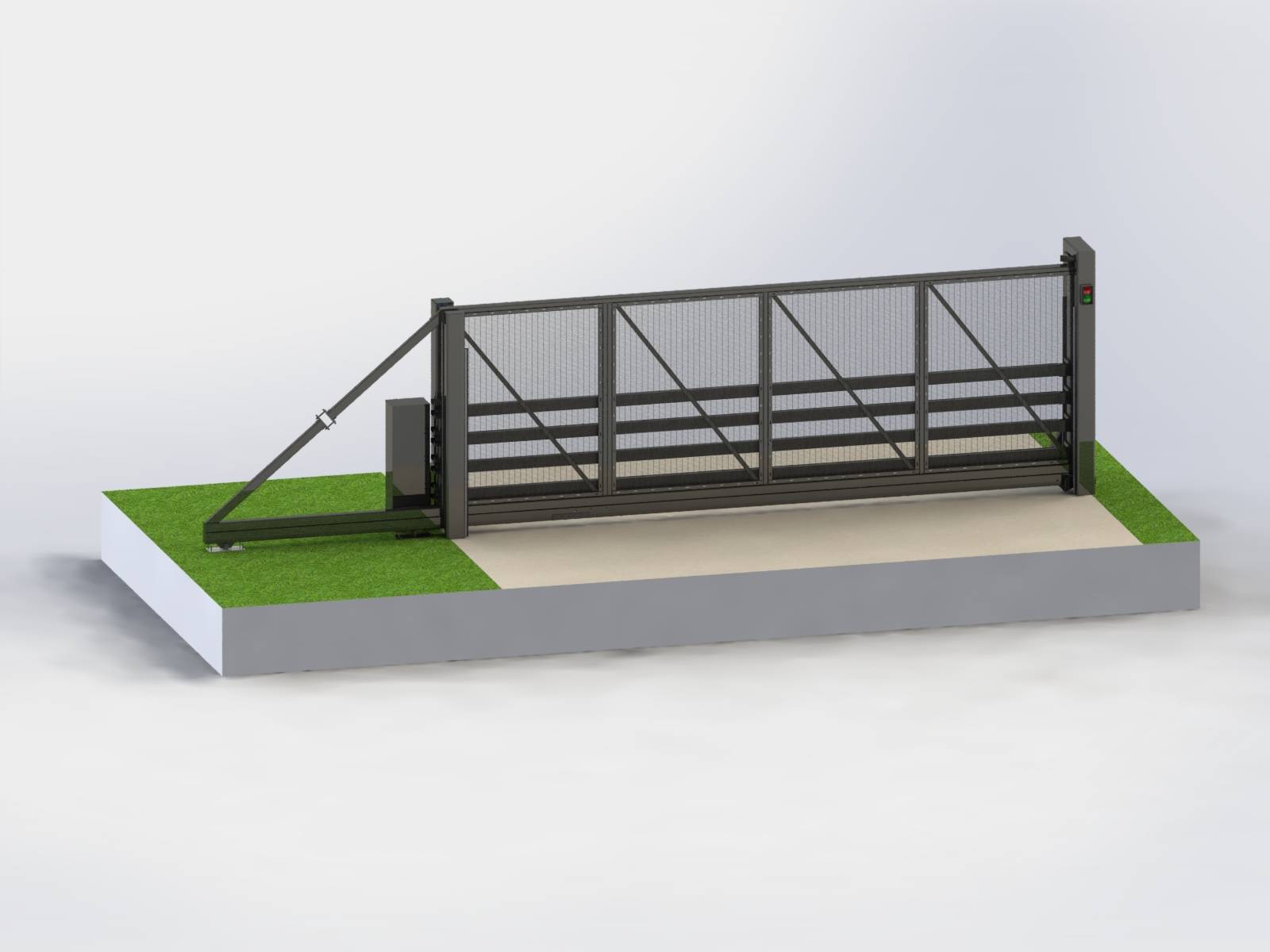

PAS68 Cantilever Sliding Gate
Verified by manufacturer 16 days ago
PAS68 Cantilever Sliding Gate 50 mph - EAG02050
PAS68 Cantilever Sliding Gate 50 mph - EAG02050
PAS68 Sliding Cantilever Gate, crash tested to 7.5T (N2) @ 40 mph (64 kph), PAS68:2010 V/7500[N2]/64/90:5.6/10.1 & 7.5T (N3) @ 50 mph (80 kph), PAS68:2010 V/7500[N3]/80/90:1.6/5.4.
Application
Cantilever sliding gates are used for hostile vehicle mitigation and perimeter security. They are crash-tested barriers designed to stop or slow down unauthorised vehicles, providing high-level protection for critical infrastructure such as power stations, military or government facilities, airports, data centres, high-security commercial sites, and crowded public venues like stadiums and event arenas.
Description
PAS 68 Impact-Tested High-Security Cantilever Sliding Gates are designed to deliver maximum perimeter protection where hostile vehicle mitigation is essential. Successfully tested to BSI PAS 68 standards, these gates can stop a 7,500 kg vehicle traveling at 40mph/64kph & 50mph/80kph (tested at 8000 x 2400 mm), making them ideal for securing high-risk sites without compromising on efficiency or aesthetics.
Key Features and Benefits:
- Trackless cantilever design—no height restrictions or ground track required.
- Certified to stop hostile vehicles (PAS 68 tested).
- Smooth, quiet, and low-maintenance operation.
- Standard operating speed 150-200 mm/s.
- Shallow foundations of only 330 mm (plus 50 mm surface finish).
- Supports power fencing and security toppings.
- Integrated traffic light signals and anti tail-gating function available.
Perfect for critical infrastructure, military bases, airports, and secure commercial sites, these gates provide reliable, high-speed access control with proven impact resistance.
General information
Finish | Powder-coated |
Material | Steel |
Shape | Rectangle Square |
Width | 8000 mm Bespoke |
Height | 3500 mm Bespoke |
Warranty description | One year |
Uniclass | |
CAWS | Q40/45 Proprietary gates Q40/560 Steel gates and posts Q40/570 Proprietary gates and posts Q41/190 Vehicle access point barriers Q50/120 Steel gate Q50/130 Gate Q50/15 Steel gate Q50/20 Gate |
SKU Code | EAG02050 |
Specification data - Sliding vehicular barriers
Classification data | |
Product reference | PAS68 Cantilever Sliding Gate. |
Format | Cantilevered, sliding. |
Method of operation | Heavy duty cantilever rolling gear. Guidance for specification option: To suit the size and weight of gate. |
Barrier dimension | |
Height | 3500 mm. Bespoke. Guidance for specification option: Typically, the height of the gate is 3500 mm but can be designed to unique requirements with the manufacturer's in house design team. Insert requirements. |
Span | 8000 mm. Bespoke. Guidance for specification option: Insert requirements. |
Posts | Receptor post. |
Barriers | |
Type | Not required. Acoustic solid. Bar. Bar and welded mesh. Ornate. Palisade. Perforated steel sheet. Welded mesh. Special order. Guidance for specification option: Insert requirements. |
Material | Carbon steel. |
Finish as delivered | |
Worked finish | Blast cleaned, SA 2.5. |
Applied finish | Galvanized and powder coated, RAL. Guidance for specification option: Insert colour requirement. Zinc phosphate and powder coated, RAL. Guidance for specification option: Insert colour requirement. |
Colour | Manufacturer guidanceAvailable in RAL colours. Consult manufacturer and insert requirements. |
Accessories | None. Signage. Traffic lights. Guidance for specification option: Recommended. |
Primer | Interpon PZ790 (or equivalent). |
Operation | Automatic. |
Speed | Manufacturer's standard. |
Access control | Automatic number plate recognition (ANPR). Card reader. Digital keypad. Radio control system. Push button control. |
Top protection | Not required. 55 mm serrated edge. Barbed tape. Barbed wire. Long blunted spikes. Palisade struts. Rotating serrated edge on a revolving tube. Rotating spikes. |
Performance characteristics | PAS68 rating: crash tested to 7.5T (N3) @ 50 mph (80 kph). PAS68:2010 V/7500[N3]/80/90:1.6/5.4. |
Construction | Manufactured from 50 x 50 mm carbon steel box section with 25 mm bars spaced at approximately 100 mm intervals. |
Drive/ Control | 240 V, 16 A supply. |
Safety features | Complies with gate safety standard BS EN 13241-1. Hi/Lo safety photocells. Manual release in the event of power failure. Protected with CAT3 safety edges. Safety loops. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | Steel |
Expected Life | 15 year |
Literature
PAS 68 Cantilever Sliding Gate INTERREGATOR
