PAS68 Bi-Folding Speed Gate
Description

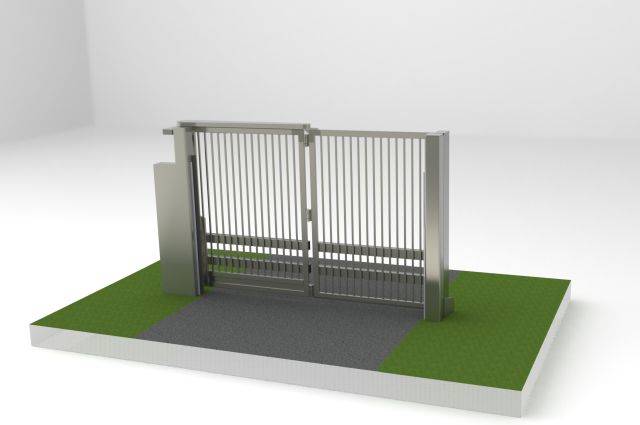

High security bi-folding, trackless speed gate that has been successfully impact tested to BSI PAS68, stopping 7500 kg vehicles travelling at 40 and 50 mph (tested at 4200 x 2200 mm). The unique design allows the gate to operate without the use of a bottom or top track, thus eliminating any height restrictions and large tracks in the road.

With shallow foundation and extremely low penetration it provides a superb design engineered solution for protection against hostile vehicle mitigation. Its flexible, lightweight design means that it can be manufactured with different mesh infill to match existing perimeter fencing. Available as a fully automated system or manual operation to suit client’s specification.

Operation:

On entrance activation, the gates open in a quick but safe folding action. On approaching the gates from the inside, a vehicle will drive over an internal safety/exit loop. Traffic lights, if installed, indicate the gates are about to move and go green when safe to enter or exit. The gates stay open and then close after all the safety devices are clear and/or after a set time. An anti tail-gating function can be enabled to control traffic flow.

Features:

  • Galvanized and powder coated finish.
  • Heavy duty hydraulic ram with PLC controlled slowdown in both opening and closing movement.
  • Hydraulic design, low maintenance with minimal moving parts.
  • Integrated vehicle arrestor system.
  • Lightweight and cost effective.
  • Lowest penetration and debris in its class at 40 and 50 mph.
  • Shallow foundations of only 380 mm.
  • Trackless design, no height restrictions and lower maintenance.
  • Very secure with opening and closing in approximately 7 seconds.

General information

Features

Galvanized and powder coated finish

Heavy duty hydraulic ram with PLC controlled slowdown in both opening and closing movement

Hydraulic design, low maintenance with minimal moving parts

Integrated vehicle arrestor system

Lightweight and cost effective

Show more

Size

[Size, Typically, the height of the gate is 2400 mm but can be designed to unique requirements with the manufacturer's in house design team]

-

Uniclass 2015

Pr_30_59_59_79 Sliding vehicular barriersPrimary

CAWS

Q40/45 Gates/ Gate posts

Q40/560 Steel

Q40/570 Gates

Q41/190 Vehicle access point barriers

Q50/120 Steel gate

Q50/130 Gate

Q50/15 Steel gate

Q50/20 Gate

Specification data - Sliding vehicular barriers

Product Reference

EAG-PAS68-BFG040

Designed to stop an N2 7500 kg vehicle travelling at 40 mph.

EAG-PAS68-BFG050

Designed to stop an N3 7500 kg vehicle travelling at 50 mph.

Colour

RAL

Insert colour requirement.

Access control

Automatic Number Plate Recognition (ANPR)

Card reader

Digital keypad

Radio control system

Push button control

Gate infill

Not required

Acoustic solid

Bar

Bar and Weldmesh

Ornate

Palisade

Perforated steel sheet

Weldmesh

Special order

Insert requirements.

Top protection

Not required

55 mm serrated edge

Barbed tape

Barbed wire

Long blunted spikes

Palisade struts

Rotating serrated edge on a revolving tube

Rotating spikes

Accessories

None

Signage

Traffic lights

Standard product features

Construction:

Manufactured from 50 x 50 mm carbon steel box section with 25 mm bars spaced at approximately 100 mm intervals.

Drive and controls:

  • 100% duty cycle rated.
  • 240 V 16 A supply.
  • Anti tail-gating option.
  • Controls housed in the posts with secure steel door.
  • High quality heavy duty hinges incorporating sealed bearings for smooth and long life operation.
  • High quality heavy duty hinges incorporating sealed bearings for smooth and long life operation.
  • Network capability for remote monitoring.
  • PLC design with frequency invertor speed control and encoder.

Safety:

  • Complies with gate safety standard BS EN 13241-1.
  • Hi/Lo safety photocells.
  • Manual release in the event of power failure.
  • Protected with CAT3 safety edges.
  • Safety loops.

Product Options

Size:

Typically, the height of the gate is 2400 mm but can be designed to unique requirements with the manufacturer's in house design team.

Literature
Third party certifications
  • PAS68
