Description

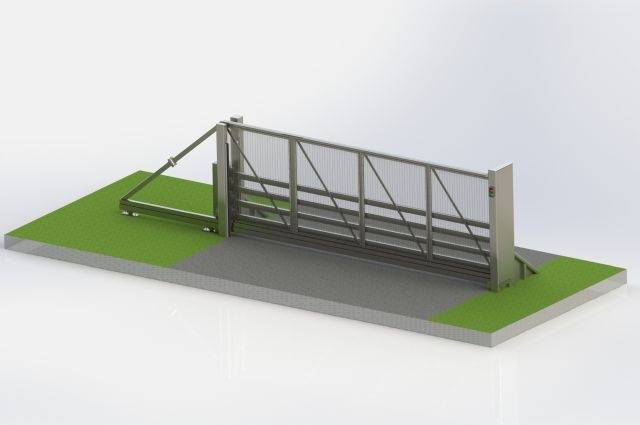

The Eagle cantilever sliding gate is designed to suit either an industry standard motor and drive or a bespoke Eagle PLC control system. The cantilever gate allows the system to open and close without the need of a track, thus eliminating any height restrictions and large tracks in the road.

Operation:

On entrance activation, the sliding gate opens in a quick but safe sliding action. On approaching the gate from the inside, a vehicle will drive over an internal safety/exit loop. Traffic lights, if installed, indicate the gates are about to move and go green when safe to enter or exit. The gate stays open and then closes after all the safety devices are clear and/or after a set time. An anti tail-gating function can be enabled to control traffic flow.

Features:

  • Low maintenance with minimal moving parts.
  • Smooth and quiet operation.
  • Trackless design, no height restrictions and lower maintenance.
  • Very secure, with an opening and closing speed of 150 mm/ second or a high speed unit available at 400 mm/ second.
  • Zinc phosphate and powder coated finish.

General information
Features

Low maintenance with minimal moving parts

Smooth and quiet operation

Trackless design, no height restrictions and lower maintenance

Very secure, with an opening and closing speed of 150 mm/ second or a high speed unit available at 400 mm/ second

Zinc phosphate and powder coated finish

Uniclass 2015
Sliding vehicular barriers (Pr_30_59_59_79)Primary
Specification data - Sliding vehicular barriers
Product Reference

EAGCSLG001

Colour

RAL

Insert colour requirement.

Operation

3 phase motor

24 V motor

Speed

Manufacturer's standard

175 mm/second.

High speed

400 mm/second.

Access control

Automatic Number Plate Recognition (ANPR)

Card reader

Digital keypad

Radio control system

Push button control

Gate infill

Not required

Acoustic solid

Bar

Bar and Weldmesh

Ornate

Palisade

Perforated steel sheet

Weldmesh

Special order

Insert requirements.

Top protection

Not required

55 mm serrated edge

Barbed tape

Barbed wire

Long blunted spikes

Palisade struts

Rotating serrated edge on a revolving tube

Rotating spikes

Accessories

None

Signage

Traffic lights

Standard product features

Construction:

Manufactured from 50 x 50 mm carbon steel box section, 100 mm bottom rail with 25 mm bars spaced at approximately 100 mm intervals.

Posts:

400 x 200 mm square posts.

Drive and controls:

  • 240 V 16 A supply.
  • Anti tail-gating option.
  • Heavy duty cantilever rolling gear to suit the size and weight of gate.
  • PLC design with frequency invertor speed control.
  • The gate is supported on posts with high quality bearings and rollers to reduce noise and vibration.

Safety:

  • Complies with gate safety standard BS EN 13241-1.
  • Hi/Lo safety photocells.
  • Manual release in the event of power failure.
  • Protected with CAT3 safety edges.
  • Safety loops.

Product Options

Size:

Typically, the height of the gate is 2400 mm but can be designed to unique requirements with the manufacturer's in house design team.
