Pagus Grey/Black - Clay Facing Brick
Verified by manufacturer 17 days ago
Soft mud moulded stock in grey/black multi colour with creased appearance.
Application
Suitable for external use.
Description
Created using an automated process where the clay is placed into moulds by a machine. Stock bricks tend to have softer, more varied edges.
Features and benefits:
- Stock as known as soft mud brick.
- Automated process where clay is laid into moulds by a machine.
- Creased appearance.
- Softer, more varied edges.
- Indent at the top of the brick known as a 'frog'.
- Sized inline with BS EN 771-1.
General information
Color | Black Brown Other Guidance for specification option: Black/brown Multi Grey Manufacturer guidanceGrey/ Black Multi. |
Finish | Creased |
Material | Clay |
Shape | Rectangle |
Length | 215 mm |
Width | 102.5 mm |
Height | 65 mm |
Uniclass | |
CAWS | F10/5 Facing brickwork F10/110 Clay facing brickwork |
Specification data - Clay bricks
Standard | To BS EN 771-1. |
Brick description | Facing brick. |
Appearance | Creased. |
Work size (length x width x height) | 215 x 102.5 x 65 mm. |
Tolerances | |
Mean value | T1. |
Range | R1. |
Compressive strength | |
Mean compressive strength (minimum) | ≥12 N/mm². |
Category | I. |
Durability designation | F2. |
Density | |
Gross dry | 1500 kg/m³. |
Tolerance | D1. |
Water absorption | ≤19%.Guidance for specification option: Percentage of water overall absorption. |
Configuration | Frogged. |
Thermal conductivity | P=90% 0.69 W/m⋅K.Guidance for specification option: 10,dry,unit value (EN 1745 tabulated: S1). |
Water vapour permeability | Manufacturer guidanceRefer to EN 1745. |
Bond strength | Manufacturer guidanceRefer to EN 1052-3. |
Reaction to fire | Class A1 to BS EN 13501-1. |
Active soluble salts | S2. |
Dry weight | 2.1 kg. Manufacturer guidanceIndividual Dry Brick Weight (kg). |
Sustainability data
Contains Red List materials | No |
Country of material origin | Belgium |
Country of product manufacture | Belgium |
Material | Clay |
Literature

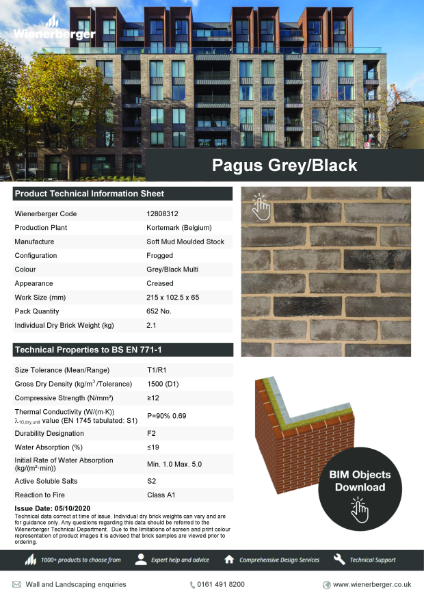

Pagus Grey Black Data Sheet
