Pagus Grey - Clay Facing Brick
Verified by manufacturer 16 days ago
Soft mud moulded stock brick in grey multi colour with creased appearance.
Application
Suitable for external use.
Description
Created using an automated process where the clay is placed into moulds by a machine. Stock bricks tend to have softer, more varied edges.
Features and benefits:
- Stock as known as soft mud brick.
- Automated process where clay is laid into moulds by a machine.
- Creased appearance.
- Softer, more varied edges.
- Indent at the top of the brick known as a 'frog'.
- Sized inline with BS EN 771-1.
General information
Color | Brown Grey Manufacturer guidanceBlack/brown Multi. |
Finish | Creased |
Material | Clay |
Shape | Rectangle |
Length | 215 mm |
Width | 102.5 mm |
Height | 65 mm |
Uniclass | |
CAWS | F10/5 Facing brickwork F10/110 Clay facing brickwork |
Specification data - Clay bricks
Standard | To BS EN 771-1. |
Brick description | Facing brick. |
Appearance | Creased. |
Work size (length x width x height) | 215 x 102.5 x 65 mm. |
Tolerances | |
Mean value | T1. |
Range | R1. |
Compressive strength | |
Mean compressive strength (minimum) | ≥12 N/mm². |
Category | I. |
Durability designation | F2. |
Density | |
Gross dry | 1500 kg/m³. |
Tolerance | D1. |
Water absorption | ≤19%.Guidance for specification option: Percentage of water overall absorption. |
Configuration | Frogged. |
Recycled content | Manufacturer's standard.Guidance for specification option: Consult manufacturer for details. |
Thermal conductivity | P=90% 0.69 W/m⋅K. |
Water vapour permeability | Manufacturer guidanceRefer to EN 1745. |
Bond strength | Manufacturer guidanceRefer to EN 1052-3. |
Reaction to fire | Class A1 to BS EN 13501-1. |
Active soluble salts | S2. |
Dry weight | 2.1 kg. Manufacturer guidancePer brick. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Belgium |
Country of product manufacture | Belgium |
Material | Clay |
Literature

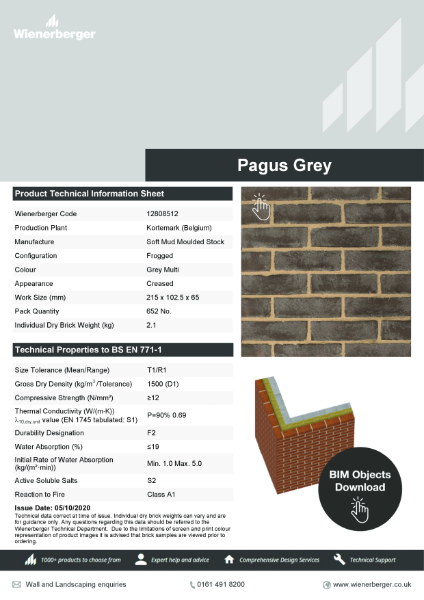

Pagus Grey Data Sheet
