P-Barrier
Verified by manufacturer 3 months ago

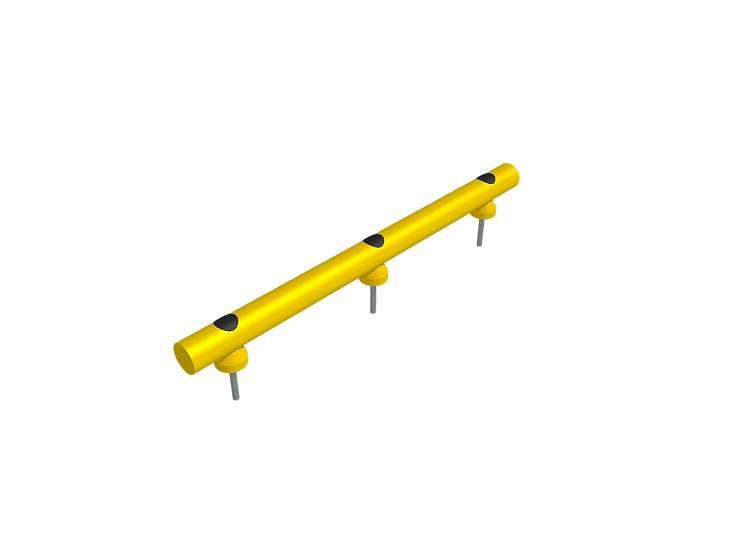

P-Barrier 70 mm
P-Barrier 70 mm
High-performance polymer protection barrier system designed for the protection of people, equipment, and assets.
Application
Suitable for a variety of applications including equipment, buildings and racking.
Description
The P-Barrier is a superior high-performance impact protection system designed to provide safe protection. They can be used to protect walls, machinery, columns and can also be used as a wheel guide to help guide drivers reversing articulated trailers to dock leveller doors for loading/ offloading purposes.
Features and benefits:
- High-Performance protection technology designed to safety absorb impacts.
- Available in various lengths, diameters and heights.
- Available in yellow (RAL 1021) as standard, and black (RAL 9004) with other non-standard colours available on request.
- Bespoke branding capability.
- Single 'hidden' steel threaded rod anchoring system.
- Hygienic and easy to clean and maintain
- Zero exposed steel or risk of exposed corrosion.
- High resistance against acids, alkali, and solvents.
- Typically 40% recycled polymer content.
- 100% recyclable at end-of-life.
- Tested to BS EN 1186-2:2002 and BS EN 1186-3:2002 for food contact.
- Tested to BS EN ISO 4892-2:2014 for UV Resistance – Zero Discoloration.
General information
Color | Yellow Black Other |
Finish | Smooth |
Material | Polymer Steel |
Shape | Circle |
Length | 500 mm 1000 mm 1500 mm 2000 mm 2500 mm |
Width | 70 mm 100 mm 120 mm |
Height | 125 mm 155 mm 175 mm |
Uniclass | |
CAWS | Q41/130 Protective barriers Q41/130 Protective barriers |
Specification data - Protective rail systems
System performance | Vehicle security impact. |
Mortar bedding | Manufacturer guidanceConsult manufacturer and insert requirements or omit. |
Rails | High-performance flexible synthetic polymer barrier. |
Steel reinforcement | Robust steel rod anchoring system. |
Size and profile | Ø70 mm. |
Length | 500 mm. Guidance for specification option: Two bases. 1000 mm. Guidance for specification option: Two bases. 1500 mm. Guidance for specification option: Three bases. 2000 mm. Guidance for specification option: Three bases. |
Height | 125 mm. |
Colour | Black, RAL 9004. Yellow, RAL 1021. Other. Guidance for specification option: Other colours are available subject to minimum order size. Consult manufacturer for details and insert requirements. |
Impact resistance | 7470 joules. Guidance for specification option: 1.94 tonne forklift travelling 10 km/h. Manufacturer guidanceDynamic Impact Test. Tested Impact Energy @ 90°. |
Density | 0.95 g/cm³. |
YieldStress | 28 N/mm². Manufacturer guidanceYield stress to DIN EN ISO 527. |
Elongation at break | 300%. |
Tensile Modulus | 850 MPa. Manufacturer guidanceTensile E modulus to DIN EN ISO 527. |
Shore Hardness - D | 66 N/mm². |
Thermal conductivity (maximum) | 0.38 W/m.K. |
Application temperature range | -100 to +80℃. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Spain |
Country of product manufacture | Spain |
Material | Polymer Steel |
Recyclability | 100% recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 40 % Guidance for specification option: Typically 40% recycled polymer content. |
Expected Life | 40 year |
Literature

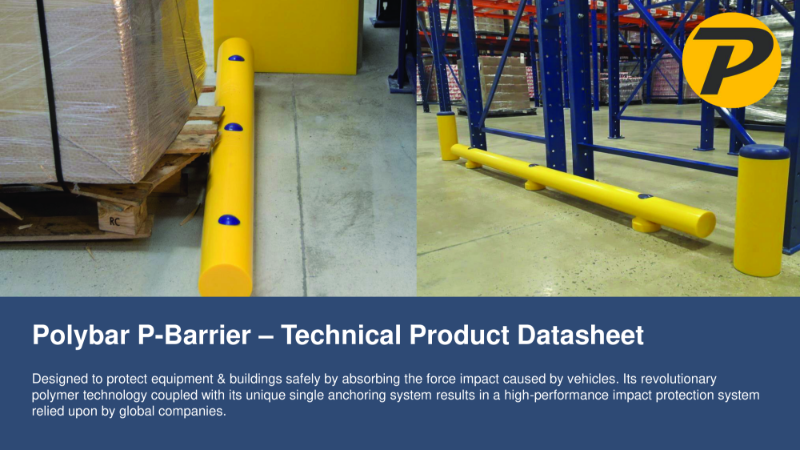

Polybar P-Barrier Technical Data Sheet
