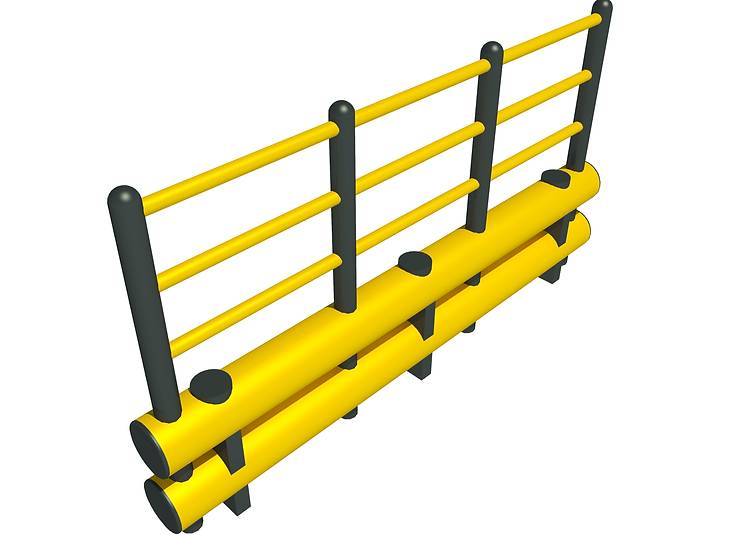

P-FLEX Double Barrier Rail
Verified by manufacturer 2 months ago
High-performance flexible synthetic polymer double hollow barrier rail system, that features P-FLEX technology, designed for the protection of people, equipment, and assets in high traffic areas.
Application
- Suitable for a variety of applications including equipment, buildings and racking.
- Designed for high traffic areas.
Description

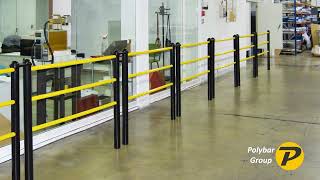

The P-FLEX Double Barrier Rail is a superior high-performance protection solution to segregate people from traffic and has been designed to offer optimum protection to people from moving traffic by safely deflecting upon impact and bringing forces gradually to a stop.
Features and benefits:
- P-FLEX Technology - a revolutionary high-performance flexible synthetic polymer designed to deflect and safely absorb impacts.
- Available in three lengths.
- Available in yellow (RAL 1021) as standard, and black (RAL 9004) with other non-standard colours available on request.
- Bespoke branding capability.
- Single 'hidden' steel threaded rod anchoring system.
- Hygienic and easy to clean and maintain
- Zero exposed steel or risk of exposed corrosion.
- High resistance against acids, alkali, and solvents.
- Typically 40% recycled polymer content.
- 100% recyclable at end-of-life.
- Tested to BS EN 1186-2:2002 and BS EN 1186-3:2002 for food contact.
- Tested to BS EN ISO 4892-2:2014 for UV Resistance – Zero Discoloration.
General information
Color | Yellow Black Other |
Finish | Smooth |
Material | Polymer Steel |
Shape | Circle |
Length | 1000 mm 1500 mm 2000 mm |
Width | 170 mm |
Height | 1100 mm |
Uniclass | |
CAWS | Q41/240 Handrail systems Q41/240 Handrail systems Q41/130 Protective barriers Q41/130 Protective barriers |
Specification data - Protective rail systems
System performance | Vehicle security impact. |
Mortar bedding | Manufacturer guidanceConsult manufacturer and insert requirements or omit. |
Rails | High-performance flexible synthetic polymer double barrier rail. |
Steel reinforcement | Robust steel rod anchoring system. |
Size and profile | Two Ø170 mm sections. |
Posts | Ø70 mm. |
Length | 1000 mm. Guidance for specification option: Two bases. 1500 mm. Guidance for specification option: Three bases. 2000 mm. Guidance for specification option: Three bases. |
Height | 1100 mm. |
Colour | Black, RAL 9004. Yellow, RAL 1021. Other. Guidance for specification option: Other colours are available subject to minimum order size. Consult manufacturer for details and insert requirements. |
Impact resistance | 21 360 joules. Guidance for specification option: P-FLEX Double Barrier Rail 170 x 2000 mm (tested on the P-FLEX Double Barrier). 5.54 tonne forklift travelling 10 km/h. Manufacturer guidanceDynamic Impact Test. Tested Impact Energy @ 90°. |
Density | 0.95 g/cm³. |
YieldStress | 28 N/mm². Manufacturer guidanceYield stress to DIN EN ISO 527. |
Elongation at break | 300%. |
Tensile Modulus | 850 MPa. Manufacturer guidanceTensile E modulus to DIN EN ISO 527. |
Shore Hardness - D | 66 N/mm². |
Thermal conductivity (maximum) | 0.38 W/m.K. |
Application temperature range | -100 to +80℃. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Spain |
Country of product manufacture | Spain |
Material | Polymer Steel |
Recyclability | 100% recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 40 % Guidance for specification option: Typically 40% recycled polymer content. |
Expected Life | 40 year |
Literature

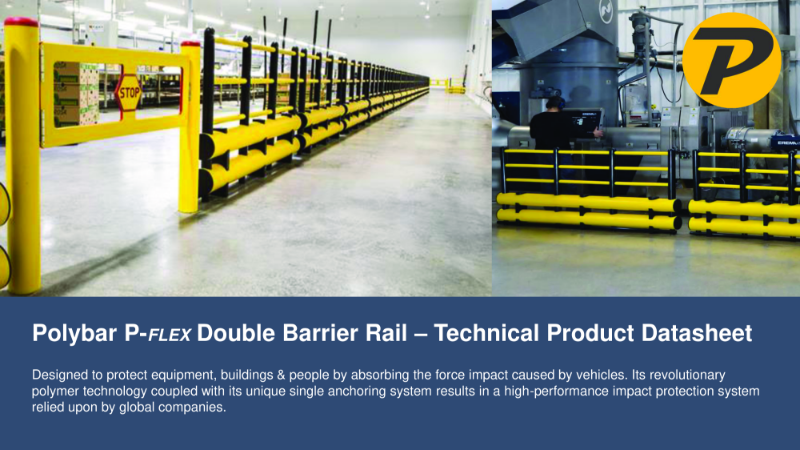

Polybar P-FLEX Double Barrier Rail Technical Data Sheet
