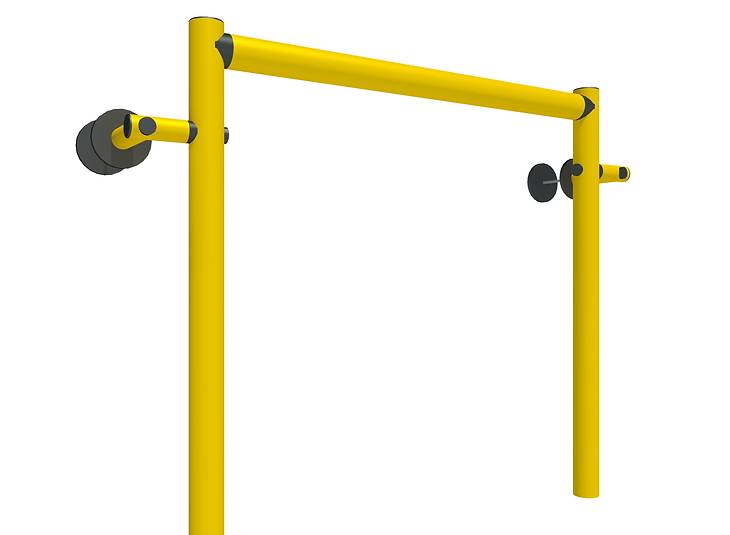

P-FLEX Goalpost - Perimeter Protection System

Verified by manufacturer 3 months ago

Polybar Group

Door perimeter protection system featuring P-FLEX technology.

Jump to:
+353892546217 Website

Application

Suitable for horizontal and vertical door openings.

Description

The P-FLEX Goalpost is designed to offer perimeter protection for internal and external doorways on vehicle traffic zones. It can be secured to walls and also be left free standing and used as a height restrictor with low level protection.


Features and benefits:

  • P-FLEX Technology - a revolutionary high-performance flexible synthetic polymer designed to deflect and safely absorb impacts.
  • Available in multiple lengths and widths.
  • Tailored and manufactured to specific door sizes.
  • Built-in reinforcement arms.
  • Available in yellow (RAL 1021) as standard, and black (RAL 9004) with other non-standard colours available on request.
  • Single 'hidden' steel threaded rod anchoring system.
  • Can be mechanically fixed to a range of substrates including insulated panel systems and concrete walls.
  • Hygienic and easy to clean and maintain
  • Bespoke branding available upon request.
  • Zero exposed steel or risk of exposed corrosion.
  • High resistance against acids, alkali, and solvents.
  • Typically 40% recycled polymer content.
  • 100% recyclable at end-of-life.
  • Tested to BS EN 1186-2:2002 and BS EN 1186-3:2002 for food contact.
  • Tested to BS EN ISO 4892-2:2014 for UV Resistance – Zero Discoloration.
  • Can also be supplied as a height restrictor without reinforcement arms rather than a Goalpost protection system.

General information

Color

Yellow

Black

Other

Finish

Smooth

Material

Polymer

Steel

Shape

Circle

Rectangle

Square

Width

2500 mm

3000 mm

3500 mm

4000 mm

Bespoke

Height

2500 mm

3000 mm

3500 mm

4000 mm

Bespoke

Uniclass

Ss_25_16_94_65 Protective rail systemsPrimary
Pr_30_59_59_38 Height restrictors

CAWS

Q41/230 Height restrictors

Q41/130 Protective barriers

Q41/130 Protective barriers

Specification data - Protective rail systems

System performance

Vehicle security impact.

Mortar bedding

-

Manufacturer guidance

Consult manufacturer and insert requirements or omit.

Rails

High-performance flexible synthetic polymer perimeter rails.

Steel reinforcement

Robust steel rod anchoring system.

Width

2500 mm.

3000 mm.

3500 mm.

4000 mm.

Height

2500 mm.

3000 mm.

3500 mm.

4000 mm.

Colour

Black, RAL 9004.

Yellow, RAL 1021.

Other.

Guidance for specification option:

Other colours are available subject to minimum order size.

Consult manufacturer for details and insert requirements.

Impact resistance

26 900 joules.

Guidance for specification option:

Tested on the core used to anchor the vertical sections and therefore applicable only to low level impacts.

Manufacturer guidance

Dynamic Impact Test.

Tested Impact Energy @ 90°.

Density

0.95 g/cm³.

YieldStress

28 N/mm².

Manufacturer guidance

Yield stress to DIN EN ISO 527.

Elongation at break

300%.

Tensile Modulus

850 MPa.

Manufacturer guidance

Tensile E modulus to DIN EN ISO 527.

Shore Hardness - D

66 N/mm².

Thermal conductivity (maximum)

0.38 W/m.K.

Application temperature range

-100 to +80℃.

Integral accessories

Built-in reinforcement arms.

Sustainability data

Contains Red List materials

No

Country of material origin

Spain

Country of product manufacture

Spain

Material

Polymer

Steel

Recyclability

100% recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

40 %

Guidance for specification option:

Typically 40% recycled polymer content.

Expected Life

40 year

Literature

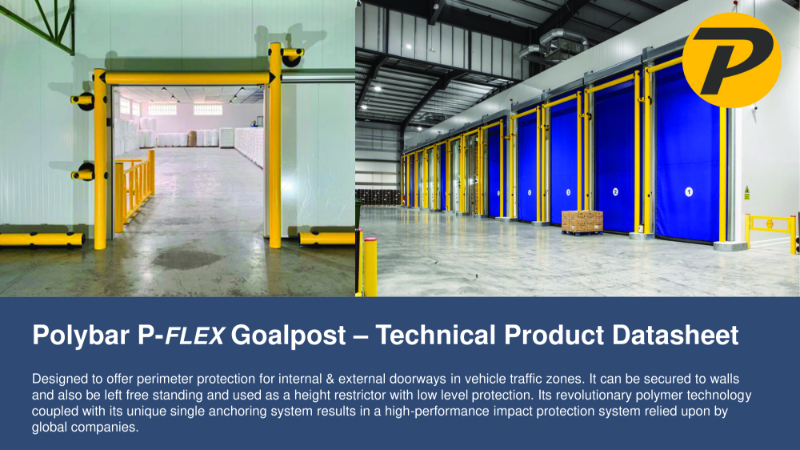

Polybar P-FLEX Goalpost Technical Data Sheet

Polybar P-FLEX Goalpost Technical Data Sheet

Similar products from Polybar Group

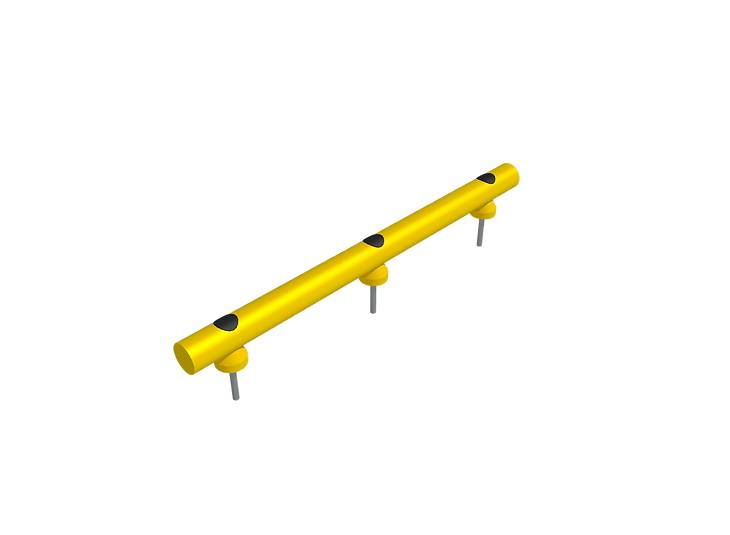

P-Barrier

P-Barrier

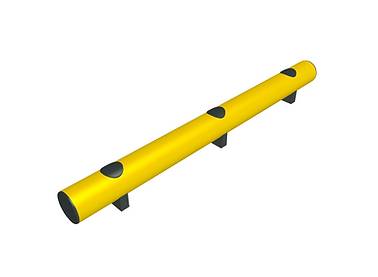

P-FLEX Barrier

P-FLEX Barrier

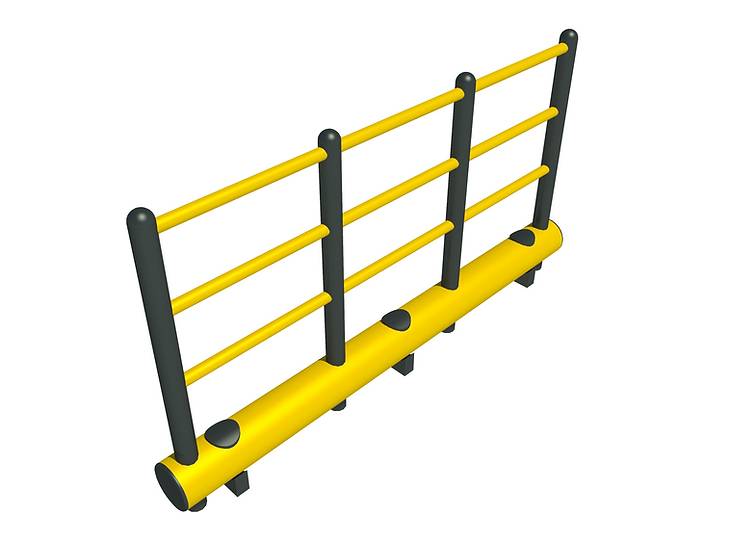

P-FLEX Barrier Rail

P-FLEX Barrier Rail

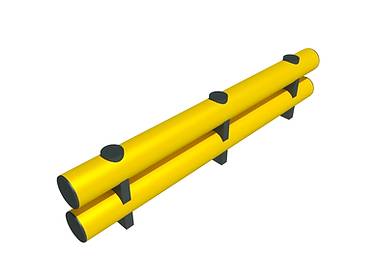

P-FLEX Double Barrier

P-FLEX Double Barrier

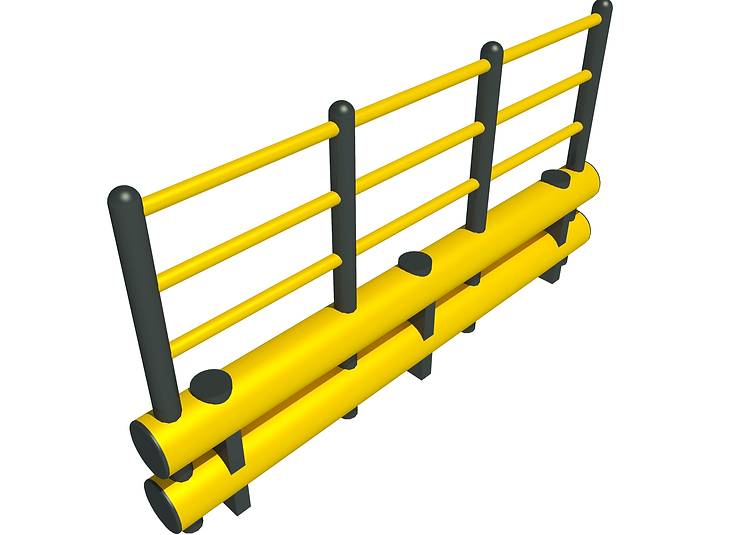

P-FLEX Double Barrier Rail

P-FLEX Double Barrier Rail

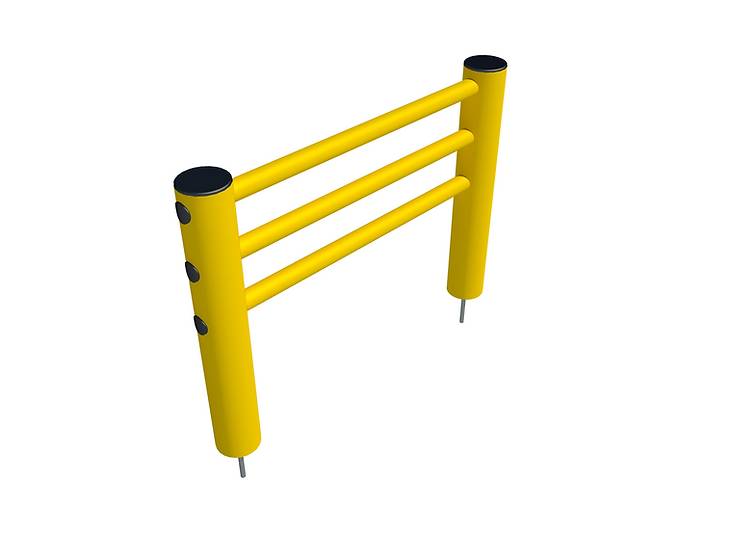

P-FLEX Integrated Rail
