Over Fascia Vent - Eaves Ventilator Strip
Verified by manufacturer 2 months ago

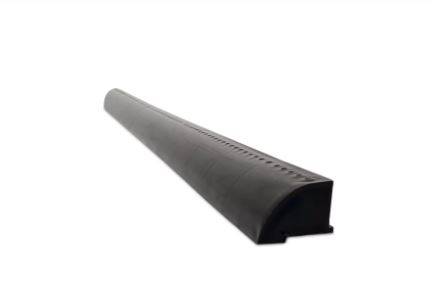

HD 12000M - Over Fascia Vent
HD 12000M - Over Fascia Vent
Over fascia vent, with 10 000mm² or 10 000 and 25 000 mm² airflow.
Application
Provides discreet roofspace ventilation at the lowest level of the roofline. For both new build and refurbishment projects.
Description
Over fascia vent, which provides a through-flow of ventilating air over the fascia board for both new build and roof refurbishment requirements.
Features and benefits:
- Complies with BS 5250 airflow area requirements.
- Conforms to standard grille regulation requirements, preventing the ingress of birds and large insects.
- Rounded front sections prevent the blocking of airflow from overlapping underlay.
- Unique two-stepped fixing position on HD 12000U allows for use on roofs above and below 15° pitch or warm roof applications.
General information
Color | Black |
Material | Polypropylene |
Shape | Other |
Length | 1000 mm |
Width | 33 mm 48 mm |
Height | 19 mm 36 mm |
Warranty description | 20 year |
Uniclass | |
CAWS | H61/47 Eaves H62/47 Eaves H65/47 Eaves H60/365 Detailing at eaves H62/345 Ventilated eaves with integrated grilles tray H61/345 Ventilated eaves with integrated grilles/ trays H60/345 Ventilated eaves with integrated grilles/ trays H65/345 Ventilated eaves – integrated grilles/ trays |
Specification data - Eaves fascia grilles
Style | Fixed to top of fascia. |
Ventilation opening | 10 000 mm²/ m. |
Colour | Black. |
Size: | 1000 x 33 x 10 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 50 % Guidance for specification option: Contains up to 50% recycled PPC. |
Literature
Eaves and Soffit Vents Datasheet
