Solid wood wall panels.

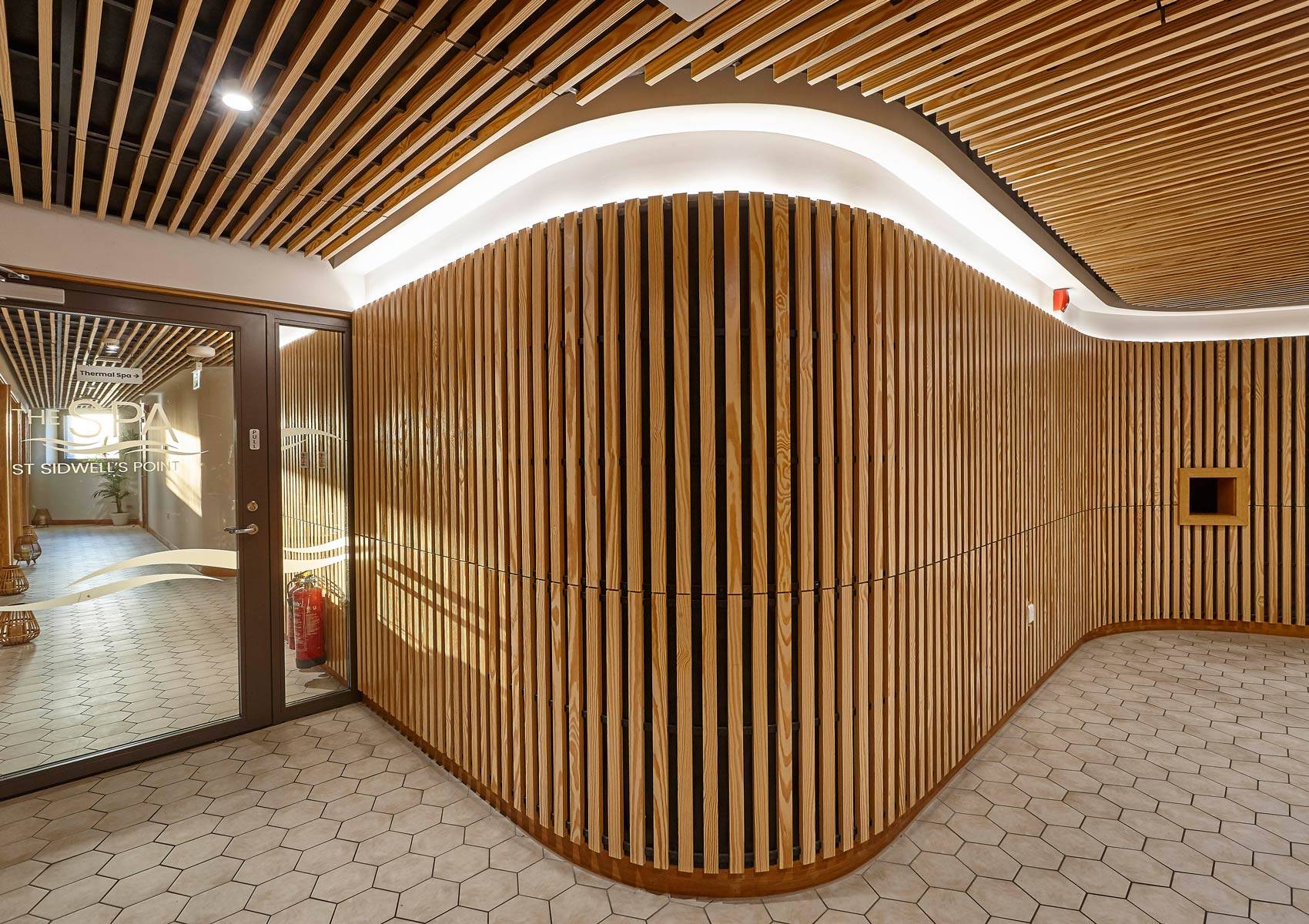

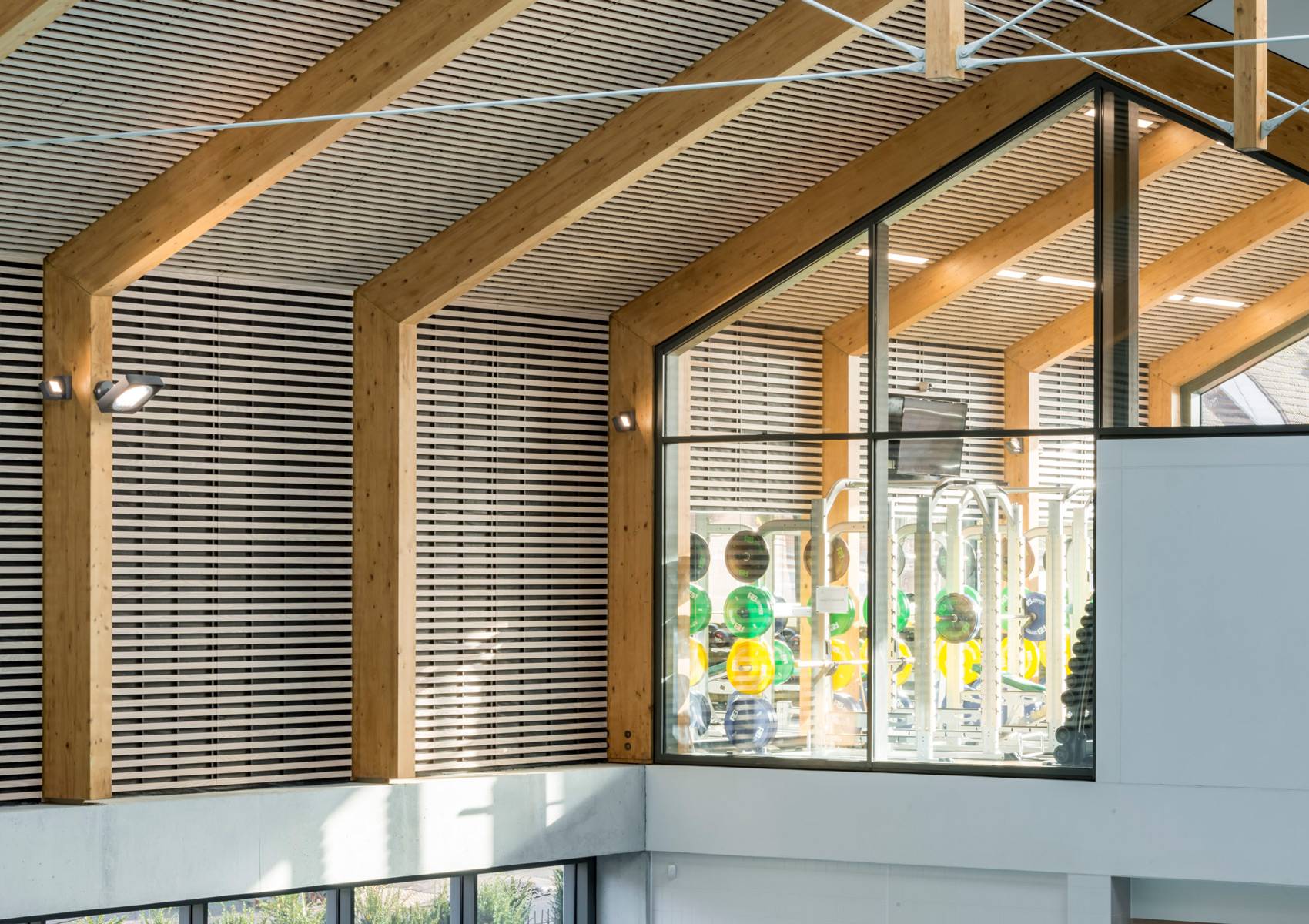

Oranit Shiluvit Panels Walls are solid timber linear panels made in a range of timber species.
Panels can be made in a large range of standard blade modules for a customised appearance with acoustic tests across the range of panel formats and installation styles. The panels are fixed using screws through the crossbars onto a supporting timber grid.
Features and benefits:
Color | Brown Other |
Finish | Varnished Stained Lacquered Painted |
Material | Wood |
Shape | Rectangle |
Length | 600 mm 1200 mm 1800 mm |
Width | 600 mm |
Warranty description | Two year |
Uniclass | |
CAWS | K13/170 Acoustic panel lining K13/170 Acoustic panel lining K13/160 Proprietary K13/160 Proprietary |
SKU Code | 7-330, 7-500, 7-501, 7-501A, 7-502, 7-503, 7-600, 7-601, 7-603, 8-065, 8-080, 8-100, 8-130 |
System performance | Manufacturer guidanceUp to Class A acoustic properties when installed with mineral wool. See brochure and datasheet for details and insert requirements or omit. |
Battens | Manufacturer guidanceInsert requirements. Panels are fixed using screws through the black crossbars onto a supporting timber grid. |
Fasteners | Wood screws. |
Panels | Oranit Shiluvit Linear Wall Panels. |
Finish | Clear varnish. External/ pool lacquer. Staining/ whitewash. Guidance for specification option: Consult manufactuer and insert requirements. |
System accessories | None. LSA Black 20 mm Acoustic Mineral Wool Lining. Guidance for specification option: 1192 x 592 mm. 20 mm thick mineral wool with black felt finish. |
Reaction to fire | To EN 13501-1, Class B-s2, d0. Guidance for specification option: Magma FireStop® SBP-1 applied by vacuum pressure impregnation results in Euroclass B-s2,d0. Full details available upon request. |
Wood species | American yellow pine. Guidance for specification option: PEFC Certified. Nordic pine. Guidance for specification option: PEFC Certified. European beech. Guidance for specification option: PEFC Certified. American yellow poplar. Siberian Larch. |
Slats | 30 x 30 mm. |
Open space | 30 mm. |
Panel dimensions | 600 x 600 mm. 600 x 1200 mm. 600 x 1800 mm. Manufacturer guidanceOther panel sizes and formats are available on request, minimum order quantities and size limits apply. |
Contains Red List materials | No |
Country of material origin | United States |
Country of product manufacture | Israel |
Material | Wood |
Recyclability | Product is demountable and reusable within expected lifespan. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
