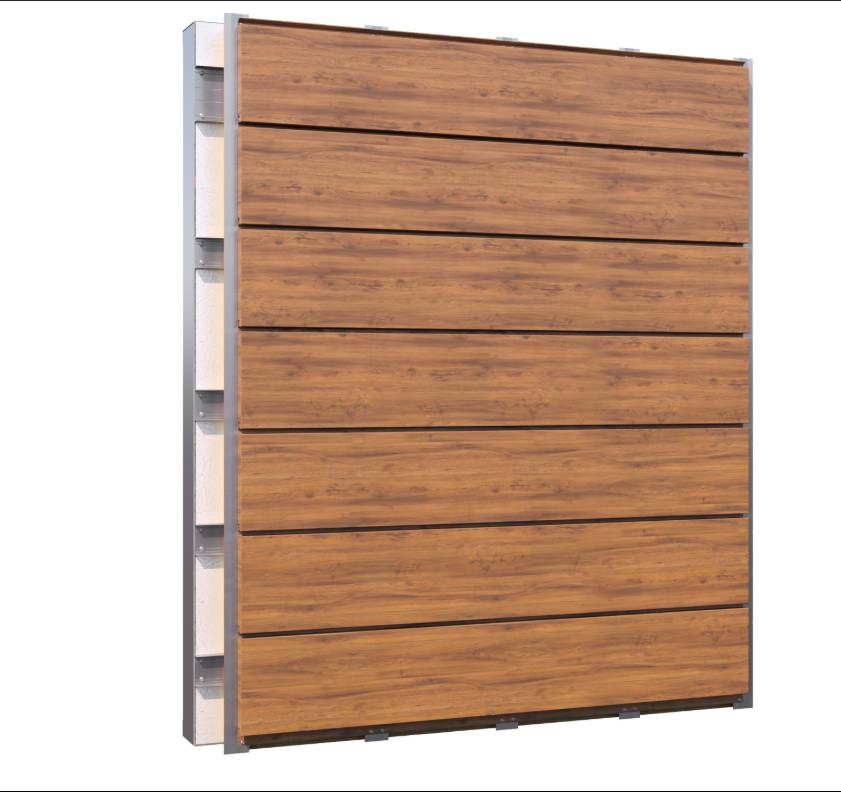

Optima Interlock Pressed Plank Rainscreen Cladding System - Metal Rainscreen Cladding System

Name: Optima Interlock Pressed Plank Rainscreen Cladding System - Metal Rainscreen Cladding System
Brand: Sotech Ltd
SKU: 3Na7J2WywD7oa53BhPmWpX

Verified by manufacturer 14 hours ago

Sotech Ltd

Product certifications:

BRE Certificate
Certificate type
BRE Certificate
Certificate type
BRE Certificate
Certificate type

Rainscreen cladding system featuring interlocking pressed planks and available in a range of material options and recessed or hairline joints.

Jump to:

Request BIM

+44 (0)191 587 9213 Website

Application

Suitable for horizontal, vertical and diagonal applications for a wide range of architectural applications including:

Commercial projects.
Residential projects.
Internal use.
External use.
New builds.
Refurbishments.
Schools.
High-rise buildings.
Other architectural projects.

Description

Rainscreen cladding system featuring interlocking pressed planks and available in a range of material options and recessed or hairline joints.

Features and benefits:

Secret fix installation: the interlocking joints create a smooth, uniform appearance with no exposed fixings, ensuring a clean, modern finish.
Versatile orientation: can be installed horizontally, vertically or diagonally, providing flexibility for different design layouts.
Durability and performance: CWCT, Sequence B tested by UL Solutions.
Enhanced aesthetic and performance: achieves a visually cohesive facade that ensures long-lasting water resistance and structural stability.
No adhesives: uses mechanical fixing methods guaranteeing true A1 or A2 fire-rated performance.
Variety of materials and finishes: available in pre-painted, polyester powder-coated, anodized, corten, zinc, copper and stainless steel finishes.
Lightweight yet rigid: easy to install, minimising structural load while maintaining durability.
Efficient installation: top-down installation method facilitates a streamlined and efficient on-site process.

General information

Color	Beige Black Bronze Blue Copper Brown Cream Green Gold Ivory Grey Pink Orange Red Silver Purple Turquoise White Yellow Other Show more
Finish	Anodized Powder-coated Natural Painted Stainless steel
Material	Aluminium Composite Copper Zinc
Shape	Rectangle
Length	Bespoke
Width	Bespoke
Height	Bespoke

Uniclass	Ss_25_20_70_25 Drained and back-ventilated rainscreen cladding systemsPrimary
CAWS	H92/120 Rainscreen cladding

Specification data - Drained and back-ventilated rainscreen cladding systems

Classification data
Thermal insulation	- Manufacturer guidance Full range of bracket zones to accommodate specified thickness of rockwool insulation. Insert requirements or omit
Breather membrane	-
Material	- Manufacturer guidance By installer; insert requirements or omit.
Fasteners	- Manufacturer guidance By installer; insert requirements or omit.
Secondary support structure	Extruded aluminium framework.
Cavity fire barriers	-
Horizontal	Guidance for specification option: By others, Siderise tends to be used in manufacturer's fire tests. Insert requirements or omit.
Vertical	Guidance for specification option: By others, Siderise tends to be used in manufacturer's fire tests. Insert requirements or omit.
Cladding panels	-
Material	Aluminium, anodized. Guidance for specification option: A1 rated finish. Aluminium, polyester powder-coated. Guidance for specification option: A2 rated finish. Aluminium, pre-painted panels. Guidance for specification option: A1 rated finish. Alpolic A1, aluminium composite finish. Guidance for specification option: A1 rated finish. ACM A2, aluminium composite panel. Guidance for specification option: A2 rated finish. Copper panels. Guidance for specification option: A1 rated material. Stainless steel panels. Guidance for specification option: A1 rated material. Zinc panels. Guidance for specification option: A1 rated material. Corten. Guidance for specification option: Consult manufacturer for fire rating.
Panel joints	Recessed joints. Hairline joints.
Reveals	- Manufacturer guidance Insert requirements or omit.
System accessories	- Manufacturer guidance Consult manufacturer for more details and insert requirements or omit.
Fixings	Wafer head, self tapping stainless steel screws.
Colour	- Manufacturer guidance Wide range of colours available; consult manufacturer for more details and insert requirements.
Orientation	Horizontal. Vertical. Diagonal.
Reaction to fire	- Manufacturer guidance A1 to A2–s1,d0 depending on selection; consult manufacturer for more details and insert requirements.
Third-party certification	Certified to CWCT Sequence B.
