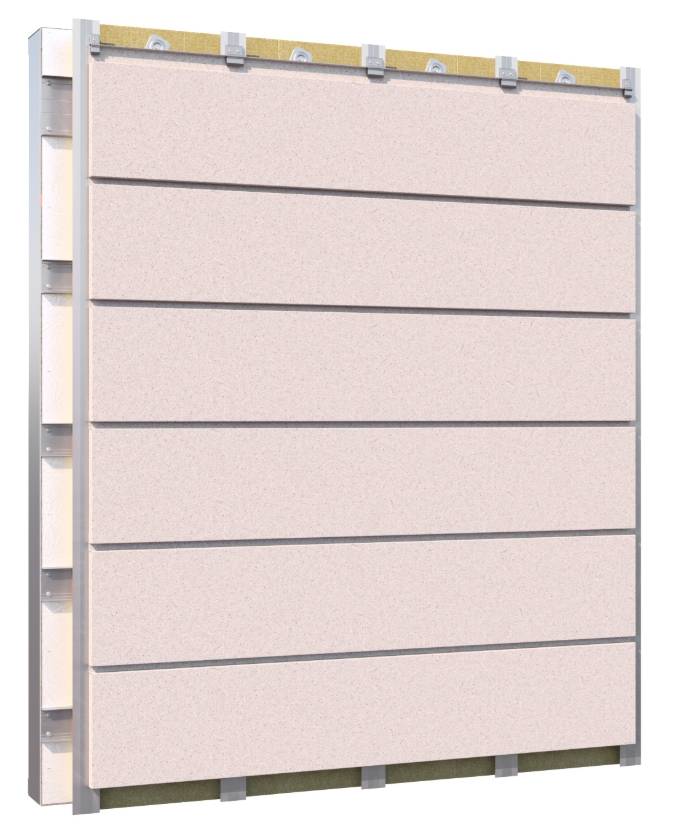

Optima Clip Plank Pressed Rainscreen Cladding System - Metal Rainscreen Cladding System

Name: Optima Clip Plank Pressed Rainscreen Cladding System - Metal Rainscreen Cladding System
Brand: Sotech Ltd
SKU: rABqPdC8TueuX4j2zk9R7

Verified by manufacturer 14 hours ago

Sotech Ltd

Product certifications:

BRE Certificate
Certificate type
BRE Certificate
Certificate type
BRE Certificate
Certificate type

Rainscreen cladding system featuring non-combustible solid aluminium clips, a wide range of folded metal plank options and boasting long-term durability, seamless installation and weather resistance.

Jump to:

Request BIM

+44 (0)191 587 9213 Website

Application

Suitable for horizontal and vertical applications for a wide range of architectural applications.

Description

Pressed plank rainscreen cladding system featuring non-combustible solid aluminium clips, a wide range of folded metal options and boasting long-term durability, seamless installation and weather resistance.

Features and benefits:

Independently tested: certified by UL Solutions to CWCT Sequence B standards for both horizontal and vertical applications.
Modern linear design: creates a sleek and sophisticated facade particularly suitable for contemporary architectural designs.
Bottom-to-top installation: planks seamlessly lock into the clip beneath, ensuring precise alignment and enhanced structural stability.
Flexible compatibility: suitable for both horizontal and vertical subframe support systems.
Mechanical fixing methods: no use of adhesives, providing true A1 and A2 cladding systems.
Wide range of finishes: offered in pre-paint, polyester powder-coated, anodised, corten steel, and stainless steel options.
Versatile sizing: Consult manufacturer's technical team for bespoke sizes to suite projects.

General information

Color	Beige Black Blue Bronze Brown Copper Cream Gold Green Grey Ivory Orange Purple Pink Silver Red Turquoise White Yellow Other Show more
Finish	Anodized Powder-coated Natural Painted Stainless steel
Material	Aluminium Composite Copper Zinc
Shape	Rectangle
Length	Bespoke
Width	Bespoke
Height	Bespoke

Uniclass	Ss_25_20_70_25 Drained and back-ventilated rainscreen cladding systemsPrimary
CAWS	H92/120 Rainscreen cladding

Specification data - Drained and back-ventilated rainscreen cladding systems

Classification data
Thermal insulation	- Manufacturer guidance Full range of bracket zones to accommodate specified thickness of rockwool insulation. Insert requirements or omit.
Breather membrane	-
Material	- Manufacturer guidance By installer; insert requirements or omit.
Fasteners	- Manufacturer guidance By installer; insert requirements or omit.
Secondary support structure	Aluminium support brackets. Aluminium carrier system. Concealed aluminium locking clips.
Cavity fire barriers	-
Horizontal	Guidance for specification option: By others, Siderise tends to be used in manufacturer's fire tests. Insert requirements or omit.
Vertical	Guidance for specification option: By others, Siderise tends to be used in manufacturer's fire tests. Insert requirements or omit.
Cladding panels	-
Material	Aluminium, anodized. Guidance for specification option: A1 rated finish. Aluminium, polyester powder-coated. Guidance for specification option: A2 rated finish. Aluminium, pre-painted panels. Guidance for specification option: A1 rated finish. Alpolic A1, aluminium composite finish. Guidance for specification option: A1 rated finish. ACM A2, aluminium composite panel. Guidance for specification option: A2 rated finish. Copper panels. Guidance for specification option: A1 rated material. Stainless steel panels. Guidance for specification option: A1 rated material. Zinc panels. Guidance for specification option: A1 rated material. Manufacturer guidance Tested thicknesses 1.5–3 mm; consult manufacturer for more details and insert requirements.
Panel joints	Manufacturer's standard.
Reveals	- Manufacturer guidance Insert requirements or omit.
System accessories	- Manufacturer guidance Consult manufacturer for more details and insert requirements or omit.
Fixings	Self-drilling, concealed mechanical fixings.
Colour	- Manufacturer guidance Wide range of colours available; consult manufacturer for more details and insert requirements.
Dimensions	- Manufacturer guidance Tested face heights 150–600 mm in various thicknesses and lengths (maximum 4.9 m long). Consult manufacturer for bespoke sizes and insert requirements.
Orientation	Horizontal. Vertical.
Reaction to fire	- Manufacturer guidance A1 to A2 depending on selection; consult manufacturer for more details and insert requirements.
Third-party certification	Certified to CWCT Sequence B.
