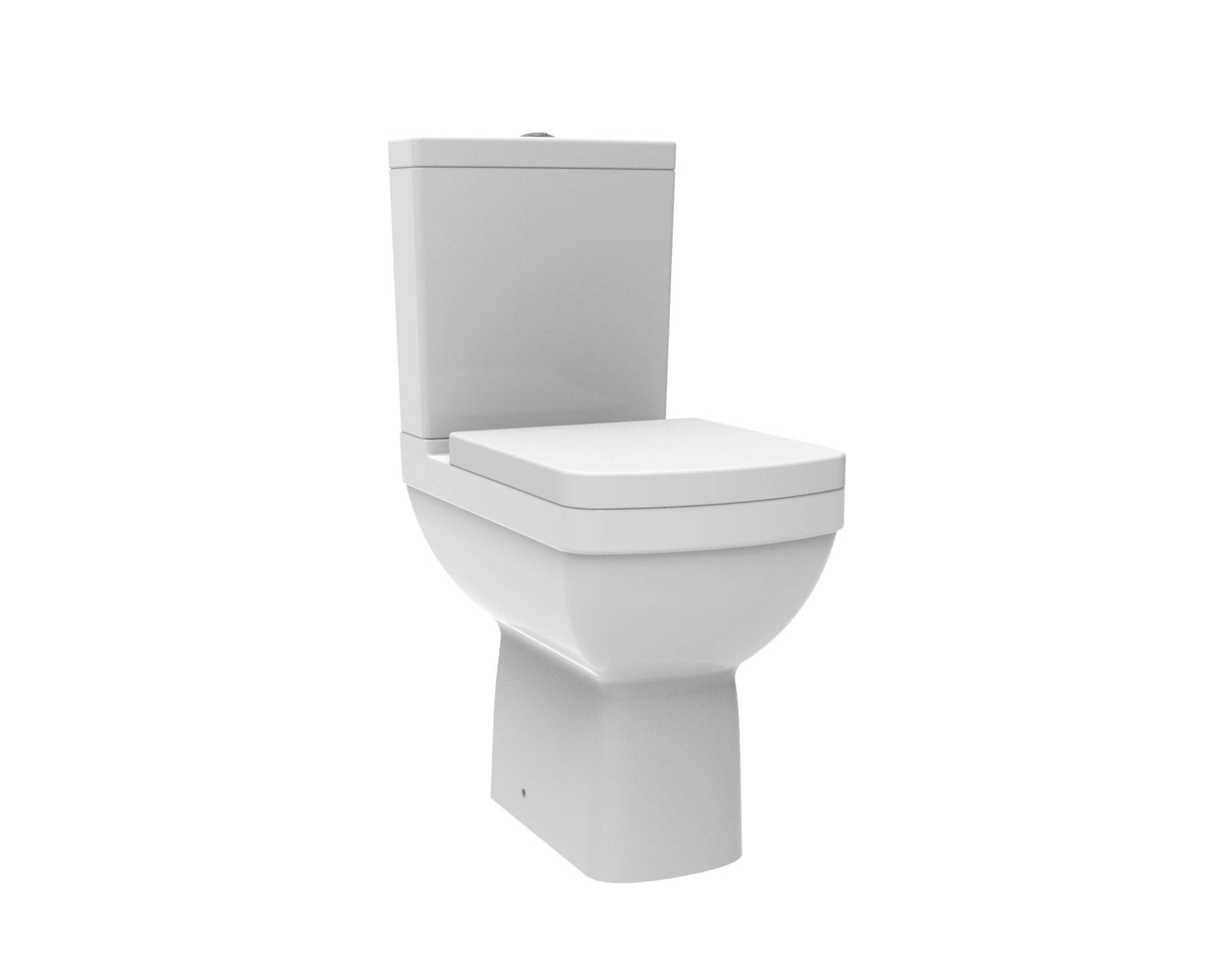

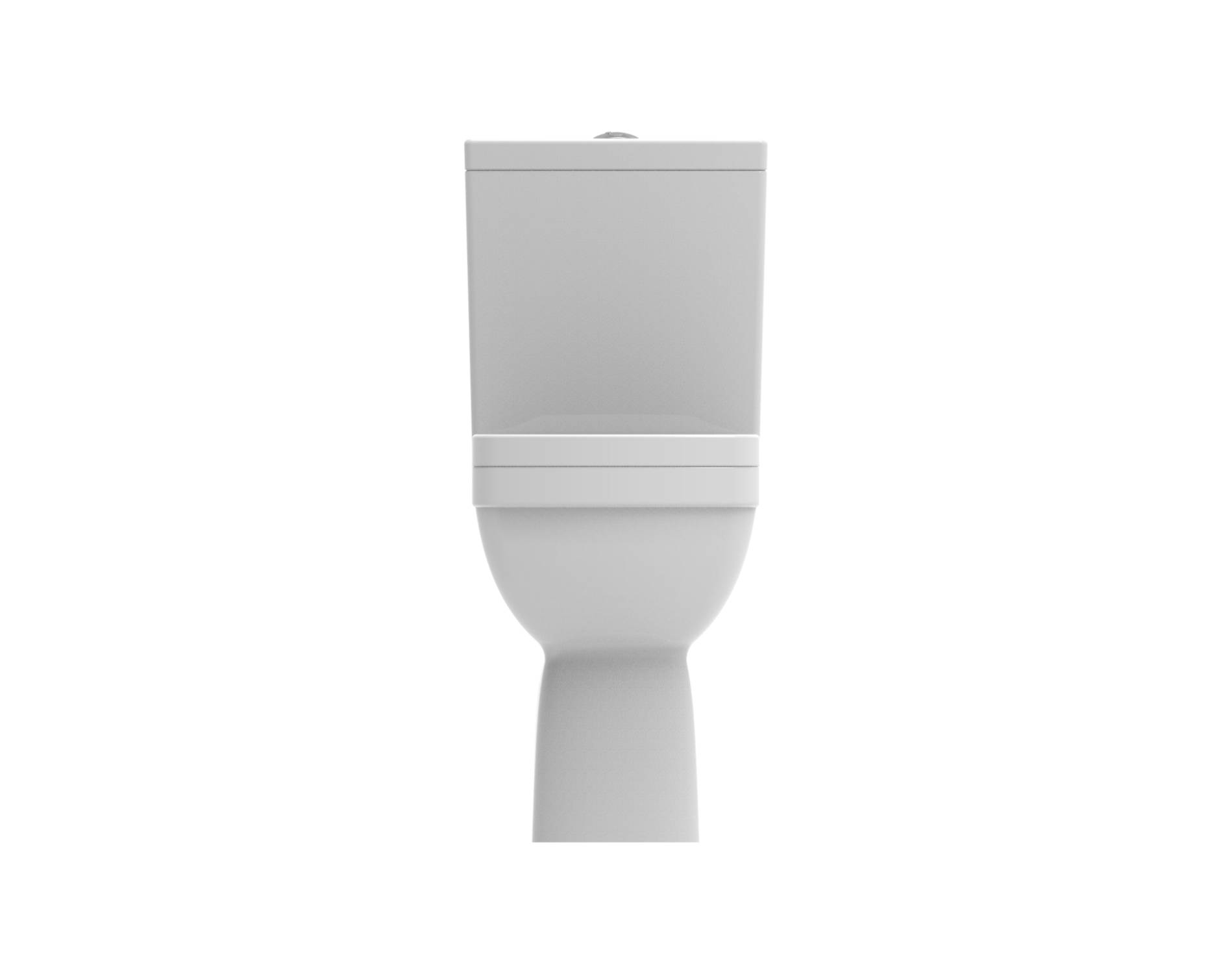

Minuto Comfort Height - WC Suite
Verified by manufacturer 8 months ago
Close coupled WC pan, cistern with WRAS approved push button fitting and slow close seat.
Application
Suitable for close-coupled WC-suites.
Description
Made with comfort in mind, this WC has a raised height of 470 mm and a short projection, and is made from high quality vitreous china.
Features and benefits:
- Minuto comfort height close coupled WC pan.
- Minuto cistern with WRAS approved push button fitting.
- Minuto slow close seat with one push button.
General information
Color | White |
Material | Vitreous china |
Shape | Other |
Length | 600 mm |
Width | 395 mm |
Height | 880 mm |
Uniclass | |
CAWS | N13/302 WCs and flushing valves N13/300 WCs and cisterns N13/10 WC pans and flushing arrangements |
Specification data - WC suites
Standards | |
Cisterns | To BS EN 997, Class 2. |
Pans | To BS EN 997, Class 2. |
Approvals | Water Regulations Approval Scheme (WRAS)-approved. |
Form | Close-coupled WC pan and cistern. |
Connecting dimensions | To BS EN 33. |
Materials | |
Body | Vitreous china. |
Finish and colour | White. |
Sizes | |
Cistern capacity | 6/4 L dual flush. |
Pan height | 470 mm. |
Integral accessories | Minuto slow close seat with one push button.Guidance for specification option: 1510.1.PB.BW. |
Total height | 880 mm. |
Projection | 600 mm. |
Width | 395 mm. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
Minuto Comfort WC Pan and Cistern- Technical Drawing
Minuto Comfort - Datasheet
Minuto Slow Close Seat with One Push Button - Technical Drawing
