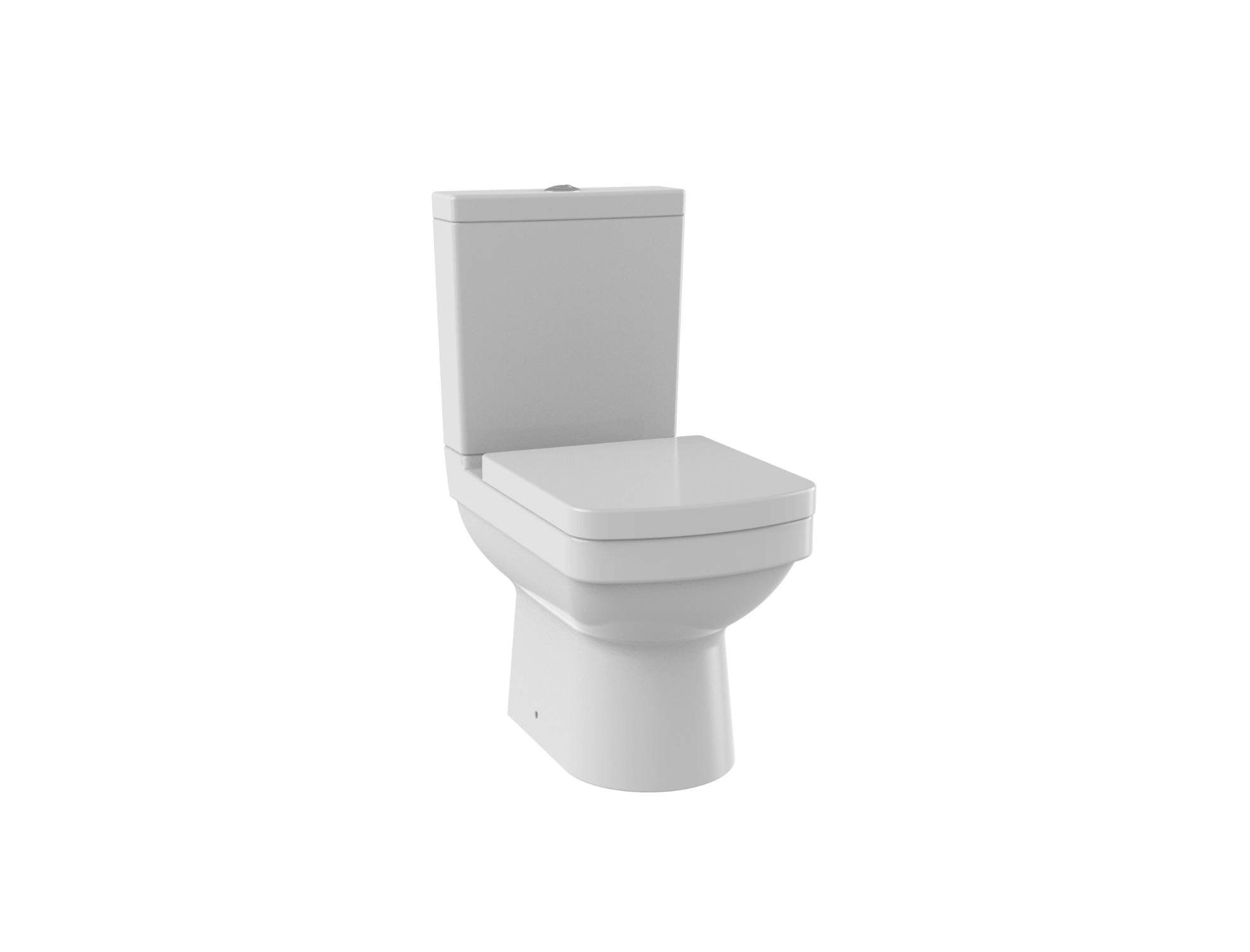

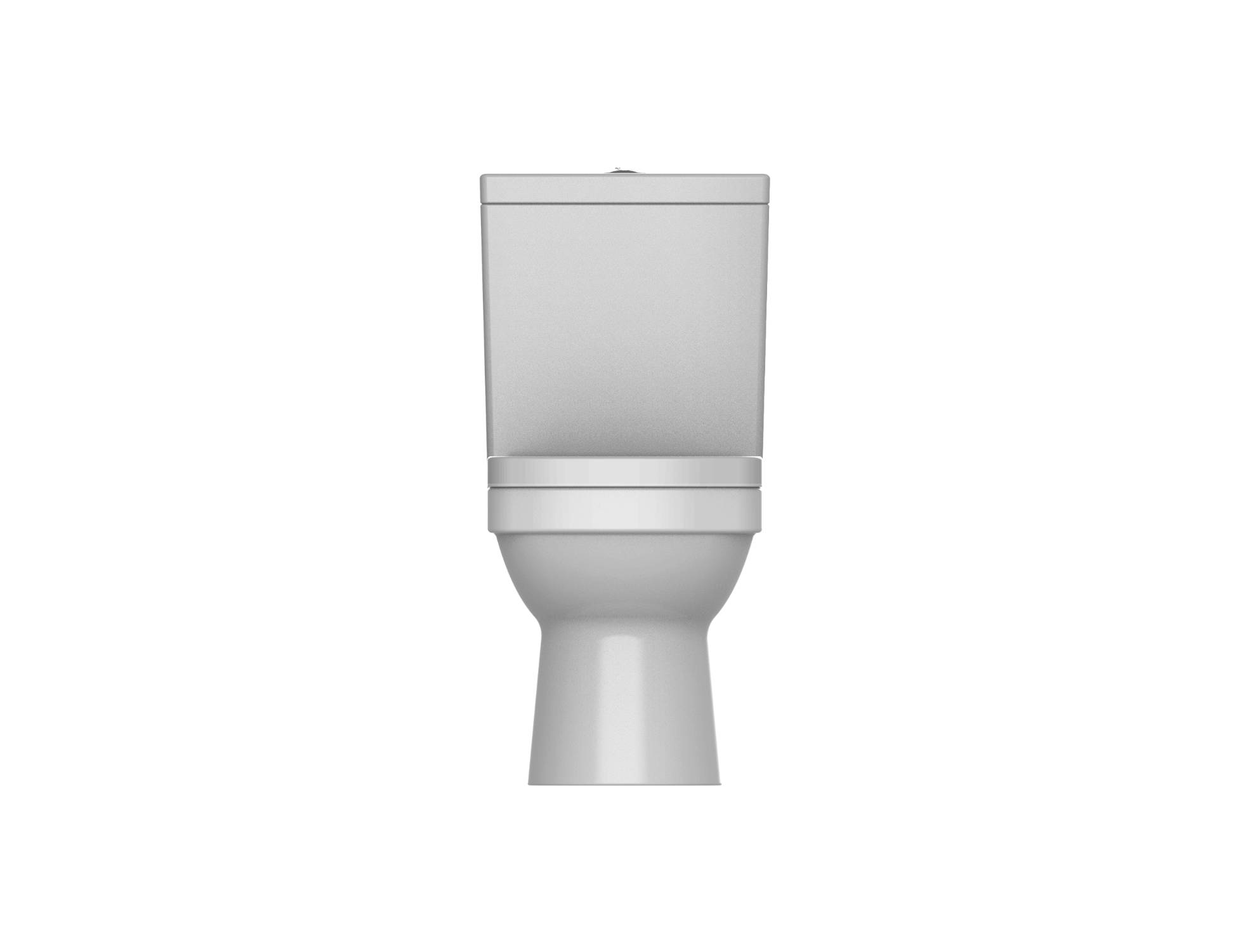

Minuto Close Coupled WC - WC Suite
Verified by manufacturer 4 months ago
Close coupled WC pan, cistern with WRAS approved push button fitting and slow close seat.
Application
Suitable for close-coupled WC-suites.
Description
A close coupled WC with super short projection, featuring a fitted soft close seat and a high quality glaze.
Features and benefits:
- Minuto close coupled WC pan.
- Minuto slow close seat with one push button.
- Minuto cistern with push button.
General information
Color | White |
Material | Vitreous china |
Shape | Other |
Length | 600 mm |
Width | 395 mm |
Height | 800 mm |
Uniclass | |
CAWS | N13/302 WCs and flushing valves N13/300 WCs and cisterns N13/10 WC pans and flushing arrangements |
Specification data - WC suites
Standards | |
Cisterns | To BS EN 997, Class 2. |
Pans | To BS EN 997, Class 2. |
Approvals | Water Regulations Approval Scheme (WRAS)-approved. |
Form | Close-coupled WC pan and cistern. |
Connecting dimensions | To BS EN 33. |
Materials | |
Body | Vitreous china. |
Finish and colour | White. |
Sizes | |
Cistern capacity | 6/4 L dual flush. |
Pan height | 390 mm. |
Integral accessories | Minuto slow close seat with one push button.Guidance for specification option: 1510.1.PB.BW. |
Total height | 800 mm. |
Projection | 600 mm. |
Width | 395 mm. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
Minuto Slow Close Seat with One Push Button - Technical Drawing
Minuto Close Coupled WC and Cistern - Technical Drawing
