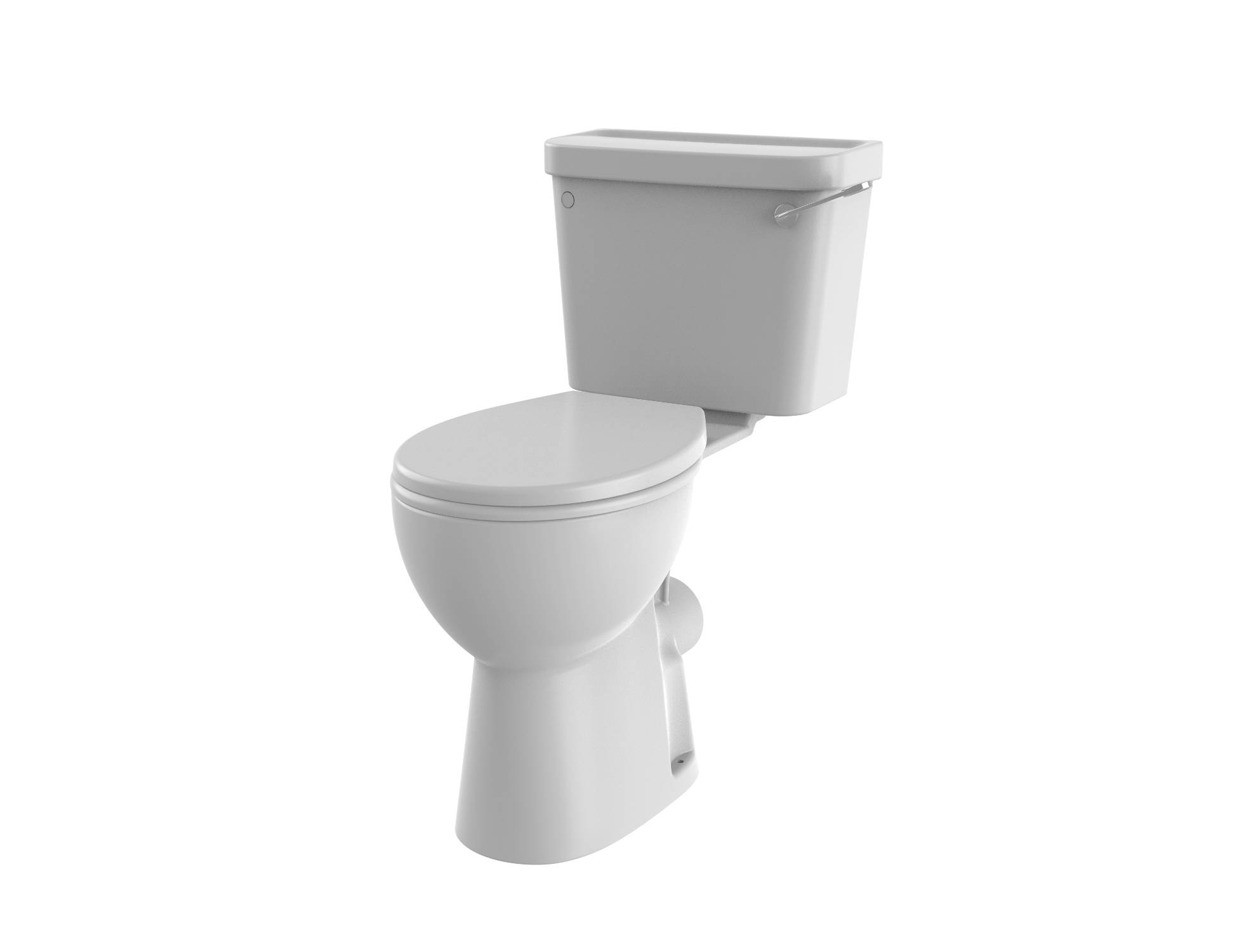

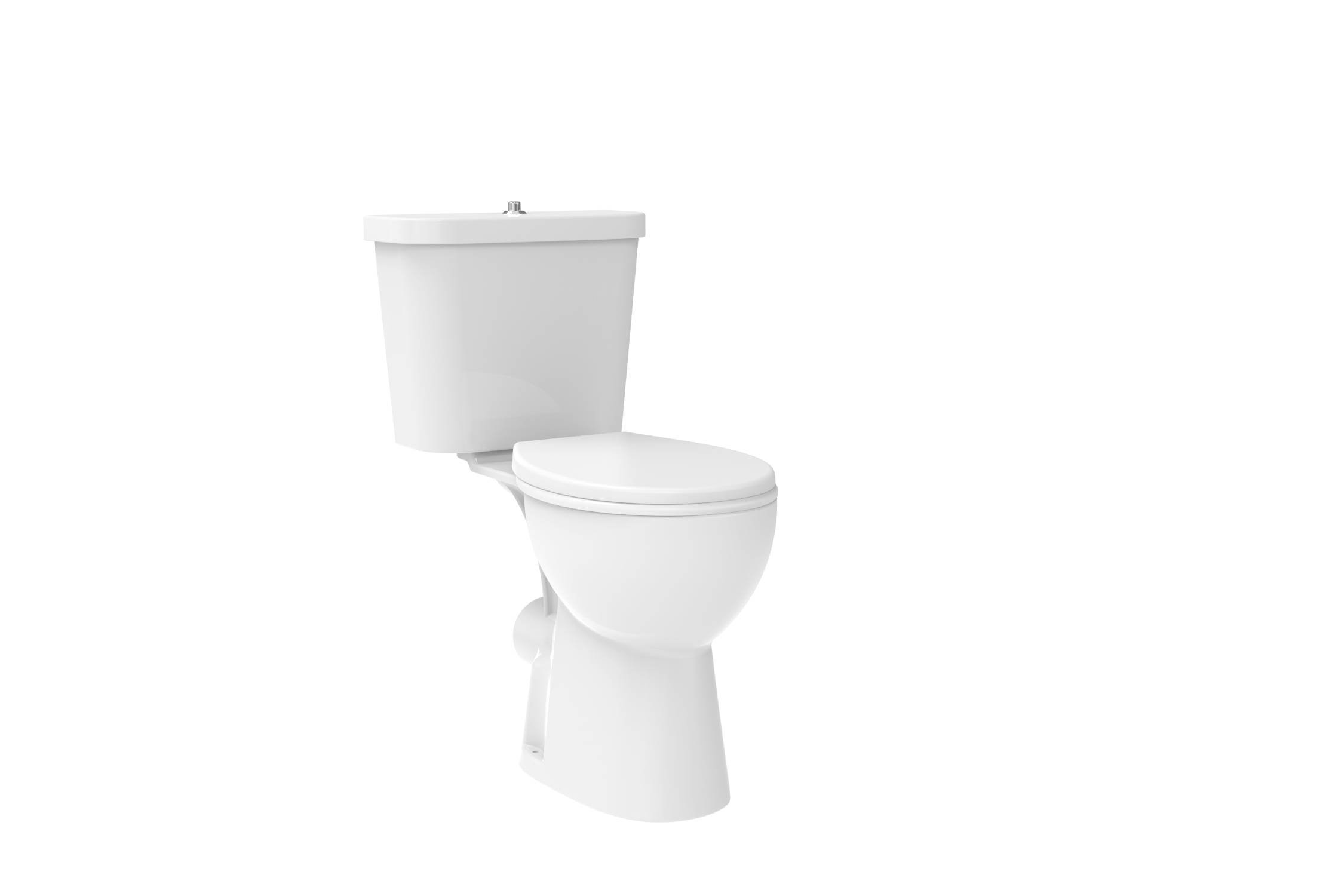

i.Care 710 Doc M C/C Comfort Height WC Pan Rimless

Name: i.Care 710 Doc M C/C Comfort Height WC Pan Rimless
Brand: Balmorals London Limited
SKU: bucEs9uc2f77TePjEpqwNQ

Verified by manufacturer 4 months ago

1903.C.L.00.BW - I.Care DOCM C/C Cistern With WRAS Approved

Balmorals London Limited

Rimless WC pan and cistern.

Jump to:

BOS

+44020 3697 1787 Website

Application

Suitable for close-coupled WC-suites.

Description

Rimless WC pan, cistern with WRAS approved push button fitting or lever handle.

General information

Color	White
Material	Ceramic
Shape	Other
Length	710 mm Guidance for specification option: WC Pan. 195 mm Guidance for specification option: Cistern.
Width	365 mm Guidance for specification option: WC Pan. 460 mm Guidance for specification option: Cistern.
Height	470 mm Guidance for specification option: WC Pan. 367 mm Guidance for specification option: Cistern.

Uniclass	Pr_40_20_93_97 WC suitesPrimary
CAWS	N13/311 Unisex accessible WC equipment packages (Document M) N13/12 Unisex accessible WC equipment packages (Document M) N13/302 WCs and flushing valves N13/300 WCs and cisterns N13/10 WC pans and flushing arrangements

Specification data - WC suites

Standards	-
Cisterns	To BS EN 997, Class 2.
Pans	To BS EN 997, Class 2.
Approvals	Water Regulations Approval Scheme (WRAS)-approved.
Form	Back-to-wall WC pan and cistern.
Connecting dimensions	To BS EN 33.
Materials	-
Body	Ceramic.
Finish and colour	Euro white.
Sizes	-
Cistern capacity	6 L.
Pan height	470 mm.
Integral accessories	1910.BW - I.Care Slow Close Seat & Cover (Bright White).

Projection	710 mm.
Width	460 mm.
Automation	Manual, handle.

BIM objects

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform	Compatible	Version
Revit	-	1
IFC	-	1

Literature

I.Care DOCM C/C WC Pan New Rimless

I.Care DOCM C/C WC Pan Rimless
