Michelangelo BT - Automatic Barrier
Verified by manufacturer 1 month ago
Michelangelo BT 60
Michelangelo BT 60
CE Marking
Certificate type
A mid level automatic barrier.
Application
Automatic barrier designed for continuous and frequent use
Description

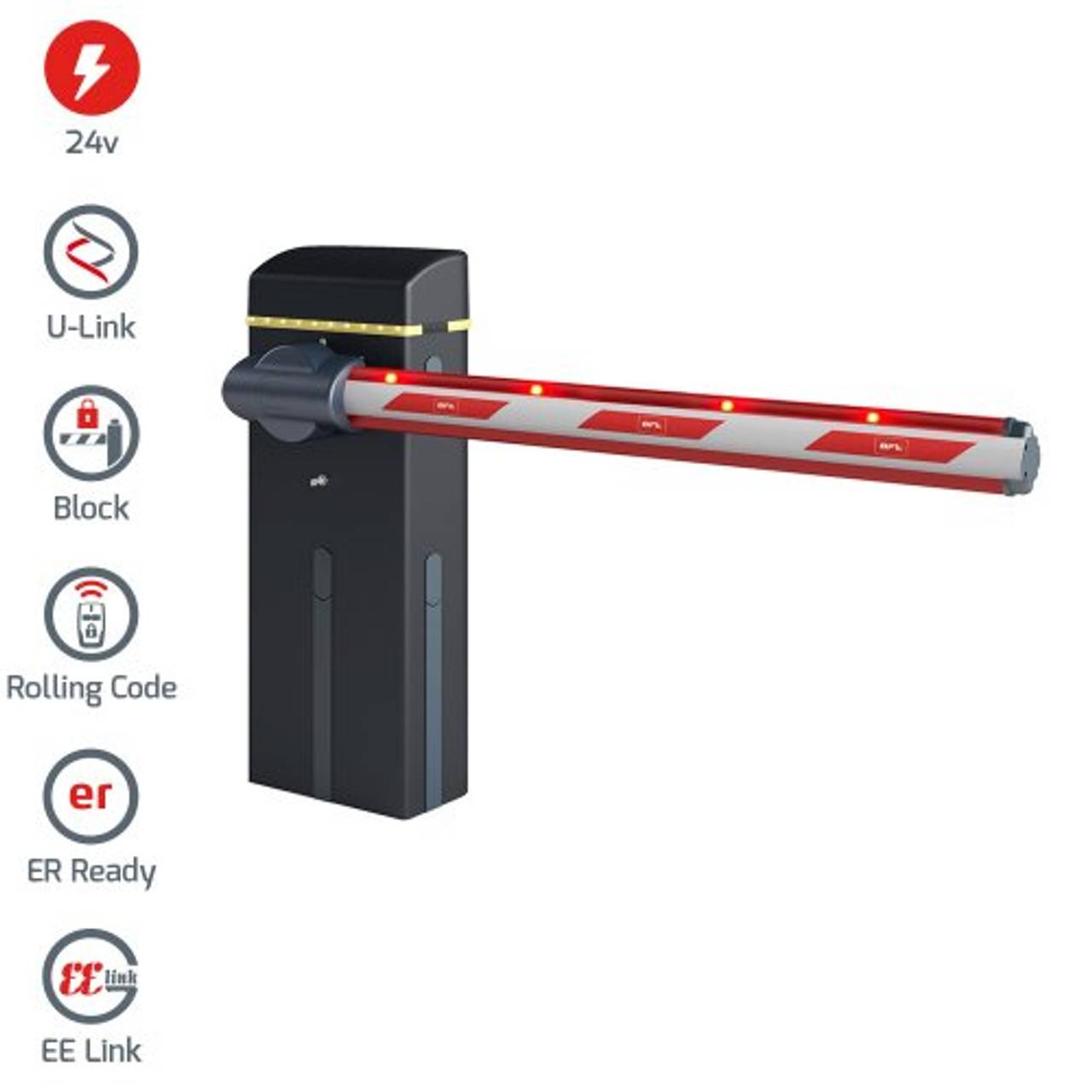

The Michelangelo BT A80 24v is mid-level barrier for intensive usage, it is suitable for clear drive through gaps of up to 8m. The wide range of accessories, option for a built-in flashing light around the cabinet and simple system for installing photocells makes them suitable for virtually any environment.
Features and benefits
- Control panel with programming display and compatible with U-Link.
- IP54 protection.
- Built-in dual-channel radio receiver.
- The barrier is available with an optional backup battery power supply system which can be installed inside the cabinet.
General information
Color | Black Red White |
Finish | Powder-coated |
Material | Aluminium |
Shape | Other |
Length | 6000 mm 8000 mm |
Width | 460 mm |
Height | 1200 mm |
Warranty description | Two year |
Uniclass | |
CAWS | Q41/190 Vehicle access point barriers |
Specification data - Rising arm vehicular barriers
Method of operation | Barrier control unit.Guidance for specification option: Keypad, transmitter, loop detector, tag. |
Span | 6000 mm. |
Posts | Beam fork support.Pogo stick support. |
Arms | |
Type | Solid profile lifting pole. |
Material | Aluminium. |
Finish as delivered | |
Colour | As supplied. |
Accessories | LED boom lights.None. |
Control | Electronic. |
Operating time | 6 seconds. |
Power supply | 24 v. Guidance for specification option: 230v with transformer built in to take it down to 24 v. |
Lock | Mechanical. |
Ingress protection | IP54. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Italy |
Country of product manufacture | Italy |
Third party certifications
CE Marking
Declaration of conformity Michelangelo
Literature
Michelangelo
