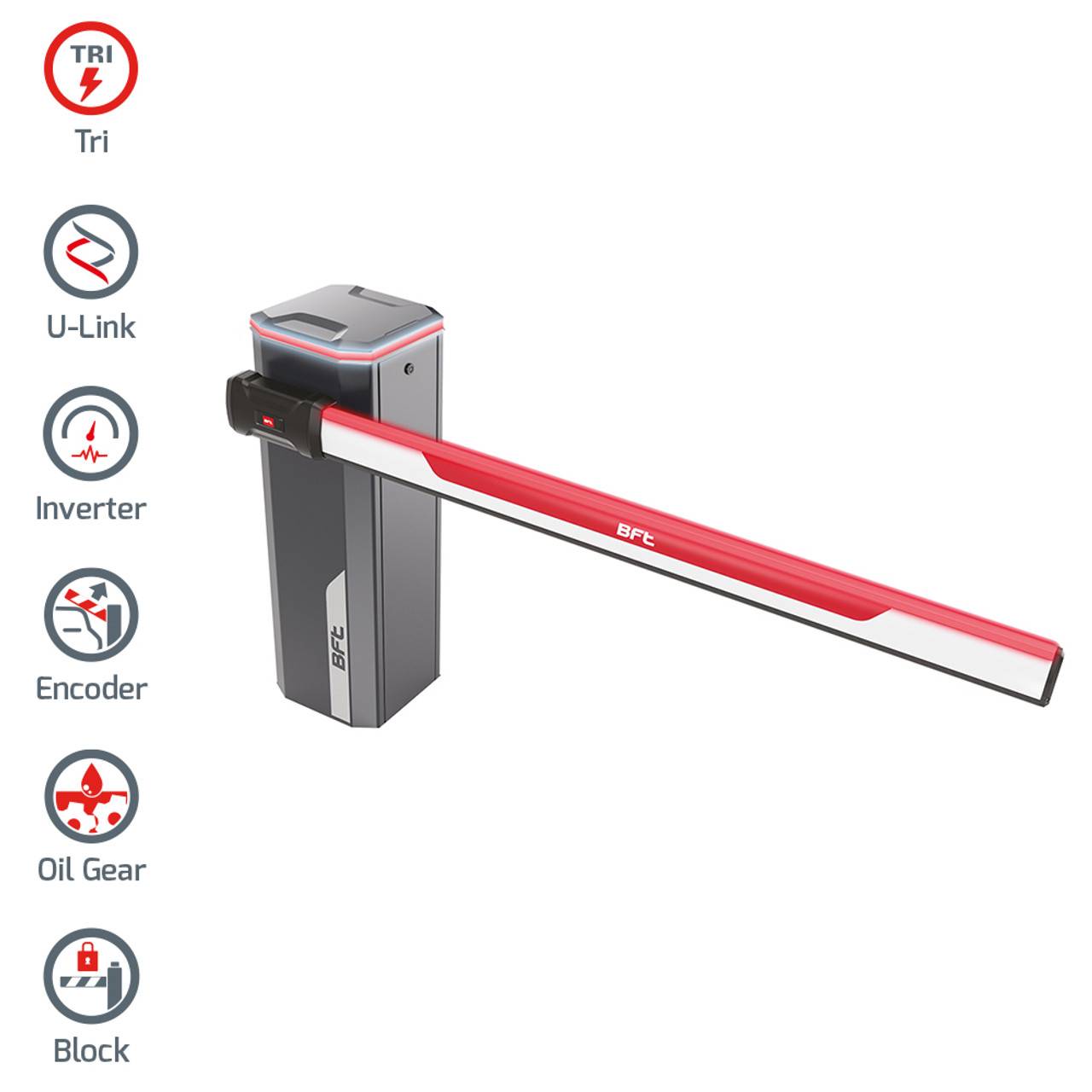

Maxima Ultra 36 - Automatic Barrier

Verified by manufacturer 1 month ago

BFT Automation UK Limited Third party certifications:
  • CE Marking

    Certificate type

The Maxima Ultra 36 is a automatic barrier suitable for clear drive through gaps from 2 to 5 meters.

Jump to:
+447874877863 Website

Application

Automatic barrier intended to operate in a wide variety of environments such as large car parks, motorway tolls, industrial sites.

Description

The Maxima Ultra 36 is a automatic barrier suitable for clear drive through gaps from 2 to 5 meters. Intended to operate in a wide variety of environments such as large car parks, motorway tolls, industrial sites.


Features and benefits:

  • Manage openings up to 6 meters.
  • Soft opening and closing.
  • Three phase motor for very intensive high traffic.
  • U-link compatible enabling integration with parking and building management systems.
  • Anti-vandal protection.
  • Mechanical crankshaft, delivering fluid movement for the boom whilst controlling soft opening and closing.
  • Oil bath gear motor.

General information

Color

Finish

Powder-coated

Material

Stainless steel

Shape

Other

Length

Bespoke

Width

493 mm

Height

1030 mm

Warranty description

Two year

Uniclass

Pr_30_59_59_72 Rising arm vehicular barriersPrimary

CAWS

Q41/190 Vehicle access point barriers

Specification data - Rising arm vehicular barriers

Method of operation

Barrier control unit.

Span

5000 mm.

6000 mm.

Manufacturer guidance

Span can bespoke dependent on requirements minimum span 2 meters, maximum span 6 meters.

Posts

Pogo stick support.

None.

Arms

-

Type

Solid profile lifting pole.

Material

Stainless steel.

Skirt

-

Configuration

Bottom only.

None.

Type

Rigid skirt.

None.

Finish as delivered

-

Colour

As supplied.

Accessories

Light kit.

None.

Usage

20000 movements per day.

Guidance for specification option:

At 3 meter arm span.

5000 movements per day.

Guidance for specification option:

At 6 meter arm span.

Operating time

3.9 seconds.

Motor type

Asynchronous three-phase motor.

Power supply

230 V.

Ingress protection

IP54.

Lock

Mechanical.

Sustainability data

Contains Red List materials

No

Country of material origin

Italy

Country of product manufacture

Italy

Third party certifications

CE Marking

CE Marking

Declaration of conformity

Literature

Maxima Ultra 36

Maxima Ultra 36
