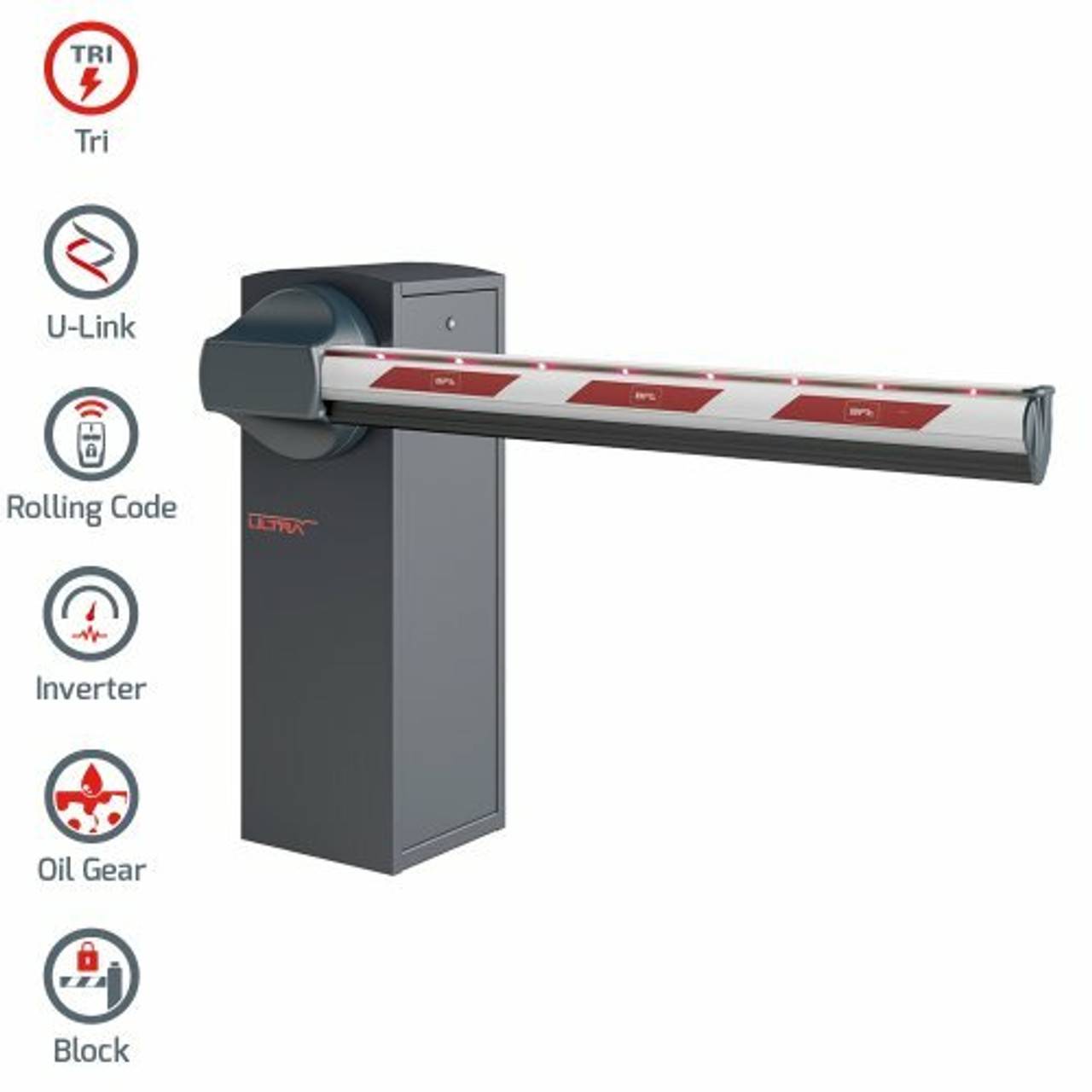

Maxima Ultra 68 - Automatic Barrier
Verified by manufacturer 1 month ago
CE Marking
Certificate type
An automatic barrier for large scale secure sites.
Application
Automatic barrier suitable for car parks, industrial sties, tolls and many other large scale secure sites.
Description
The Maxima Ultra 68 automatic barrier is a multi-purpose heavy system system suitable for car parks, industrial sties, tolls and many other large scale secure sites. With a drive through gap of between 4 to 8 meters, the Maxima Ultra has a electro mechanical barrier system. It is capable of operating in adverse weather and temperature environments.
The entire barrier system is also compatible with BFT’s U-LINK system, allowing you to link all the automation products into a single PC-based control platform. The Maxima Ultra 68 is powered by the BFT CSB-Xtreme, a control panel dedicated to serving three-phase motor-powered barriers.
Features and benefits:
- Capable of 30,000 cycles per day.
- Robust metal outer casing.
- Handles temperature extremes from -30 to +60 degrees.
- IP54 level protection.
- Single crank machine mechanism.
- Mechanical locking system.
- Impact reaction for opening and closing.
- U-link compatible.
- Integrated heater for low temperatures.
General information
Color | Grey White Red Blue Black |
Finish | Powder-coated |
Material | Carbon steel |
Shape | Other |
Length | 5000 mm 6000 mm 8000 mm 4000 mm |
Width | 590 mm |
Height | 1155 mm |
Warranty description | Two year |
Uniclass | |
CAWS | Q41/190 Vehicle access point barriers |
Specification data - Rising arm vehicular barriers
Method of operation | Barrier control unit. |
Span | 8000 mm.Guidance for specification option: Available span from 4000 mm to 8000 mm. |
Arms | |
Type | Solid profile lifting pole. |
Skirt | |
Configuration | Bottom only. |
Type | Rigid skirt. |
Finish as delivered | |
Colour | As supplied. |
Accessories | Spring.LED light Kit.None. |
Usage | 30000 movements per day. |
Operating time | 6 seconds. |
Motor type | Three phase induction. |
Power supply | 230 V. |
Ingress protection | IP54. |
Lock | Mechanical. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Italy |
Country of product manufacture | Italy |
Third party certifications
CE Marking
Declaration of conformity MU68
Literature
Maxima Ultra 68
