MFT-FOX VI-2L-SZ-20 - Ventilated Facade

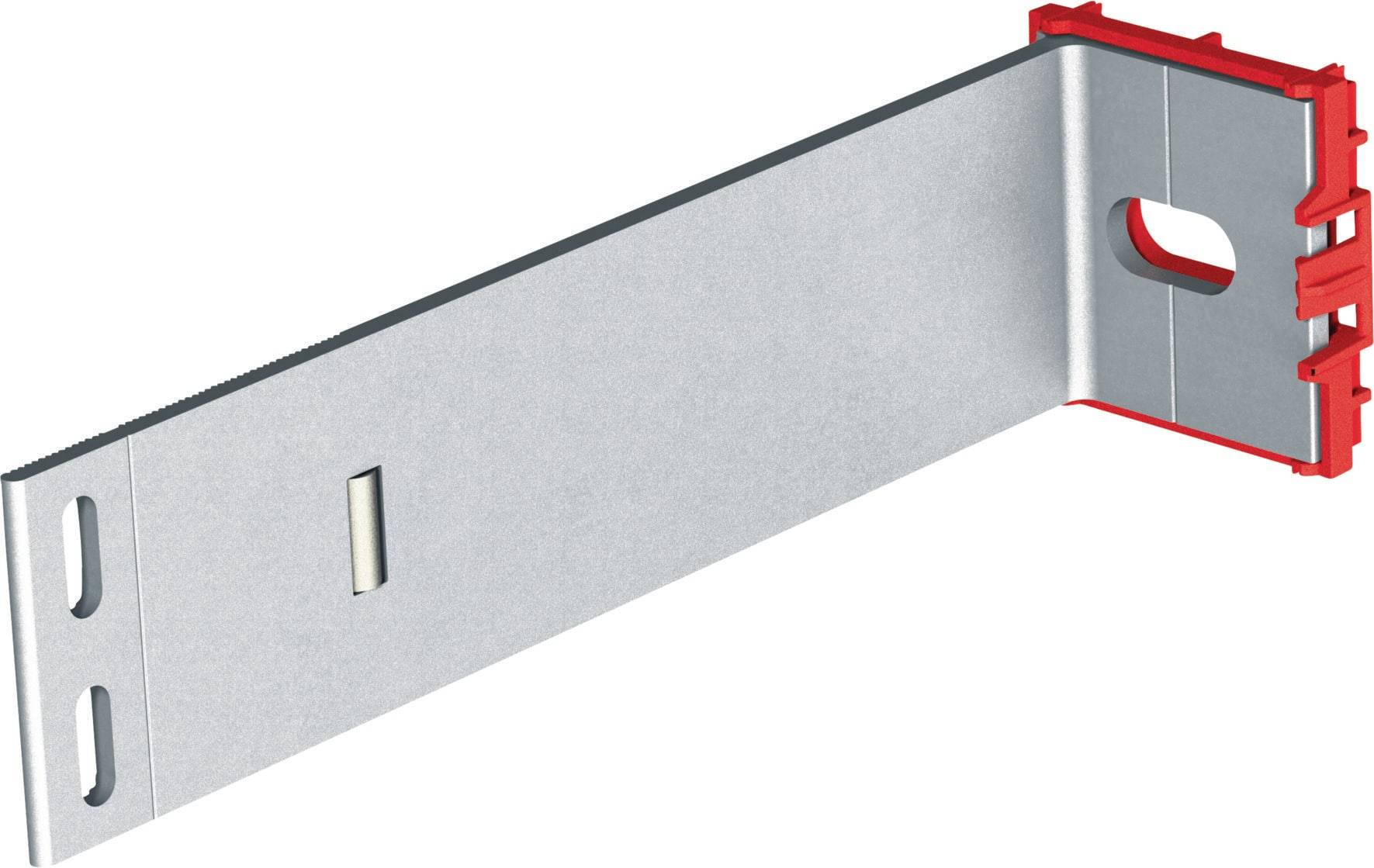

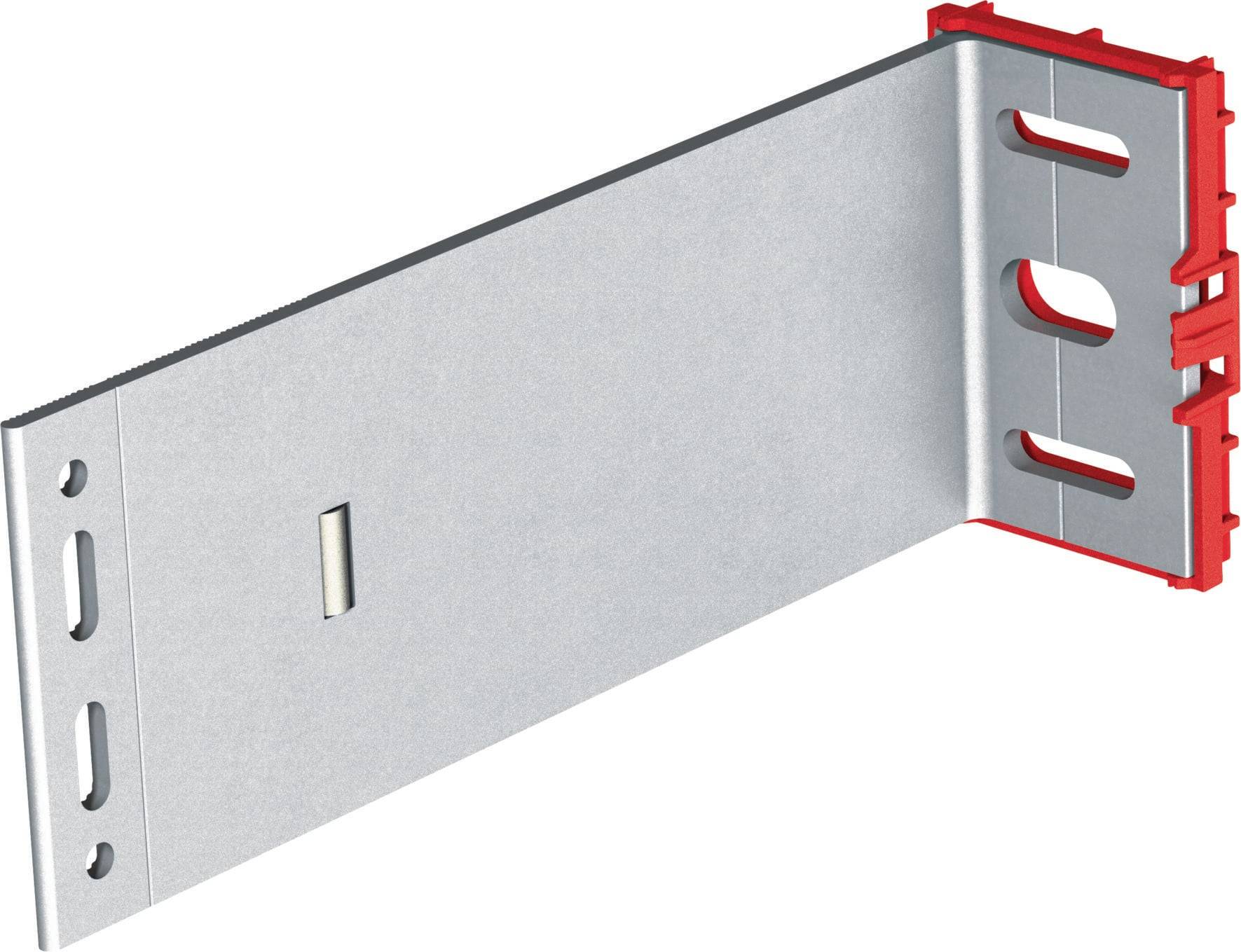

The Ventilated Façade two layer system consists vertical/ horizontal aluminium profiles and the aluminium brackets, MFT-FOX VI. The system is specifically designed for vertical/ horizontal substructures with horizontal system profiles for fastening ACM cassettes in ventilated facades. The aluminium brackets, MFT-FOX VI, are designed with both fixed and flexible points to allow for thermal expansion of the profile.

The vertical profiles are fastened to the aluminium brackets, MFT-FOX VI, with specially designed stainless steel screws, to allow movement of the profiles relative to the brackets due to flexible points, and to keep the profile connected to the brackets due to the fixed points. The horizontal profiles (Start, S and Z) are fastened to the vertical substructure with stainless steel screws. The system profiles allow the cassettes to be fastened with a shadow gap.

Features and benefits:

• Flexible design using fixed and flexible points.
• 40 mm adjustment capability of the profiles on the brackets.
• Bracket length with ISO from 40 mm to 300 mm.
• Three different sizes in 20 mm increments each size (large, medium and small).
• Brackets can be installed using a range of methods —anchors, screws and direct fastening.
• Aluminium brackets and profiles according to EN 755-2; EN 573-3; EN 12020-2; EN 1090-3; EN AW 6063 T66 and EN 1090.
• Thermal Bridge Calculation in accordance with EN ISO 10211-1.
