Freestanding awning with posts secured to stabilisation boxes and up to 7 m wide frame.

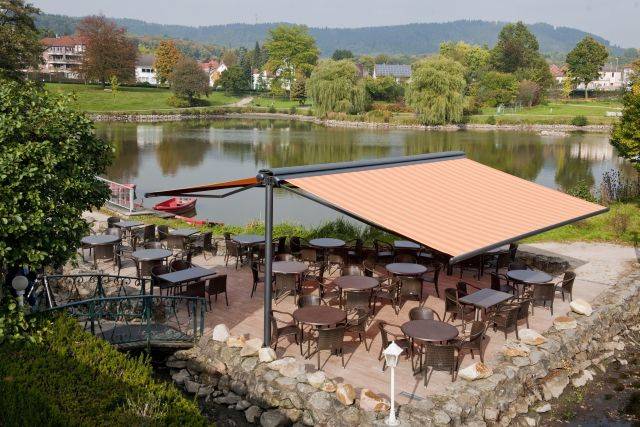

Suitable for commercial settings including hotels, restaurants, cafes, shopfronts, schools, hospitals and pubs.

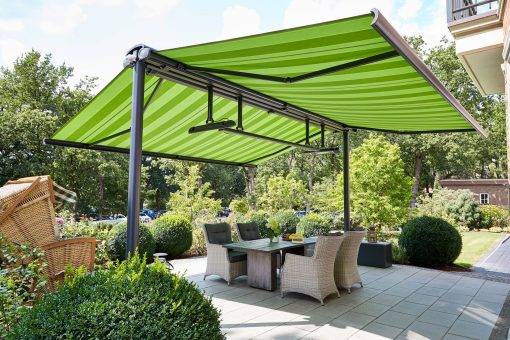

The Markilux Syncra 2 Fix is a freestanding frame system with posts secured in to stabilization boxes so no need for concrete fixings. The frame can be up to 7 m in width.
Features and benefits:
Color | Other Guidance for specification option: RAL available for surcharge. |
Finish | Powder-coated |
Material | Aluminium |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Five year |
Material | Aluminium |
Uniclass | |
CAWS | B91/330 Canopy |
Product range |
Size (width x depth) | Manufacturer guidance
|
Frame | |
Material | Aluminium. |
Headrail | |
Material | Extruded aluminum. |
Colour | Traffic white, RAL 9016.Metallic aluminium, RAL 9006.Grey brown, similar to RAL 8019.Off-white, textured finish, RAL 5233.Stone grey metallic, RAL 5215.Anthracite metallic, RAL 5204.Havana brown, textured finish, RAL 5229. |
Wind resistance | Beaufort 5 - 17–23 mph. |
Accessories | Not required.Marklux infrared heater.Markilux spotline LED.Top covers for stabilization boxes.Guidance for specification option: top covers for stabilization boxes made of sheet aluminium, powder coated or wood look (in WPC, graphite-grey, highly colour fast). Universal fixture bracket assemblies.Guidance for specification option: universal fixture bracket assemblies for display boards, TV screens etc Plastic fillet.Guidance for specification option: plastic fillet available (in white RAL 9016 or anthracite ≈ RAL 7016 for the bracket slots in the cross-beam Brackets.Guidance for specification option: wide range of brackets for the installation of folding-arm and pergola awnings as well as heating and lighting accessories 2.5 kW infrared heater io or RTS.Guidance for specification option: io receiver is integrated, RTS receiver is external. |
Posts | Support posts 140 mm diameter. Support posts 125 x 125 mm. |
Box section | Box open to the top. Guidance for specification option: standard Box with wooden cover in WPC graphite-grey. Guidance for specification option: optional Box with aluminium cover. Guidance for specification option: optional |
Contains Red List materials | No |
Country of product manufacture | Germany |
Material | Aluminium |
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
