Markilux Syncra 2 Fix Freestanding Awning
Verified by manufacturer 4 months ago

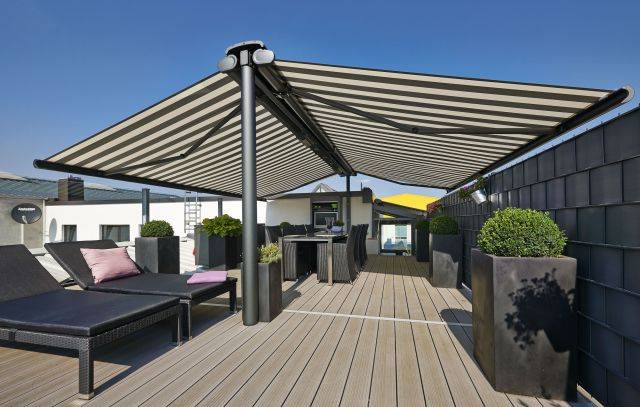

Freestanding awning with posts bolted into concrete fixings for large open spaces and up to 7 m wide frame.
Application

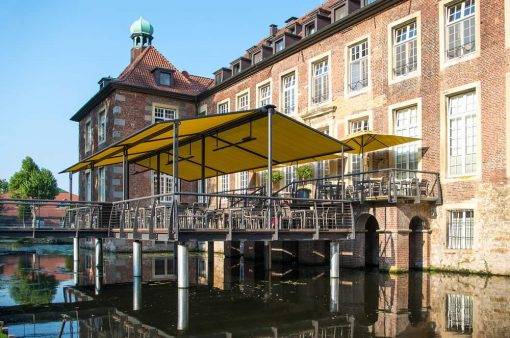

Suitable for commercial settings without wall mounting including hotels, restaurants, cafes, shopfronts, schools, hospitals and pubs.
Description
Free-standing aluminium frame system for the installation of markilux awnings on both sides (fix version) or on one side (uno fix version).
Features and benefits:
- Free-standing protection against sun and rain – water drainage guaranteed if the awnings are set at a min. pitch of 14°.
- The perfect solution especially for commercial, hotel and gastronomy requirements.
- A post-free area under the awning.
- Awnings can be operated independently of one another.
- Support posts optionally round or square, including footplates which are bolted on.
- Posts with integrated cable ducts and maintenance cover.
- Aluminium frame system including top cover profile.
- Simple fixture of the awning frame to concrete foundations.
- Free-standing installation; can also be fixed to a wall on one side.
- Syncra uno fix enables installation of awnings close to a wall when direct fixture to the wall is not advisable.
- Powder coating available in seven Markilux standard frame colours or in non-standard colours.
- For configuration options, colours and dimensions please consult the chapter of the corresponding awning model in the sales manual.
General information
Color | Other Guidance for specification option: RAL available for surcharge. |
Finish | Powder-coated |
Material | Aluminium |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Five year |
Uniclass | |
CAWS | B91/330 Canopy |
Product range |
Specification data - Awnings
Size (width x depth) | Manufacturer guidance
|
Frame | |
Material | Aluminium. |
Headrail | |
Material | Extruded aluminium. |
Colour | Traffic white, RAL 9016.Metallic aluminium, RAL 9006.Grey brown, similar to RAL 8019.Off-white, textured finish, RAL 5233.Stone grey metallic, RAL 5215.Anthracite metallic, RAL 5204.Havana brown, textured finish, RAL 5229. |
Wind resistance | Beaufort 5 - 17–23 mph. |
Accessories | None.Marklux infrared heater.Markilux spotline LED.Universal fixture bracket assemblies.Guidance for specification option: universal fixture bracket assemblies for display boards, TV screens etc Brackets.Guidance for specification option: wide range of brackets for the installation of folding-arm and pergola awnings as well as heating and lighting accessories Plastic fillet.Adapter set.Guidance for specification option: adapter set for the fixture of the post to the Krinner screw-in foundation Footplate covers.2.5 kW infrared heater io or RTS.Guidance for specification option: io receiver is integrated, RTS receiver is external. |
Posts | Support posts 140 mm diameter. Support posts 125 x 125 mm. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | Germany |
Material | Aluminium |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
Literature
Markilux Awnings For Patio and Balcony
Markilux Commercial Projects Brochure

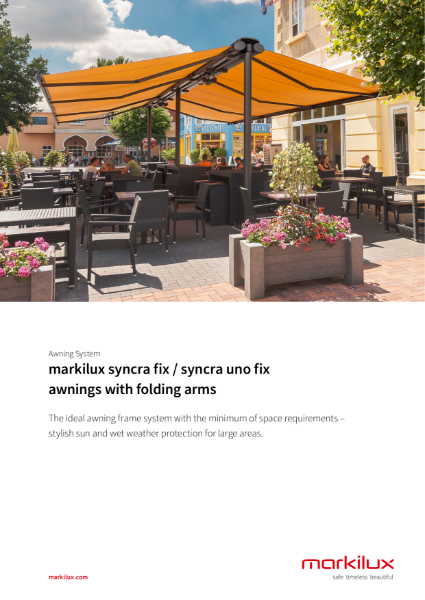

Markilux Syncra 2 Fix Manual
Markilux Syncra 2 Flex Manual
