Model 500 - Magnum firechest (∅200 mm internal)

Schiedel Chimney Systems Variant:
Third party certifications:

  • ISO 9001 Quality Management

    Certificate type

Magnum firechest and chimney system.

Jump to:
BOS
 +44 (0)191 416 1150 Website

Application

Fire chest and chimney system suitable for use in negative pressure (dry chimney) applications. Tested to EN 13229.

Description

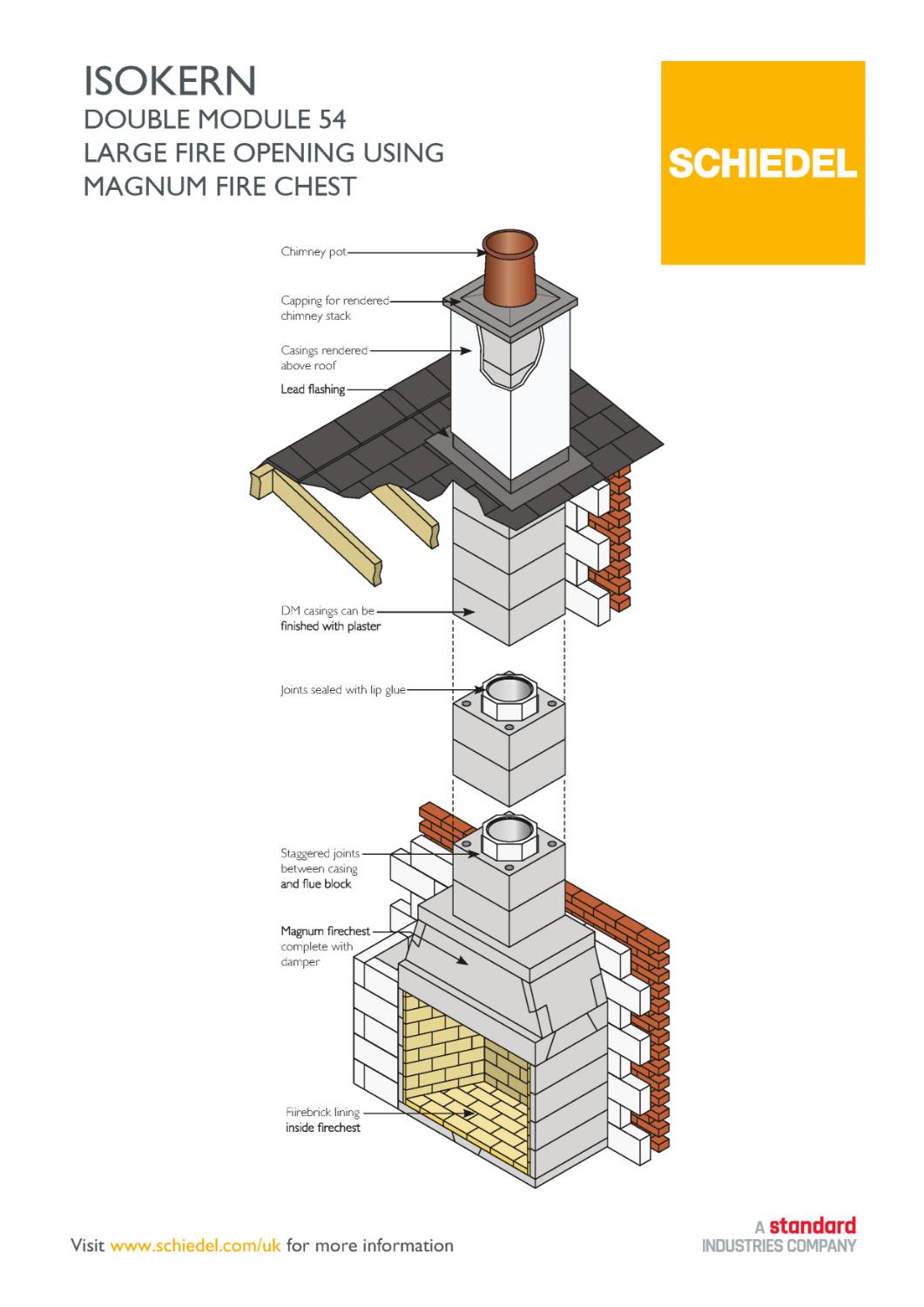

Chimney system compromising pumice concrete fire chest, rebated liner, ceramic roll top pots, support lintel and angled flashing kit 45°.


Pumice is a natural insulator providing a easy efficient solution to creating an open fire.


Features and benefits:

  • Pumice concrete is easy to build.
  • Highly insulated.
  • Lightweight.
  • Resistance to temperature changes - 41—45% efficient.
  • Supplied with damper for less heat loss.
  • Angled flashing kit is manufactured with a malleable aluminium base and is used to provide a water tight flashing around the chimney as it passes through a roof pitched between 0—45 degrees.

General information

Color

Cream

Guidance for specification option:

Buff.

Orange

Guidance for specification option:

Terracotta.

Manufacturer guidance

Roll top pot.

Finish

Other

Material

Concrete

Guidance for specification option:

Pumice concrete.

Ceramic

Aluminium

Stainless steel

Shape

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Lifetime

Uniclass

Ss_37_17_13_50 Masonry chimney stack systemsPrimary

CAWS

F30/96 Chimney pots

F30/940 Chimney pots

Specification data - Masonry chimney stack systems

Masonry units

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Mortar

-

Mortar materials

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Dpcs

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Dpc joint sealant

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Wall ties

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Inset open fireplace

Magnum firechest (pumice concrete) - 200 mm.

Guidance for specification option:

130773.

  • Model: 500.
  • Weight: 450 kg.
  • Dimensions: 1540 x 685 mm.
  • Internal diameter: 200 mm.

Flue

Pumice concrete flue lining - 200 mm.

Guidance for specification option:

127685.

  • Weight: 13 kg.
  • Internal ∅: 200 mm.
  • External ∅: 250 mm.
  • Length: 600 mm.


Manufacturer guidance

Rebated flue liner.

Flue copings and cappings

Ceramic chimney pot - 12 kg buff.

Guidance for specification option:

130697.

  • Internal diameter: 200 mm.
  • Height: 450 mm.

Ceramic chimney pot - 12.4 kg terracotta.

Guidance for specification option:

127341.

  • Internal diameter: 200 mm.
  • Height: 450 mm.

Manufacturer guidance

Roll top pot.

Ancillary structural components

Support lintel - 1500 x 140 mm.

Guidance for specification option:

146431.

  • Weight: 71 kg.
  • Max weight: 3250 kg.

Support lintel - 1500 x 215 mm.

Guidance for specification option:

146432.

  • Weight: 51 kg.
  • Max weight: 1650 kg.

System accessories

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Samples required

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Flashing kit

Angled flashing kit 45° - 180 mm.

Guidance for specification option:

128088.

  • Weight: 2.3 kg.
  • Internal ∅: 180 mm.
  • External ∅: 235 mm.
  • Colour: Plain.

Angled flashing kit 45° - 200 mm.

Guidance for specification option:

128574.

  • Weight: 1.19 kg.
  • Internal ∅: 200 mm.
  • External ∅: 256 mm.
  • Colour: Plain.


Angled flashing kit 45° - 80 mm.

Guidance for specification option:

130509.

  • Weight: 1.03 kg.
  • Internal ∅: 80 mm.
  • External ∅: N/A.
  • Colour: Plain.


Angled flashing kit 45° - 100 mm.

Guidance for specification option:

124737.

  • Weight: 1.25 kg.
  • Internal ∅: 100 mm.
  • External ∅: N/A.
  • Colour: Plain.


Angled flashing kit 45° - 150 mm.

Guidance for specification option:

130662.

  • Weight: 1.32 kg.
  • Internal ∅: 150 mm.
  • External ∅: 200 mm.
  • Colour: Black.


Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

Europe

Recyclability

Can be recycled

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

80 %

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
 -

1

IFC
 -

1

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

Declaration of Performance

Literature

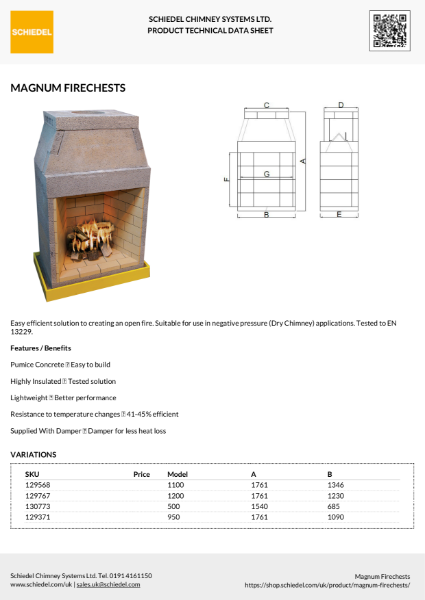

Magnum Firechests

Magnum Firechests

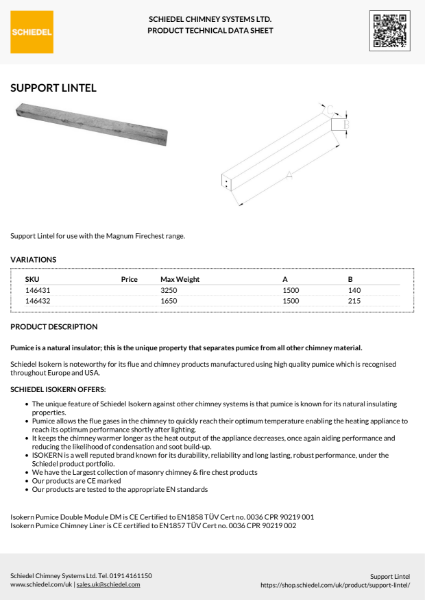

Support Lintel

Support Lintel

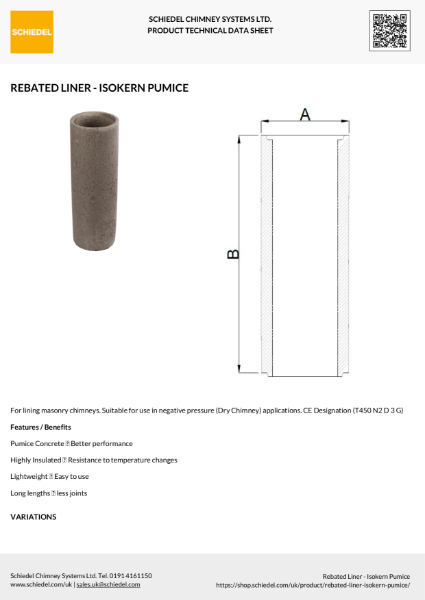

Rebated Liner - Isokern Pumice

Rebated Liner - Isokern Pumice

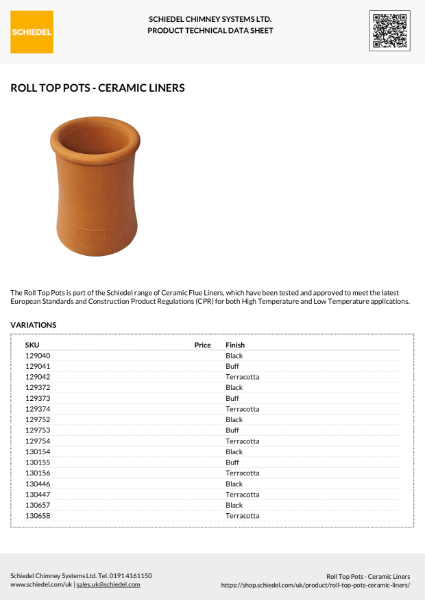

Roll Top Pots

Roll Top Pots

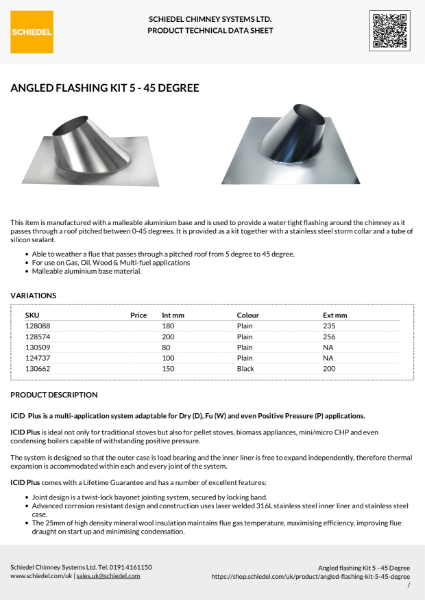

Angled Flashing Kit - 45°

Angled Flashing Kit - 45°

Case studies

Using volcanic pumice building blocks to build a chimney during a self-build project.

Using volcanic pumice building blocks to build a chimney during a self-build project.
