Sirius, Air-Tight and Defra Exempt Stove and Chimney Installation Package - Heating Appliance, Wood Burning Stove

Verified by manufacturer 3 days ago

Schiedel Chimney Systems

Air-tight and Defra exempt stove and chimney installation package.

Jump to:
BOS
+44 (0)191 416 1150 Website

Application

Suitable for operation with room sealed wood appliances with continuous operating temperature up to 600°C.

Description

Defra Exempt and clearSkies approved, wood burning stove with permeter flue system. 30% more efficient than current EcoDesign standards. Systems come with the stove and chimney components in one package – suitable for builders, architects, housebuilders and self builders.


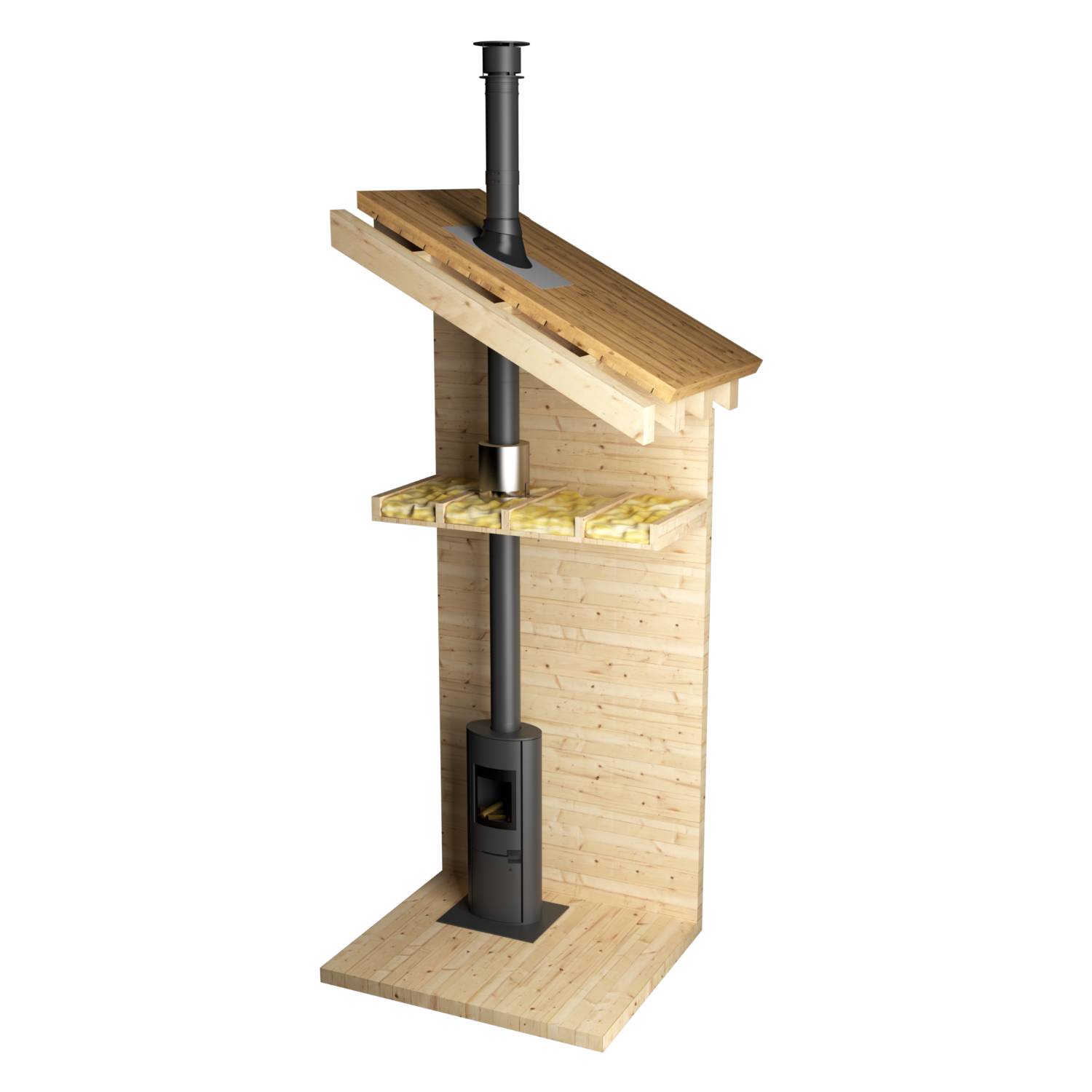

The Permeter Smooth Air Chimney System provided with the Sirius stove is a steel chimney with air supply offers great flexibility and flexible placement. All Sirius models are approved by the highest European standards for air independent use. This allows the combined usage with ventilation systems in modern buildings and guarantees a healthy indoor environment.


Schiedel Permeter Smooth Air chimney is constructed with a separate inlet-duct ensuring that the stove is supplied with the optimal amount of combustion air from the top of the pipe. The double insulated pipes avoid condensation.


Features and benefits:

  • Combustion air independent from installation room, provided through Permeter Smooth Air Chimney from top, allows flexible placement.
  • Due to system solution, no separate air channel adaptor/ bypass necessary.
  • Highly efficient up to 84% more heat, less wood.
  • Highest European and national standards – EN 13 240, DIN+, 1.BImSchV2, DiBt, 15a B-VG, NS 3058/3059.
  • Easy to operate with self closing door and interlock system for igniting or cleaning purpose.
  • Eco-friendly corpus paint resulting in environmentally friendly low smoke and low emission colour.
  • Adjustable legs to adapt to uneven surfaces.

General information

Color

Black

Finish

Galvanized

Powder-coated

Material

Stainless steel

Shape

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Uniclass

Ss_37_17_13_50 Masonry chimney stack systemsPrimary

CAWS

F30/96 Chimney pots

F30/940 Chimney pots

Specification data - Masonry chimney stack systems

Masonry units

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Mortar

-

Mortar materials

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Dpcs

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Dpc joint sealant

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Wall ties

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Inset open fireplace

Sirius wood burning stove.

Flue

Steel chimney flue - 150 mm.

Guidance for specification option:

142696.

  • Weight: 8.3 kg.
  • Internal diameter: 150 mm.
  • External diameter 1: 250 mm.
  • Length: 955 mm.
  • Material: 316 stainless steel.
  • Colour: Black.
  • PMSA 25.

Flue copings and cappings

Anti-splash terminal.

Guidance for specification option:

116577.

  • Internal diameter: 150 mm.
  • Weight: 4 kg.
  • PMSA 25.

Ancillary structural components

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

System accessories

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Samples required

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Connector

Concentric stove connector.

Guidance for specification option:

157842.

  • Internal diameter: 150 mm.
  • External diameter A (bottom): 200 mm.
  • External diameter B (top): 250 mm.
  • Weight: 0.93 kg.

Pipe

Inspector pipe.

Guidance for specification option:

172735.

  • Internal diameter: 150 mm.
  • External diameter: 250 mm.
  • Length: 455 mm.
  • Weight: 4 kg.


Vent

Round ventilated fire stop.

Guidance for specification option:

173118.

  • Nominal diameter: 150 mm.
  • Internal diameter: 252 mm.
  • External diameter: 500 mm.
  • Weight: 2.48 kg.

Support plate

Ventilated support plate.

Guidance for specification option:

173120.

  • Nominal diameter: 150 mm.
  • Dimensions: 400 x 400 mm.

Bracket

Roof bracket.

Guidance for specification option:

100965.

  • Nominal diameter: 150 mm.
  • External diameter: 250 mm.
  • Weight: 1.33 kg.

Flashing

Uniflash.

Guidance for specification option:

112197.

  • Dimensions: 685 x 685 mm.
  • Weight: 1.24 kg.

Pipe collar

Storm collar.

Guidance for specification option:

110460.

  • Nominal diameter: 150 mm.
  • Diameter A (top): 250 mm.
  • Diameter B (bottom) 390 mm.
  • Height: 140 mm.
  • Weight: 0.45 kg.
  • PMSA 25.

Pipes

500 pipe.

Guidance for specification option:

116710.

  • Internal diameter: 150 mm.
  • Length: 500 mm.
  • Weight: 4.15 kg.
  • Colour: Black.
  • PMSA 25.

Fuel

Wood.

Manufacturer guidance

Permeter Smooth Air Chimney System.

Operating temperature

≤600°C.

Manufacturer guidance

Permeter Smooth Air Chimney System.

Mode of operation

Negative pressure (N1 ≤40 Pa) (dry).

Manufacturer guidance

Permeter Smooth Air Chimney System.

Pipe material

To EN 1.4404, stainless steel (AISI 316L).

Manufacturer guidance

Permeter Smooth Air Chimney System.

Inner pipe material.

Surface material

Galvanized steel, powder-coated.

To EN 1.4301 (304) stainless steel.

Manufacturer guidance

Permeter Smooth Air Chimney System.

Outer case material.

Surface finish

Black (RAL 9005).

Manufacturer guidance

Permeter Smooth Air Chimney System.

Insulation

25 mm thick mineral wool tube, with aluminium lamination.

Guidance for specification option:

PMSA 25.

Manufacturer guidance

Permeter Smooth Air Chimney System.

Density

128 kg/m³.

Manufacturer guidance

Insulation density.

Thermal resistance

0.37 m²K/W.

Manufacturer guidance

Permeter Smooth Air Chimney System.

Roughness

To EN 13384-1, 1.0 mm.

Manufacturer guidance

Permeter Smooth Air Chimney System.

Sustainability data

Contains Red List materials

No

Country of material origin

Czechia

Country of product manufacture

Czechia

Material

Stainless steel

Recyclability

Can be recycled

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

30 %

Expected Life

30 year

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

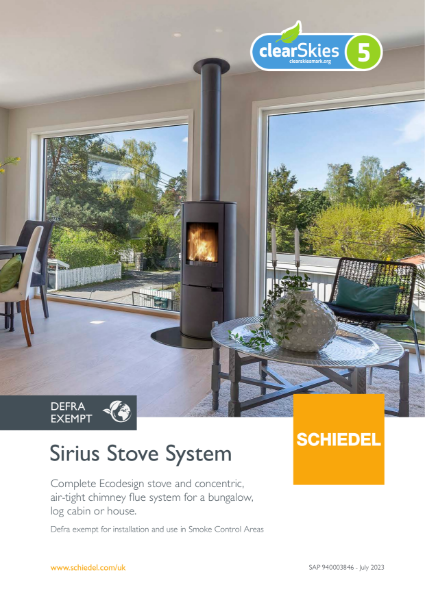

Sirius stove system brochure
