Ceramic 200 mm Liner External Brick Chimney - Two Storey

Name: Ceramic 200 mm Liner External Brick Chimney - Two Storey
Brand: Schiedel Chimney Systems
SKU: i5sHZaVmzxs14bdXbEzUcY

Verified by manufacturer 11 days ago

Schiedel Chimney Systems

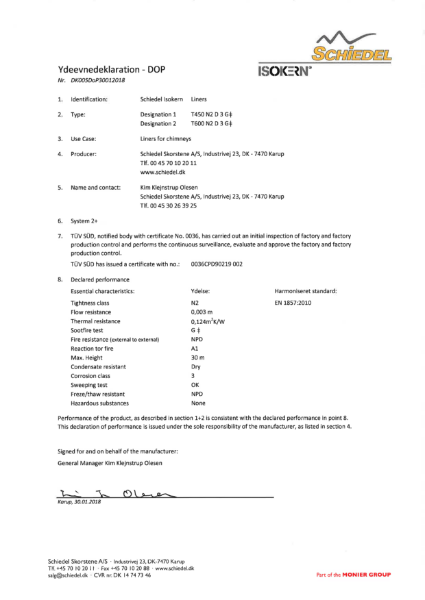

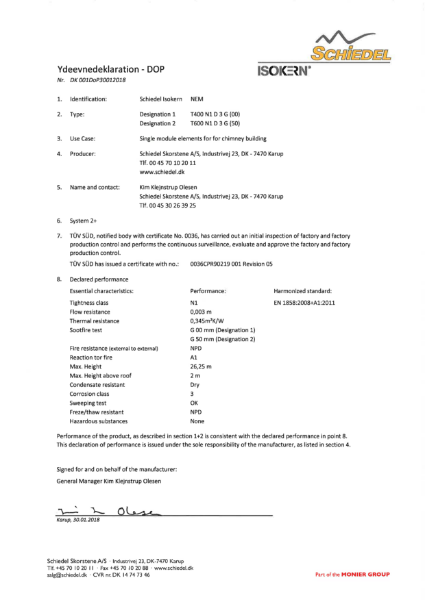

Third party certifications:

TUV NORD
Certificate type

Ceramic chimney system.

Jump to:

BOS

+44 (0)191 416 1150 Website

Application

Suitable for two storey external brick chimney.

Description

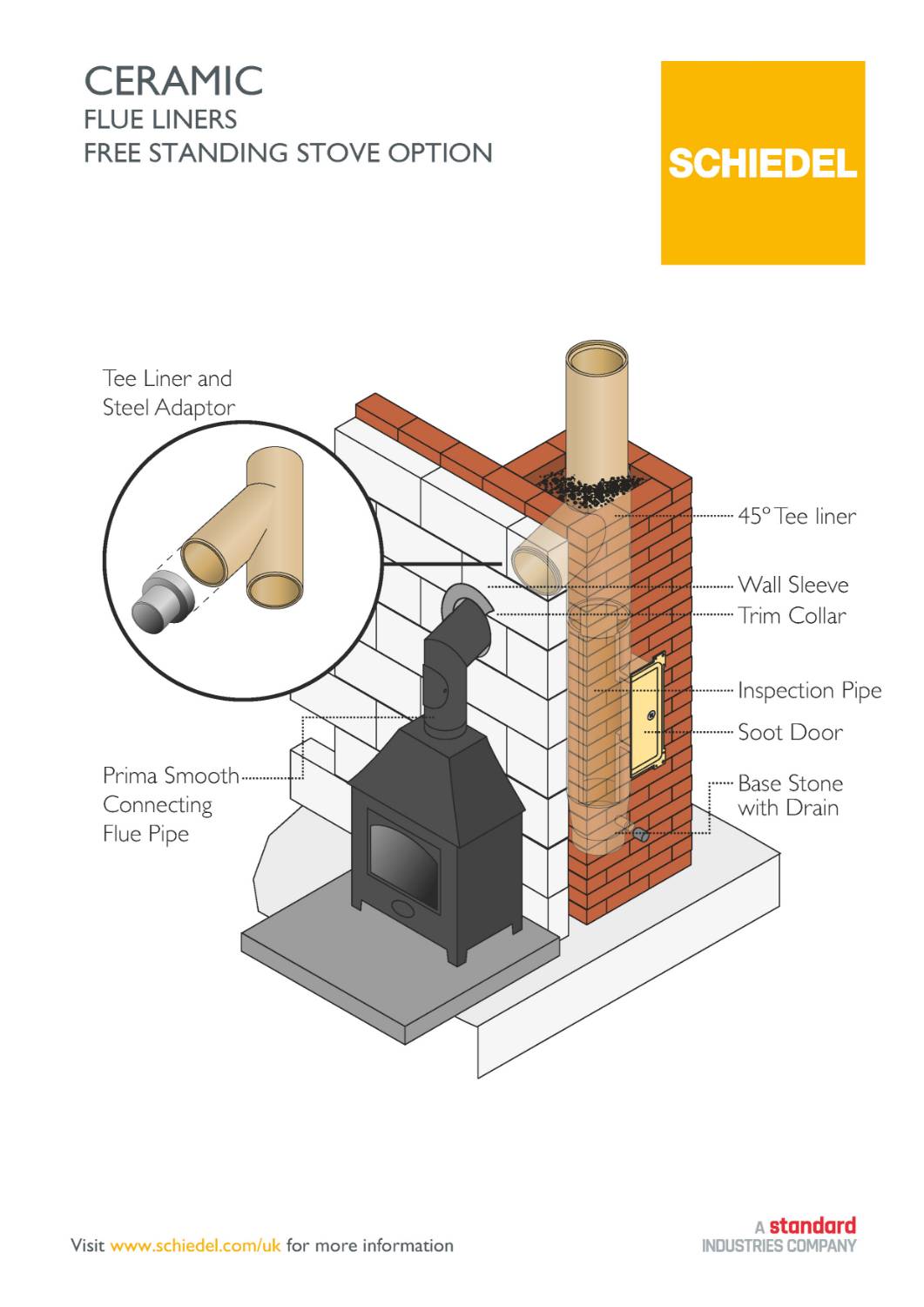

Chimney system compromising ceramic rebated liner (200 mm), 37.5 degree bend ceramic liner, ceramic roll top pots, adaptor from steel to support block and support lintel.

The ceramic range of liners and accessories are a cost effective way of safely adding a chimney into an building development, or adding a chimney to an existing renovation.

Features and benefits:

Resistant to thermal shock – The liners are extremely durable and have been tested for resistance to soot fire as well as to condensate, and meet the latest CE standards and Construction Products Regulations (CPR).
Lightweight – Due to advanced manufacturing techniques, Schiedel Chimney Systems have been able to reduce the wall thickness of the liner to produce the optimal lightweight but extremely robust product.
Smooth inner wall – The smooth inner liner allows gas, the product of combustion to freely exit the chimney. Straight lines ensure a consistent fill of insulation.

General information

Color	Cream Guidance for specification option: Buff. Orange Guidance for specification option: Terracotta. Manufacturer guidance Roll top pots.
Finish	Smooth
Material	Ceramic
Shape	Other
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	Lifetime

Uniclass	Ss_37_17_13_50 Masonry chimney stack systemsPrimary
CAWS	F30/96 Chimney pots F30/940 Chimney pots

Specification data - Masonry chimney stack systems

Masonry units	Guidance for specification option: Consult manufacturer and insert requirements or omit.
Mortar	-
Mortar materials	Guidance for specification option: Consult manufacturer and insert requirements or omit.
Dpcs	Guidance for specification option: Consult manufacturer and insert requirements or omit.
Dpc joint sealant	Guidance for specification option: Consult manufacturer and insert requirements or omit.
Wall ties	Guidance for specification option: Consult manufacturer and insert requirements or omit.
Inset open fireplace	Guidance for specification option: Consult manufacturer and insert requirements or omit.
Flue	Ceramic flue lining - 200 mm. Guidance for specification option: 100374.

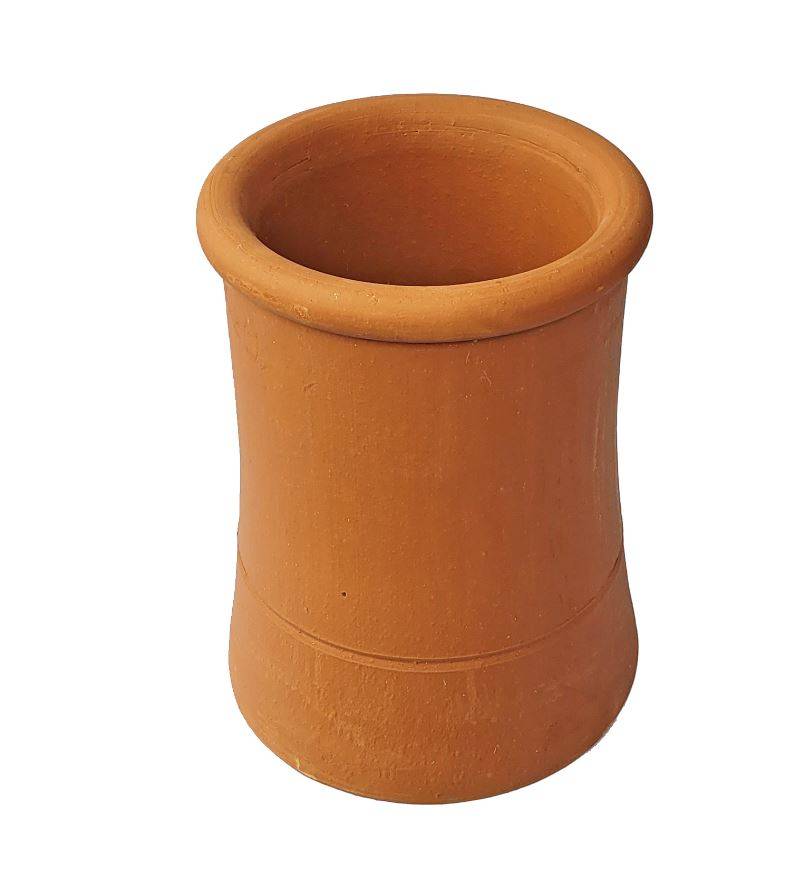

Flue copings and cappings	Ceramic chimney pot - 12 kg buff. Guidance for specification option: 130697. Internal diameter: 200 mm. Height: 450 mm. Ceramic chimney pot - 12.4 kg terracotta. Guidance for specification option: 127341. Internal diameter: 200 mm. Height: 450 mm.
Ancillary structural components	Support lintel - 1500 x 140 mm. Guidance for specification option: 146431. Weight: 71 kg. Max weight: 3250 kg. Support lintel - 1500 x 215 mm. Guidance for specification option: 146432. Weight: 51 kg. Max weight: 1650 kg.
System accessories	Guidance for specification option: Consult manufacturer and insert requirements or omit.
Samples required	Guidance for specification option: Consult manufacturer and insert requirements or omit.

Adaptor	200 mm. Guidance for specification option: 126373. Manufacturer guidance Adaptor from steel to support block.
Bends	200 mm. Guidance for specification option: 121336. Manufacturer guidance 37.5° bend ceramic liner.

Sustainability data

Contains Red List materials	No
Country of material origin	Europe
Country of product manufacture	Europe
Material	Ceramic
Recyclability	Can be recycled
Recycled content As defined in clause 7.8 of BS EN ISO 14021	80 %
