M70 Tilt and Turn Window - PVC-U Window System

Verified by manufacturer 1 month ago

VEKA plc Third party certifications:
  • BSI Kitemark

    BSI Kitemark

    Certificate type

PVC-U Tilt & Turn Window - ideal for blocks of flats and high rise commercial and residential buildings.

Jump to:
+44 (0)1282 716611 Website

Application

PVC-U tilt and turn windows that are suitable for high rise buildings where security and cleaning are as important as light.

Description

With its clean bevelled design, M70 offers the contemporary look that consumers demand. With slimmer sight-lines and leading thermal performance, the window provides an alternative to aluminium and timber, with the advanced performance associated with PVC-U. This 70 mm fully integrated multi-bevelled system includes steel reinforcement for additional durability, security and thermal efficiency.


Features and benefits:

  • Tilt and turn configuration.
  • Large assortment of colours and woodgrain options.
  • Sculptured or bevelled options available.
  • Complies to BS EN 12608-1+A1:2020/ PAS 24:2022.

General information

Color

Beige

Black

Blue

Brown

Cream

Show more

Manufacturer guidance

Available in a large assortment of colours and woodgrain options from the Variations range and SPECTRAL.

Finish

Coated

Woodgrain

Material

PVC-U

Shape

Rectangle

Square

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Uniclass

Pr_30_59_98_92 Unplasticized polyvinyl chloride (PVC-U) window unitsPrimary

CAWS

L10/30 PVC-U windows

L10/350 PVC-U windows

Specification data - Unplasticized polyvinyl chloride (PVC-U) window units

Standard

Non-fire and/ or smoke-rated windows to BS EN 12608 and BS 7412.

Third-party certification

Third-party-accredited by BSI Kitemark™.

Dimensions and configurations

-

Manufacturer guidance

Consult manufacturer and insert requirements.

  • Maximum sash size (W x H): 1600 x 1600 mm.

Product performance

-

Weather performance

-

UK exposure category

To BS 6375-1, 2000 Pa.

Air permeability

To BS 6375-1, Class 3.

Watertightness

To BS 6375-1, Class 9A.

Resistance to wind load

AE2400 Pa.

Durability

-

Operation and strength characteristics

To BS 6375-2.

Safety

-

Security level

To PAS 24.

Thermal

-

Whole window U-value

1.2 W/m2K.

Guidance for specification option:

Achieves U-values as low as 1.2 W/m2K using double glazing.


0.92 W/m2K.

Guidance for specification option:

Achieves U-values as low as 0.92 W/m2K using triple glazing.

Frame

-

Profile

To BS EN 12608-1.

Reinforcement

Steel.

Colour and texture

-

Manufacturer guidance

Consult manufacturer and insert requirements.


Available in a large assortment of colours and woodgrain options from the Variations range and SPECTRAL*.


* SPECTRAL is only available on bevelled or flat surfaces.

Glazing or infill

-

Requirements

Double glazed.

Triple glazed.

Hardware

-

Manufacturer guidance

Consult manufacturer and insert requirements or omit.

Operation

-

Type

Manual.

Fixing features

Manufacturer's standard.

Outer frame

55 mm.

67 mm.

80 mm.

Mullions

68 mm.

82 mm.

Manufacturer guidance

115 mm mid-rail.

Sash

82 mm tilt and turn sash.

Glazing beads

28 mm bevelled.

28 mm sculptured.

36 mm bevelled.

40 mm bevelled.

44 mm bevelled.

Sustainability data

Country of product manufacture

United Kingdom

Material

PVC-U

Manufacturing plant location

Recyclability

Through our advanced recycling process, each PVCu frame can achieve a potential lifetime of 350 years. VEKA Recycling Ltd offer a fully circular solution for PVCu waste management. Collected and processed in the UK, for use in the UK.

Expected Life

35 year

Guidance for specification option:

Through our closed loop process, we can recycle windows and doors up to 10 times. This means each frame can achieve a potential lifetime of 350 years.

Manufacturer guidance

Through our closed loop process, we can recycle windows and doors up to 10 times. This means each frame can achieve a potential lifetime of 350 years.

Third party certifications

BSI Kitemark

BSI Kitemark

M70 PVC-U Window System Kitemark™ Certificate - No. KM 33520

Literature

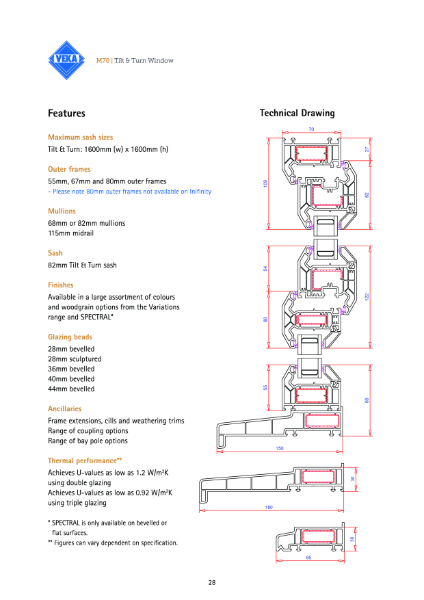

M70 Tilt and Turn Window Specification
