Top Hung (1400 x 1400 mm Max. Sash Size)
BSI Kitemark
Certificate type
70mm PVC-U Casement Window
PVC-U casement windows that are suitable to fit a range of applications.

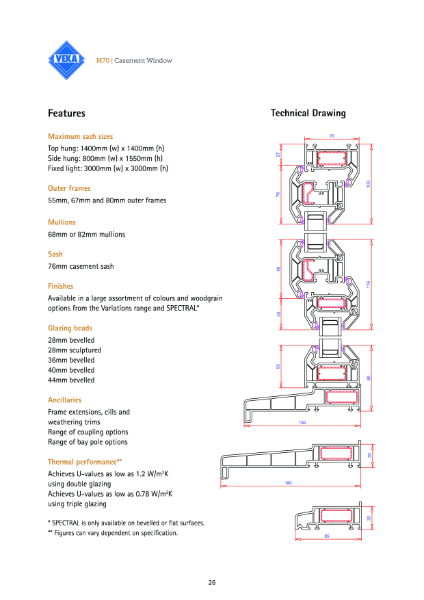

The M70 VEKA Casement Window sits within an integrated multi-chambered system with sections of reinforced steel and aluminium. Stylish as well as functional; the M70 VEKA casement window is available in a range of sash sizes (top hung, side hung, and fixed light) as well as a large assortment of colours and woodgrain options from VEKA's Variations range. With its durability, security and thermal efficiency alongside its pleasing aesthetics, the M70 VEKA Casement window offers a high performance product solution to fit a range of applications.
Features and benefits:
Color | Beige Black Blue Brown Cream Manufacturer guidanceAvailable in a large assortment of colours and woodgrain options from the Variations range and SPECTRAL. |
Finish | Coated Woodgrain Smooth Wood grain |
Material | PVC-U |
Shape | Rectangle Square |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | L10/30 PVC-U windows L10/350 PVC-U windows |
Standard | Non-fire and/ or smoke-rated windows to BS EN 12608 and BS 7412. |
Third-party certification | Third-party-accredited by BSI Kitemark™. |
Dimensions and configurations | Manufacturer guidanceConsult manufacturer and insert requirements.
|
Product performance | |
Weather performance | |
UK exposure category | To BS 6375-1, 2000 Pa. |
Air permeability | To BS 6375-1, Class 4. |
Watertightness | To BS 6375-1, Class 8A. |
Resistance to wind load | AE2400 Pa. |
Durability | |
Operation and strength characteristics | To BS 6375-2.Guidance for specification option:
|
Safety | |
User design standards | Secured by Design (SBD).Guidance for specification option: VEKA and Halo are both certified with SBD: SBD requires the manufacturer (not the systems supplier) of the windows and/or doorsets to be 3rd party certified - not only to PAS 24 but also ‘Fit for Purpose’ standards BS 7412 and the BS 6375 series. |
Security level | To PAS 24. |
Thermal | |
Whole window U-value | 1.2 W/m2K.Guidance for specification option: Achieves U-values as low as 1.2 W/m2K using double glazing. 0.86 W/m2K.Guidance for specification option: Achieves U-values as low as 0.86 W/m2K using triple glazing. |
Frame | |
Profile | To BS EN 12608-1. |
Reinforcement | Steel and aluminium. |
Colour and texture | Manufacturer guidanceConsult manufacturer and insert requirements. Available in a large assortment of colours and woodgrain options from the Variations range and SPECTRAL*. * SPECTRAL is only available on bevelled or flat surfaces. |
Glazing or infill | |
Requirements | Double glazed.Triple glazed. |
Hardware | Manufacturer guidanceConsult manufacturer and insert requirements or omit. |
Operation | |
Type | Manual. |
Fixing features | Manufacturer's standard. |
Outer frame | 55 mm. 67 mm. 80 mm. |
Mullions | 68 mm. 82 mm. |
Sash | 76 mm casement sash. |
Glazing beads | 28 mm bevelled. 28 mm sculptured. 36 mm bevelled. 40 mm bevelled. 44 mm bevelled. |
Country of product manufacture | United Kingdom |
Material | PVC-U |
Manufacturing plant location | |
Recyclability | Through our advanced recycling process, each PVCu frame can achieve a potential lifetime of 350 years. VEKA Recycling Ltd offer a fully circular solution for PVCu waste management. Collected and processed in the UK, for use in the UK. |
Expected Life | 35 year Manufacturer guidanceThrough our closed loop process, we can recycle windows and doors up to 10 times. This means each frame can achieve a potential lifetime of 350 years. |
