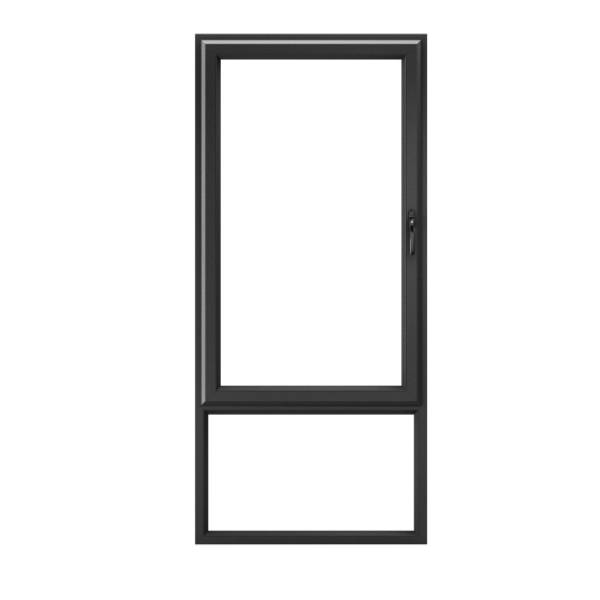

VEKA Matrix Fully Reversible Window - PVC-U Windows

Verified by manufacturer 7 days ago

VEKA plc Third party certifications:
  • BSI Kitemark

    BSI Kitemark

    Certificate type

PVC-U fully reversible windows.

Jump to:
+44 (0)1282 716611 Website

Application

PVC-U windows that are suitable for multi-story properties.

Description

Suitable for multi-story properties, the 180-degree reversible opening mechanism pivots within the axis of the hinge without protruding into the room to allow easy, safe and secure cleaning of the external glass from the inside of the property. Available in a large assortment of colours and woodgrain options from the VEKA plc's Variations range.


Features and benefits:

  • Fully reversible windows.
  • Large assortment of colours and woodgrain options.
  • Sculptured or bevelled options available.
  • Complies to BS EN 12608-1+A1:2020/ PAS 24:2022.

General information

Color

Beige

Black

Blue

Brown

Cream

Show more

Manufacturer guidance

Available in a large assortment of colours and woodgrain options from the Variations range and SPECTRAL.

Finish

Coated

Woodgrain

Material

PVC-U

Shape

Rectangle

Square

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Uniclass

Pr_30_59_98_92 Unplasticized polyvinyl chloride (PVC-U) window unitsPrimary

CAWS

L10/30 PVC-U windows

L10/350 PVC-U windows

Specification data - Unplasticized polyvinyl chloride (PVC-U) window units

Standard

Non-fire and/ or smoke-rated windows to BS EN 12608 and BS 7412.

Third-party certification

Third-party-accredited by BSI Kitemark™.

Dimensions and configurations

-

Manufacturer guidance

Consult manufacturer and insert requirements.

  • Maximum sash size (W x H): 1400 x 1400 mm.

Product performance

-

Weather performance

-

UK exposure category

To BS 6375-1, 2000 Pa.

Air permeability

To BS 6375-1, Class 2.

Watertightness

E1050.

Resistance to wind load

To BS 6375-1, Class A4.

Durability

-

Operation and strength characteristics

To BS 6375-2.

Safety

-

Security level

To PAS 24.

Thermal

-

Whole window U-value

1.2 W/m²K.

Guidance for specification option:

Achieves U-values as low as 1.2 W/m²K using double glazing.

0.93 W/m²K.

Guidance for specification option:

Achieves U-values as low as 0.93 W/m²K using triple glazing.

British Fenestration Rating Council Window Energy Rating

A+.

Guidance for specification option:

Window energy rating of A+ achievable.

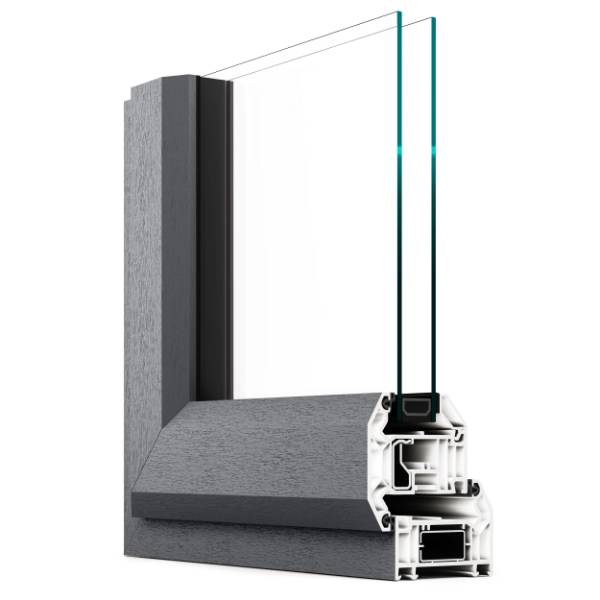

Frame

-

Profile

To BS EN 12608-1.

Colour and texture

-

Manufacturer guidance

Consult manufacturer and insert requirements.


Available in a large assortment of colours and woodgrain options from the Variations range and SPECTRAL*.


* SPECTRAL is only available on bevelled or flat surfaces.

Glazing or infill

-

Requirements

Double glazed.

Triple glazed.

Hardware

-

Manufacturer guidance

Consult manufacturer and insert requirements or omit.

Operation

-

Type

Manual.

Fixing features

Manufacturer's standard.

Outer frame

60 mm.

Mullions

86 mm T&Z mullions.

Sash

70 mm reversible sash.

Glazing beads

28 mm bevelled.

28 mm sculptured.

36 mm bevelled.

36 mm sculptured.

40 mm bevelled.

Show more

Sustainability data

Country of product manufacture

United Kingdom

Material

PVC-U

Manufacturing plant location

Recyclability

Through our advanced recycling process, each PVCu frame can achieve a potential lifetime of 350 years. VEKA Recycling Ltd offer a fully circular solution for PVCu waste management. Collected and processed in the UK, for use in the UK.

Expected Life

35 year

Guidance for specification option:

Through our closed loop process, we can recycle windows and doors up to 10 times. This means each frame can achieve a potential lifetime of 350 years.

Manufacturer guidance

Through our closed loop process, we can recycle windows and doors up to 10 times. This means each frame can achieve a potential lifetime of 350 years.

Third party certifications

BSI Kitemark

BSI Kitemark

Matrix Fully Reversible Window Kitemark™ Certificate No. KM 33520

Literature

VEKA Matrix Fully Reversible Window Specification

VEKA Matrix Fully Reversible Window Specification
