Compare

Imagine Vertical Slider - Sliding Sash Window

Name: Imagine Vertical Slider - Sliding Sash Window
Brand: VEKA plc
SKU: kWfqB9iUvrCrEpadJmGWDH

Verified by manufacturer 1 month ago

VEKA plc

Third party certifications:

BSI Kitemark
Certificate type

PVC-U Vertical Sliding Sash Window.

Jump to:

+44 (0)1282 716611 Website

Application

PVC-U vertical slider sash windows that are suitable to fit a range of applications.

Description

The Imagine Vertical Slider carries all the beauty of a design classic, combined with the latest industry thinking. Spring and spiral balances and a tilt facility allows the sashes to open inwards for easy cleaning of the outside glass.

The timeless design of Imagine Windows makes them a perfect choice for heritage-conscious homeowners and period buildings with historic charm. Boasting state-of-the-art industry technology, the versatile system is equally suited to stylish new builds with modern appeal.

Our Vertical Sliding Windows meet the highest security standards of PAS 24. The classic design combines versatile elegance with robust security including multipoint locking. For added safety, we are also committed to ensuring our windows pass the high standards set out by the Police Preferred Specification.

Features and benefits:

Large assortment of colours and woodgrain options.
Complies to BS EN 12608-1+A1:2020/ PAS 24:2022.
Achieves U-values as low as 1.2 W/m²K using double glazing.

General information

Color	Beige Black Blue Brown Cream Green Grey Ivory White Other Show more Manufacturer guidance Available in a large assortment of colours and woodgrain options from the Variations range and SPECTRAL.
Finish	Coated Woodgrain
Material	PVC-U
Shape	Rectangle Square
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	Ten year

Uniclass	Pr_30_59_98_92 Unplasticized polyvinyl chloride (PVC-U) window unitsPrimary
CAWS	L10/30 PVC-U windows L10/350 PVC-U windows

Specification data - Unplasticized polyvinyl chloride (PVC-U) window units

Standard	Non-fire and/ or smoke-rated windows to BS EN 12608 and BS 7412.
Third-party certification	Third-party-accredited by BSI Kitemark™.
Dimensions and configurations	- Manufacturer guidance Consult manufacturer and insert requirements. Maximum sash size (W x H): 1400 x 2450 mm.
Product performance	-
Fire performance	-
Fire resistance	Non fire-rated.
Weather performance	-
UK exposure category	To BS 6375-1, 2400 Pa.
Air permeability	To BS 6375-1, Class 4.
Watertightness	To BS 6375-1, Class 9A.
Resistance to wind load	AE2400.
Durability	-
Operation and strength characteristics	To BS 6375-2.
Safety	-
Security level	To PAS24:2022.
Thermal	-
Whole window U-value	1.2 W/m2K. Guidance for specification option: Achieves U-values as low as 1.2 W/m2K using double glazing.
British Fenestration Rating Council Window Energy Rating	A. Guidance for specification option: Window energy rating of A achievable.
Frame	-
Profile	To BS EN 12608-1.
Colour and texture	- Manufacturer guidance Consult manufacturer and insert requirements. Available in a large assortment of colours and woodgrain options from the Variations range and SPECTRAL. SPECTRAL is only available on bevelled or flat surfaces.
Glazing or infill	-
Requirements	Double glazed.
Hardware	- Manufacturer guidance Consult manufacturer and insert requirements or omit.
Operation	-
Type	Manual.
Fixing features	Manufacturer's standard.

Outer frame	70 x 146 mm.
Sash	50 mm upper sash. 64 mm lower sash. 105 mm lower sash, bottom rail.
Glazing beads	28 mm sculptured. 32 mm sculptured.

Sustainability data

Country of product manufacture	United Kingdom
Material	PVC-U
Recyclability	Through our advanced recycling process, each PVCu frame can achieve a potential lifetime of 350 years. VEKA Recycling Ltd offer a fully circular solution for PVCu waste management. Collected and processed in the UK, for use in the UK.
Expected Life	35 year Guidance for specification option: Through our closed loop process, we can recycle windows and doors up to 10 times. This means each frame can achieve a potential lifetime of 350 years. Manufacturer guidance Through our closed loop process, we can recycle windows and doors up to 10 times. This means each frame can achieve a potential lifetime of 350 years.

Third party certifications

BSI Kitemark

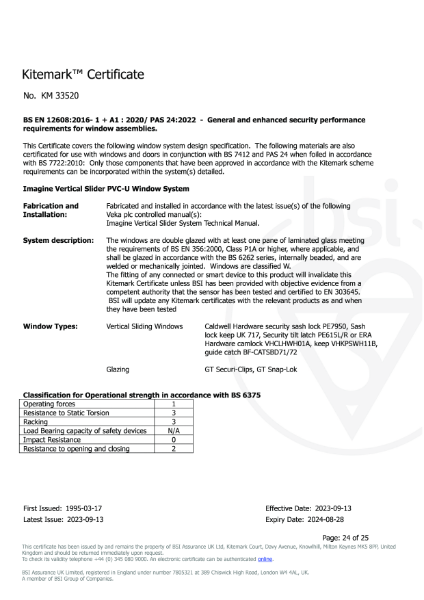

Imagine Vertical Slider Kitemark™ Certificate No. KM 33520

Literature

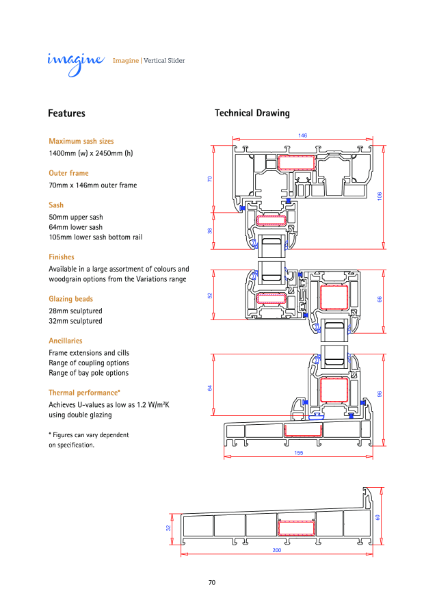

Imagine Vertical Slider - Sliding Sash Window Specification
