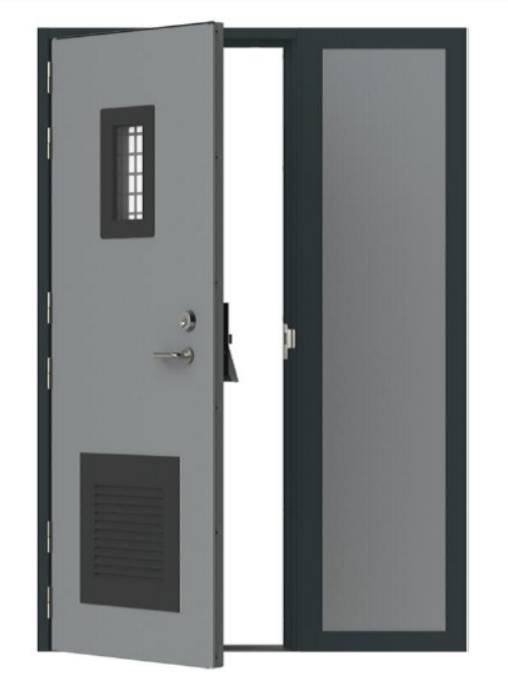

M2M4 double steel security door set - Steel door
Verified by manufacturer 7 months ago
EN 13501-1 (Efectis)
Certificate type
Level 4 LPS 1175 Certified Steel security doorset with optional internal certified fire integrity
Application
Bespoke-engineered to suit individual requirements and project briefs that require a high level of protection.
Description
Certified by the LPCB to LPS 1175: Issue 7 Security Rating 4. To achieve this notable accreditation, the M2M4 withstood simulated experienced attempts of forced entry using heavy duty tools, such as a disc grinder, jigsaw, and a sledgehammer.
Features and benefits:
- Certified by the LPCB to LPS 1175: Issue 7 Security Rating 4, assuring specifiers of the high resistance to attack that this doorset offers.
- Optional CERTIFIRE accreditation up to FD240.
- Optional flood door accreditation.
- Polyester powder coated in a selection of colours and finishes.
- High quality wood grain effect available.
- Wide range of certified locking options available.
- Constructed from Zintec steel, stainless steel, or Magnelis.
- Range of certified vision panels and louvres available.
- Designed for premises requiring high security.
- Outward opening only.
- Side and/or overpanels.
- 66 mm door.
- 110 mm frame.
General information
Color | Beige Black Blue Bronze Brown |
Finish | Powder-coated Wood grain Gloss Semi-gloss Matt |
Material | Steel Guidance for specification option: Zintec steel or stainless steel. |
Shape | Rectangle |
Width | 2600 mm |
Height | 2930 mm |
Warranty description | One year |
Uniclass | |
CAWS | B12/350 Internal doors B12/340 External doors M60/70 External doors L20/280 Doors L20/480 Doorsets L20/55 Doorsets |
Specification data - Carbon steel doorsets
Configuration | Leaf and half, single action. |
Doorset size | Bespoke.Guidance for specification option: Insert requirement:
Leaf and a half doorsets are available, with a minimum passive leaf width of 450 mm. |
Performance | |
Fire resistance | |
Integrity | Not required.240 minutes.Guidance for specification option: M2M4 doors are available with a fire rating up to FD240, providing integrity fire resistance for up to 240 minutes, certified by Exova under the CERTIFIRE scheme (certificate number CF5107). |
Intruder resistance | |
Minimum requirement | To LPS 1175, SR 4.Guidance for specification option: M2M4 doors are LPCB certified to LPS 1175: Issue 7 Security Rating 4 (certificate number 312e). |
Conformity | Certification by accredited third-party certification body. |
Frame | |
Material | Zintec steel.Stainless steel.Manufacturer guidance2 mm thick. |
Threshold | Steel.Aluminium. |
Finish | |
Coating | Polyester powder coated.Guidance for specification option: Standard finish. Wood effect.Guidance for specification option: High quality wood-grain at an additional cost. |
Colour | Guidance for specification option: Various colours available. Consult manufacturer and insert requirement. |
Installation fasteners | Nine hooked dog bolts per leaf. |
Frame accessories | Six hinges per leaf. |
Door leaf | |
Thickness | 66 mm. |
Material | Zintec steel.Stainless steel.Magnelis.Manufacturer guidance1.5 mm thick. |
Beading | |
Type | 10 mm astragal. |
Material | Steel. |
Finish | |
Coating | Polyester powder coated.Guidance for specification option: Standard finish. Wood effect.Guidance for specification option: High quality wood-grain at an additional cost. |
External colour | Guidance for specification option: Various colours available. Consult manufacturer and insert requirement. |
Internal colour | Guidance for specification option: Various colours available. Consult manufacturer and insert requirement. |
Hardware | Not required.MICO 942 2/3 point locking systems.Guidance for specification option: 2/3 point locking systems are not fire rated. MICO USCH cylinder guard.Guidance for specification option: External access via MICO USCH cylinder guard with Scandinavian oval cylinders, as standard. Padlockable hasp and staple access device. |
Accessories | Not required.Stays and closers.Guidance for specification option: M100 and TS83, as standard. Removable top transom. |
Profile | 110 mm. Manufacturer guidanceFrame profile. |
FireRating | Not required. FD240. Guidance for specification option: Optional. M2M4 doors are available with a fire rating up to FD240, providing integrity fire resistance for up to 240 minutes, certified by Exova under the CERTIFIRE scheme (certificate number CF5107). |
Panic hardware | Not required. MICO Abryll panic escape. Guidance for specification option: Manual, automatic, and electromechanical deadlock single point locking. Double panic bar. Guidance for specification option: Double panic bar variant also available (panic bars fitted to both leaves of double doorsets). |
Vision panel | Not required. 203 x 356 mm. 203 x 762 mm. 457 x 457 mm. Manufacturer guidanceVision panels reduce the doorset’s fire rating to FD60. |
Louvre size | Not required. 457 x 457 mm. Manufacturer guidanceDoors with louvres are not fire rated. |
Louvre panels | Not required. Bladed. Manufacturer guidanceDoors with louvres are not fire rated. |
ConstructionMethod | Butt jointed frame. Guidance for specification option: Butt jointed frame sections, as standard. Fully welded frame. Guidance for specification option: Fully welded frame available at an extra cost. |
Opening | Outward. |
Reinforcement | 3 mm chassis system. Guidance for specification option: No adjusters. |
Weight | 75 kg/m². Manufacturer guidanceCirca . |
Lifting points | M10 lifting point per leaf. |
Hinges | 126 mm lift off hinges. 13 butt hinges. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | None |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
EN 13501-1 (Efectis)
M2M 2/3/4 CE Efectics certificate of constancy of performance
EN 13501-1 (Efectis)
M2M 2/3/4 UKCA Efectics certificate of constancy of performance
Literature
M2M4 Steel security and fire door Product Brochure
M2M4 Steel Security Door Product Specification
