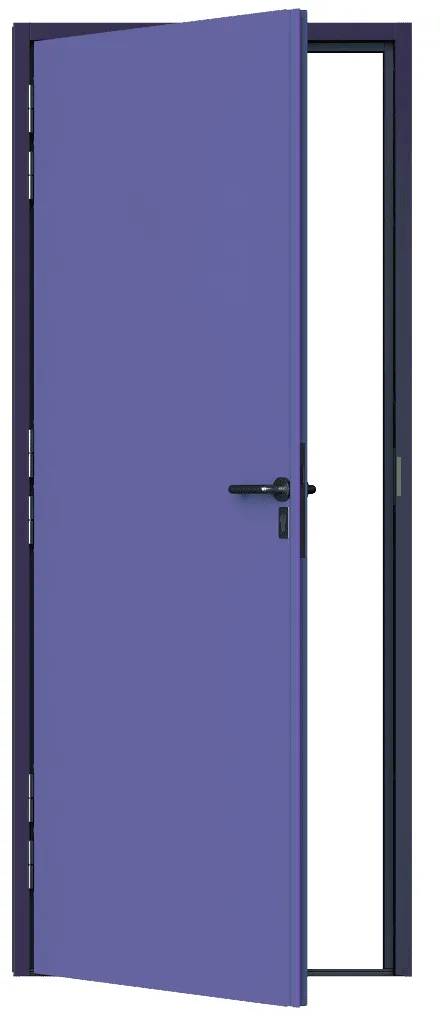

M2M+ Single Leaf Steel Doorset with Optional Fire Rating - Bespoke Steel Doorset
Verified by manufacturer 3 months ago
EN 13501-1 (Efectis)
Certificate type
Al Futtaim Element
Certificate type
Certifire Certificate
Certificate type
BRE Certificate
Certificate type
Multi-purpose, single-leaf steel doorsets with optional acoustic and/or internal fire rating.
Application

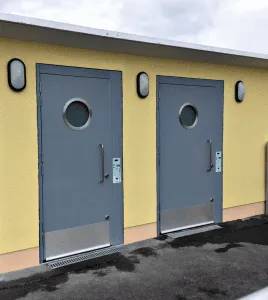

Suitable for for internal or external installation in industrial, commercial, and domestic buildings.
Description
Versatile steel door sets for internal or external installation in industrial, commercial, and even domestic buildings. M2M+ doors are bespoke-engineered in-house, allowing for a wide scope of locking options to be integrated into the doorsets, to suit each specification.
Features and benefits:
- Multi-purpose.
- Single-leaf configuration.
- Bespoke, engineered in-house.
- Polyester powder coated in a selection of colours and finishes.
- High quality wood grain effect available.
- Wide range of locking options available.
- Patented adjuster system and fast-fit frame available.
- Constructed from zintec steel, stainless steel, or magnelis.
- Side and/ or over panels available.
- Hinged or removable over panel available.
- Range of vision panels and louvres available.
- Optional ISO 10140 acoustic rating from Rw 28 to Rw 40.
- Internal Fire Rated door available up to FD240.
General information
Color | Other Beige Black Blue Bronze |
Finish | Powder-coated |
Material | Steel Zintec steel Stainless steel |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year |
Uniclass | |
CAWS | L20/55 Doorsets L20/480 Doorsets |
Specification data - Carbon steel doorsets
Configuration | Single-leaf, single-action, outward opening.Single-leaf, single-action, inward opening. |
Doorset size | Guidance for specification option: Insert requirement. Single outward opening doorsets:
Single inward opening doorsets:
|
Performance | |
Fire resistance | |
Integrity | Not required.Up to FD 240.Guidance for specification option:
|
Acoustic performance | Unrated.To BS EN ISO 10140-2, sound reduction index Rw 28 dB minimum.Guidance for specification option:
|
Thermal | 1.6 W/m²K.Guidance for specification option: Non-fire rated and without visions and louvres. Unrated. |
Frame | |
Material | Zintec steel.Stainless steel.Magnelis.Manufacturer guidanceFrame thickness: 1.5 mm. |
Threshold | Steel.Aluminium |
Finish | |
Coating | Polyester powder-coated.Guidance for specification option: As standard. Wood effect.Guidance for specification option: Optional finish available at an extra cost. |
Texture | Manufacturer guidanceConsult manufacturer and insert requirement. |
Colour | Manufacturer guidanceConsult manufacturer and insert requirement. |
Installation fasteners | Seven dog bolts per leaf (minimum). |
Frame accessories | Butt jointed frame sections.Guidance for specification option: As standard. Fully welded frame.Guidance for specification option: Optional - available at an extra cost. |
Door leaf | |
Thickness | 45 mm. |
Material | Zintec steel, 1.2 mm thick.Stainless steel 1.2 mm thick.Zintec steel, 1.5 mm thick.Stainless steel, 1.5 mm thick.Magnelis, 1.5 mm thick. |
Glazing | |
Type | Not required.Vision panel, 203 x 356 mm.Vision panel, 203 x 762 mm.Vision panel, 457 x 457 mm. |
Beading | |
Type | 10 mm astragal. |
Material | Steel. |
Fixing | Manufacturer guidanceConsult manufacturer and insert requirement. |
Finish | |
Coating | Polyester powder-coated.Guidance for specification option: As standard. Wood effect.Guidance for specification option: Optional finish available at an extra cost. |
Texture | Manufacturer guidanceConsult manufacturer and insert requirement. |
External colour | Manufacturer guidanceConsult manufacturer and insert requirement. |
Internal colour | As External.Other.Guidance for specification option: Consult manufacturer and insert requirement. |
Hardware | Not required.Stays and closers, Dorma TS72.Stays and closers, Dorma TS83.Stays and closers, Briton 2130.Stays and closers, Geze TS4000. |
Sill | Not required. Steel sill. Aluminium sill. |
Door frame profile | 90 mm deep. Guidance for specification option: Standard. 150 mm deep. Guidance for specification option: Optional. |
Locking | Union deadlock Union sashlock. Emergency escape sashlock. 5 level deadlock. MICO rimlock. |
Panic hardware | Not required. Briton 1438E push pad with single point latch. Briton 378E single point panic bar. Briton 378E 2 point vertical bars. Briton 376E and 378E 3 point panic bar. |
Louvre panels | Not required. Punched louvre cartridges. Bladed louvre cartridges. Manufacturer guidanceLouvres must be fire rated, and will decrease the fire rating to FD240. |
Over/ side panels | Not required. Fixed side panels. Fixed over panels. Removable over panels. Hinged over panel. Guidance for specification option: Doors fitted with hinged or removable over panels are not fire rated. |
Weight | 45 kg/m². Manufacturer guidanceCirca. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | United Kingdom |
Recyclability | Can be recycled |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
EN 13501-1 (Efectis)
M2M CE Certificate of constancy of performance

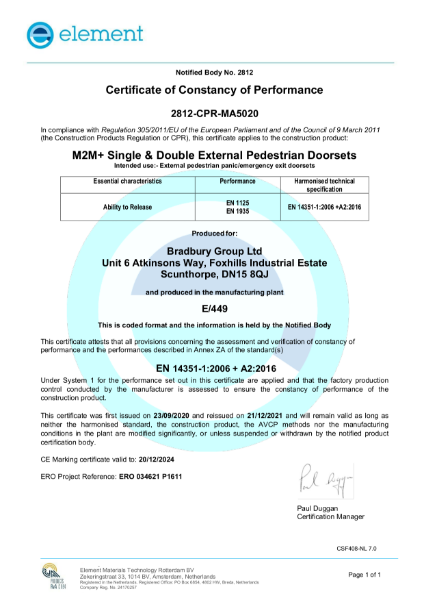

Al Futtaim Element
M2M+ CE Certifire Certificate of Constancy of Perfomance

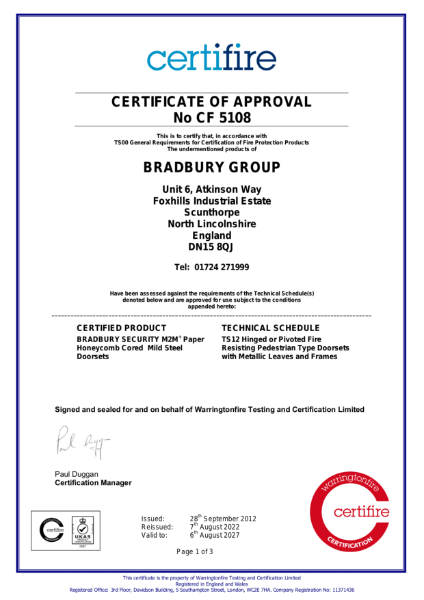

Certifire Certificate
M2M+FD CE CERTIFIRE Certificate of Approval
BRE Certificate
M2M+ PAS24:2016 Certificate of Product Approval

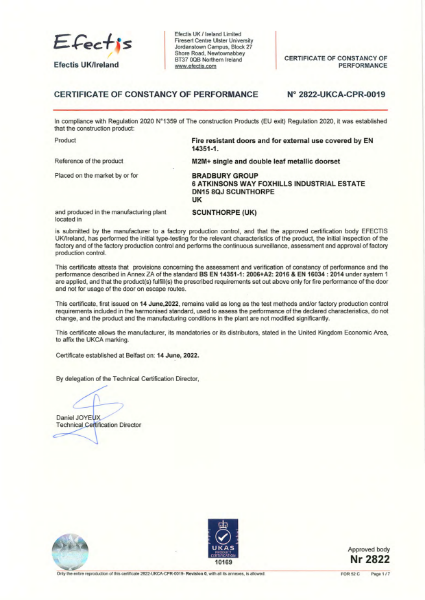

EN 13501-1 (Efectis)
M2M UKCA Efectics certificate of constancy of performance
Literature
M2M+ External fire rated product specification.
