Double Leaf PAS24 Steel Security Door
Verified by manufacturer 6 months ago
BRE Certificate
Certificate type
Double leaf, PAS24 certified Secured By Design security steel doorset.
Application
Designed for domestic and commercial properties.
Description
M2M+24 is an entry level security steel doorset which offers enhanced security and fire performance. M2M+24 steel doors are PAS24 certified, having been tested to ensure they can withstand attack from an opportunist burglar. They also come with the Secured by Design Police Preferred Specification, adding additional reassurance of the performance of our doors.
Features and benefits:
- Made-to-measure.
- Range of certified vision panels and louvres available.
- Constructed from steel (Zintec steel or Magnelis).
- Secured by Design 'Police Preferred Specification'.
- Polyester powder coated in a selection of colours and finishes.
- High quality wood grain effect available.
- Double doorset (single configuration also available).
General information
Color | Other Beige Black Blue Bronze |
Finish | Powder-coated Wood grain |
Material | Steel Guidance for specification option: Zintec, stainless steel, or Magnelis. Zintec steel |
Shape | Rectangle |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L20/480 Doorsets L20/55 Doorsets |
Specification data - Carbon steel doorsets
Configuration | Double-leaf, single-action, outward opening.Double-leaf, single-action, inward opening. |
Doorset size | Manufacturer guidanceInsert requirements:
|
Performance | |
Intruder resistance | |
Minimum requirement | To PAS 24. |
Frame | |
Material | Zintec steel, 1.2 mm thick.Zintec steel, 1.5 mm thick.Magnelis, 1.5 mm thick. |
Threshold | Steel low profile sill.Aluminium low profile sill. |
Finish | |
Coating | Polyester powder coated.Guidance for specification option: Standard finish. Wood effect.Guidance for specification option: High quality wood-grain at an additional cost. |
Texture | As coating. |
Colour | Manufacturer guidanceConsult manufacturer and insert requirements. |
Installation fasteners | Three dog bolts per leaf. |
Door leaf | |
Thickness | 45 mm. |
Material | Zintec steel.Magnelis.Manufacturer guidance1.5 mm thick. |
Glazing | |
Type | Not required.Vision panels, 203 x 762 mm.Vision panels, 203 x 508 mm.Vision panels, 203 x 356 mm.Vision panels, 203 x 1067 mm.Vision panels, 254 x 1219 mm.Vision panels, 305 x 305 mm.Vision panels, 457 x 457 mm.Vision panels, 610 x 610 mm. |
Beading | |
Type | 10 mm astragal. |
Material | Steel. |
Finish | |
Coating | Polyester powder coated.Guidance for specification option: Standard finish. Wood effect.Guidance for specification option: High quality wood-grain at an additional cost. |
Texture | As coating. |
External colour | As Frame.Other.Guidance for specification option: Various colours available. Consult manufacturer and insert requirement. |
Internal colour | As External.Other.Guidance for specification option: Various colours available. Consult manufacturer and insert requirement. |
Film thickness (minimum) | Manufacturer guidanceConsult manufacturer for details. |
Door accessories | Not required.Letter plate.Guidance for specification option: Meeting requirements of TS008:2015. |
Accessories | Not required.Bladed louvre cartridge, 305 x 1524 mm.Bladed louvre cartridge, 457 x 1524 mm.Bladed louvre cartridge, 457 x 914 mm.Bladed louvre cartridge, 457 x 457 mm.Bladed louvre cartridge, 610 x 610 mm.Closer, ASSA DC200.Closer, Assa DC300.Closer, Dorma TS72.Closer, Dorma TS83. |
Locking | Hooply Multi-point locking. Two Springbolts. |
Profile | 90 mm. Guidance for specification option: Standard. 150 mm. Guidance for specification option: Optional, consult manufacturer for details. Manufacturer guidanceFrame profile depth. |
Construction | Butt jointed frame sections. Guidance for specification option: Standard. Manufacturer guidanceFrame construction. |
Weight | 45 kg/m². Guidance for specification option: Consult manufacturer for details on exact specification. Manufacturer guidanceCirca. |
Third-party certification | Secured by Design (SBD). |
Sustainability data
Country of product manufacture | United Kingdom |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications

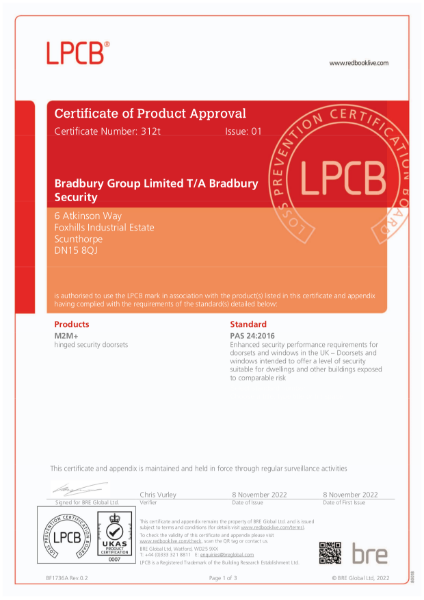

BRE Certificate
M2M+ PAS24:2016 Certificate of Product Approval
Literature

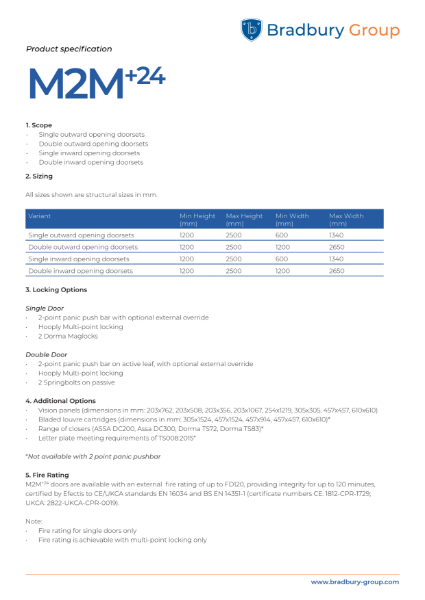

M2M+24 Steel Security Door Product Specification

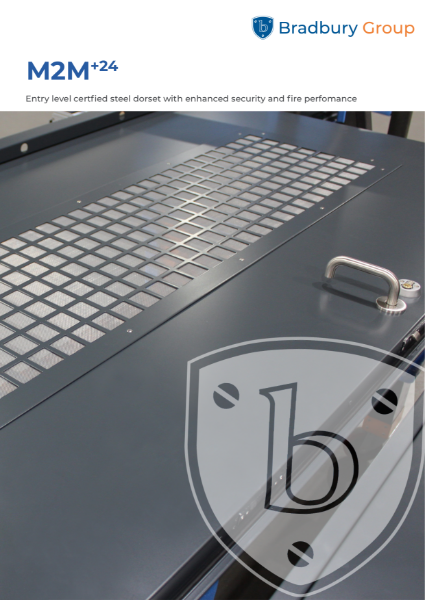

M2M+24 Entry Level Steel Doorset Product Brochure
