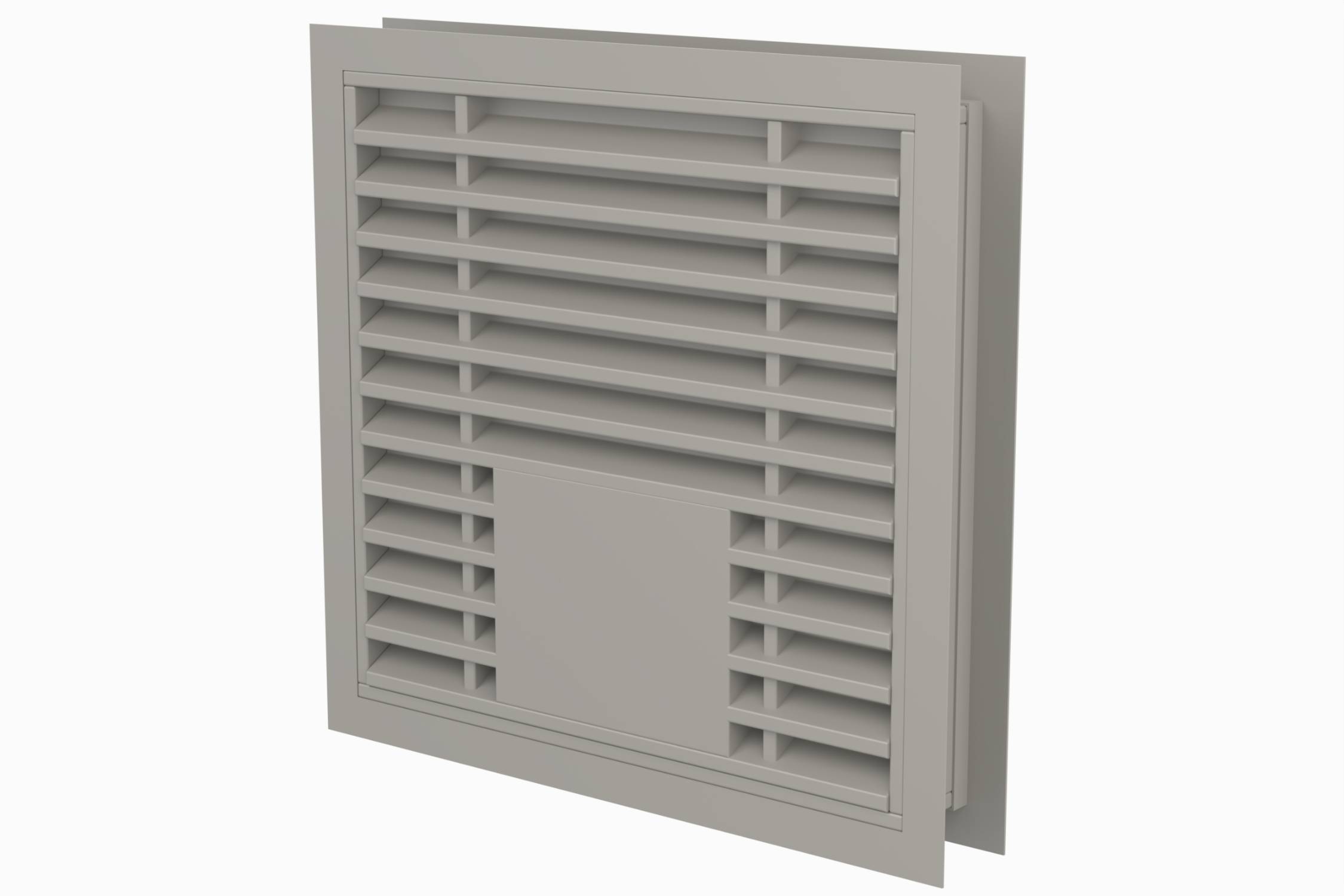

LVN20S Fire Plus Smoke Resistant Air Transfer Grille

Name: LVN20S Fire Plus Smoke Resistant Air Transfer Grille
Brand: Lorient
SKU: 6DqqcK2btU1Q5UcSTPhRaR

Verified by manufacturer 6 months ago

Lorient

Third party certifications:

Certifire Certificate
Certificate type

High performance non-vision fire plus smoke air transfer grille.

Jump to:

+44 (0)1626 834252 Website

Application

Suitable for doors.

Note: in applications where high levels of humidity or wetness are anticipated, Consult the manufacturer's Technical Department for alternatives.

Description

The LVN20S provides a unique solution to the problem of containing both fire and smoke in emergency conditions yet offering good air transfer through doors in everyday use. Using the same intumescent louvred slat configuration as the LVN20 but incorporating an electro mechanically operated smoke shutter mechanism. Can provide up to 60 minutes fire and smoke resistance

Features and benefits:

Contains cold smoke plus toxic gases remote from source of fire.
Simple installation.
Auto reset plus failsafe.
Safe low DC voltage.
Status reporting plus auto-cycling via Talkback Damper Control Monitor (DCM).
Optional audio warning facility.
Connects to fire panel plus/ or building management system (BMS).
BMS alarm notification via Alarm Monitoring System (AMS).
Nominal 5 mA current open/ closed.
Max 200 mA in operation.
Allows bi-directional airflow.
Louvred slats give privacy.
Use with talkback damper control system. Conductor hinges. Optional Alarm Monitoring System (AMS) and battery backup.
Other non-standard sizes may be available - consult the manufacturer for details.
Each damper is manufactured 2 mm less than a nominal aperture size to provide clearance when installed in a duct or other aperture of the same nominal dimensions. e.g. a 198 x 198 mm nominal size damper will suit a 200 x 200 mm aperture. Screwed into door with an aperture lined with Lorient intumescent liner (B24402).
Certifire: The upper edge of the grille shall be no higher than 800 mm from floor level. Test Report Applus 19/19940-1428: The upper edge of the grille shall be no higher than 1350 mm from floor level.

General information

Color	Silver
Material	PVC Guidance for specification option: PVC with an intumescent core. Steel Guidance for specification option: Flange. Aluminium Guidance for specification option: Flange. Manufacturer guidance Electro mechanically operated smoke shutter mechanism.
Width	200 mm 250 mm 300 mm 350 mm 400 mm
Height	Bespoke

Uniclass	Pr_30_59_94_32 Fire-resisting air transfer grilles with smoke shuttersPrimary
CAWS	L20/20 Wood flush doors L20/230 Wood flush doors L20/25 Wood panelled doors L20/250 Wood panelled doors L20/270 Wood doors L20/280 Doors L20/30 Wood doors L20/410 Wood doorsets L20/420 Wood doorsets L20/430 Wood doorsets L20/480 Doorsets L20/55 Doorsets P21/66 Door-mounted air transfer grilles P21/896 Door-mounted fire-resisting air transfer grilles P21/897 Door-mounted fire-resisting air transfer grilles with smoke shutter

Specification data - Fire-resisting air transfer grilles with smoke shutters

Standard	To BS 476-20 and BS 476-22 (fire) and BS 476-31.1:1983 (smoke).
Third party certification	Certifire CF 564.
Category	Intumescent with smoke resistant air transfer grille.
Size	200 x 200 x 20 mm 200 x 250 x 20 mm 200 x 300 x 20 mm 200 x 350 x 20 mm 200 x 400 x 20 mm 250 x 200 x 20 mm 250 x 250 x 20 mm 250 x 300 x 20 mm 250 x 350 x 20 mm 250 x 400 x 20 mm 300 x 200 x 20 mm 300 x 250 x 20 mm 300 x 300 x 20 mm 300 x 350 x 20 mm 300 x 400 x 20 mm 350 x 200 x 20 mm 350 x 250 x 20 mm 350 x 300 x 20 mm 350 x 350 x 20 mm 350 x 400 x 20 mm 400 x 200 x 20 mm 400 x 250 x 20 mm 400 x 300 x 20 mm 400 x 350 x 20 mm 400 x 400 x 20 mm Manufacturer guidance Height x width. Nominal to suit standard PVC pipes or steel ducts.
Fire resistance (minimum)	60 minutes.
Colour	Silver.
Electrical connection	Required.

Thickness	20 mm.
Free area	30% free area (approximately).
Accessories	None. Alarm Monitoring System (AMS) and battery backup.

Sustainability data

Country of product manufacture	United Kingdom

Third party certifications

Certifire Certificate

Certifire CF564
