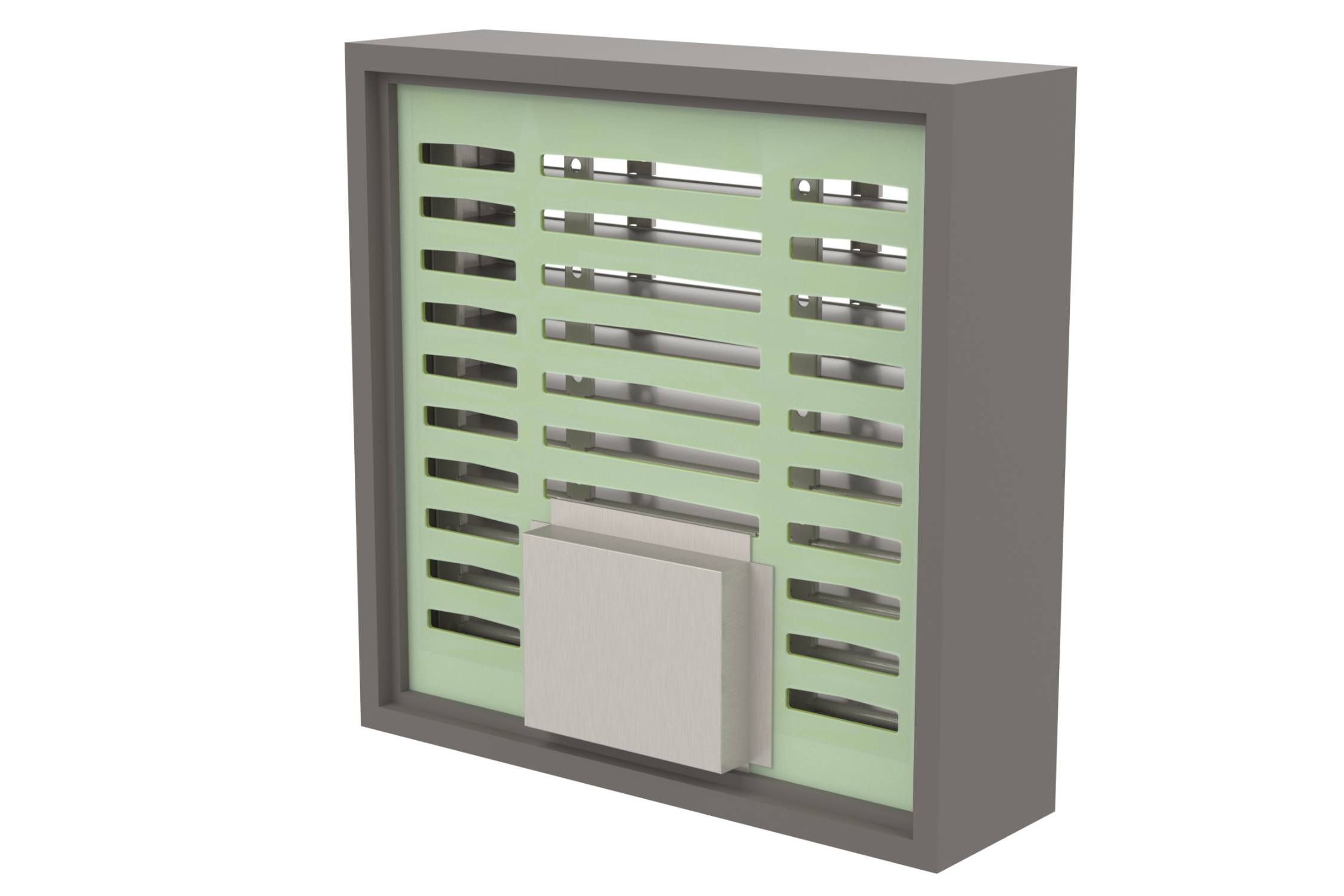

LVH44S Fire & Smoke Resistant Air Transfer Grille

Name: LVH44S Fire & Smoke Resistant Air Transfer Grille
Brand: Lorient
SKU: 3S7H4eThXYsZngX71acPM2

Verified by manufacturer 7 months ago

Lorient

High performance fire & smoke air transfer grille.

Jump to:

+44 (0)1626 834252 Website

Application

Suitable for rigid plus flexible walls; minimum wall thickness 95 mm.

Description

Fire and smoke air transfer grille which provides a solution to the problem of containing both fire and smoke in emergency conditions yet offering good air transfer through apertures in elements of building construction.

Features and benefits:

Can provide up to 120 minutes fire and smoke resistance.
Using the same intumescent configuration as the LVH44 but incorporating an electro mechanically operated smoke shutter mechanism.
Contains cold smoke plus toxic gases remote from source of fire.
Simple installation.
Auto reset plus failsafe.
Safe low DC voltage.
Status reporting plus auto-cycling via Talkback Damper Control Monitor (DCM).
Optional audio warning facility.
Connects to fire panel plus/or building management system (BMS).
BMS alarm notification via Alarm Monitoring System (AMS).
Nominal 5 mA current open/ closed.
Max 200 mA in operation.
Allows bi-directional airflow.
Use with talkback damper control system. Optional Alarm Monitoring System (AMS) and battery backup. Optional cover grille.
Other non-standard sizes may be available - consult the manufacturer for details.
Performance: Can be used to provide up to 120 minutes resistance to fire + cold smoke. EI rating of 120 minutes when used in conjunction with a cover grille.
Orientation: LVH44S is best suited in the vertical plane.
Positional requirements: The upper edge of the grille shall be no higher than 3000 mm from floor level. The lower edge of the grille shall be no closer than 400 mm to floor level.
Minimum wall depth: Minimum wall thickness 95 mm.
Free area: 30–37% free area (approximately). Size dependent.
Material: Z275 galvanized steel. Metal slats with an intumescent core. Electro mechanically operated smoke shutter mechanism.
Fixing: Each fire and smoke air transfer grille is manufactured to size. When ordering please ensure the aperture can accommodate the non-combustible housing and allow up to a 5 mm gap around the perimeter. Screwed and bedded in Lorient intumescent sealant.

General information

Color	Silver
Finish	Galvanized
Material	Steel Intumescent
Shape	Square Rectangle
Width	- Manufacturer guidance Width: 200mm - 600mm (in 50mm increments).
Height	- Manufacturer guidance Height: 150mm - 600mm (in 50mm increments).

Uniclass	Pr_30_59_94_32 Fire-resisting air transfer grilles with smoke shuttersPrimary
CAWS	U90/360 Air transfer grilles U90/360 Air transfer grilles

Specification data - Fire-resisting air transfer grilles with smoke shutters

Standard	To BS 476-20 and 22:1987 (fire); To BS EN 1364-1:2014 ;To BS EN 1364-5:2017 (fire). To BS 476-31.1:1983 (shutterplate,smoke).
Category	Intumescent with smoke shutter.
Size	200 x 150 x 95 mm. 200 x 200 x 95 mm. 200 x 250 x 95 mm. 200 x 300 x 95 mm. 200 x 350 x 95 mm. 200 x 400 x 95 mm. 200 x 450 x 95 mm. 200 x 500 x 95 mm. 200 x 550 x 95 mm. 200 x 600 x 95 mm. 250 x 150 x 95 mm. 250 x 200 x 95 mm. 250 x 250 x 95 mm. 250 x 300 x 95 mm. 250 x 350 x 95 mm. 250 x 400 x 95 mm. 250 x 450 x 95 mm. 250 x 500 x 95 mm. 250 x 550 x 95 mm. 250 x 600 x 95 mm. 300 x 150 x 95 mm. 300 x 200 x 95 mm. 300 x 250 x 95 mm. 300 x 300 x 95 mm. 300 x 350 x 95 mm. 300 x 400 x 95 mm. 300 x 450 x 95 mm. 300 x 500 x 95 mm. 300 x 550 x 95 mm. 300 x 600 x 95 mm. 350 x 150 x 95 mm. 350 x 200 x 95 mm. 350 x 250 x 95 mm. 350 x 300 x 95 mm. 350 x 350 x 95 mm. 350 x 400 x 95 mm. 350 x 450 x 95 mm. 350 x 500 x 95 mm. 350 x 550 x 95 mm. 350 x 600 x 95 mm. 400 x 150 x 95 mm. 400 x 200 x 95 mm. 400 x 250 x 95 mm. 400 x 300 x 95 mm. 400 x 350 x 95 mm. 400 x 400 x 95 mm. 400 x 450 x 95 mm. 400 x 500 x 95 mm. 400 x 550 x 95 mm. 400 x 600 x 95 mm. Manufacturer guidance Width: 200–600mm (in 50 mm increments). Height: 150–600mm (in 50 mm increments).
Fire resistance (minimum)	120 minutes.
Material and finish	Z275 galvanized steel.
Colour	Silver.
Electrical connection	Required.

Accessories	None. Alarm Monitoring System (AMS) and battery backup. Cover grille.

Sustainability data

Country of product manufacture	United Kingdom
