LUNOS Nexxt E - Heat Recovery Ventilation - Decentralised Ventilation System

Verified by manufacturer 2 days ago

Nexxt E Surface Mounted

PARTEL Variant:

A decentralised ventilation unit with heat recovery, due to its high volume flow it is ideally suited for use in schools, offices, hotels, doctors' surgeries, but also for flats and houses.

Jump to:
+44 20 3740 1918 Website

Application

The LUNOS Nexxt E is a decentralised heat recovery ventilation system designed for larger spaces.


Suitable for:

  • Commercial spaces such as schools, offices, hotels and hospitals.
  • Suitable for residential applications – apartments and houses.
  • Suitable for new builds and retrofits.
  • Installation on walls with a minimum thickness 110 mm (surface mounted) or 280 mm (flush mounted).

Description

With its low power requirements, the Nexxt E is extremely energy-efficient, enabling reduced power consumption. Its built-in control system ensures smooth coordination between its components. Additionally, the Nexxt E comes with humidity-temperature sensors, providing automatic control and efficient ventilation with humidity protection.


Features and benefits:

  • Achieves Energy Efficiency Class A+ according Ecodesign Directive.
  • Up to 83% heat recovery.
  • Airflow of up to 110 m³/h.
  • Decentralised ventilation – easy installation for new or existing buildings.
  • Controlled via humidity or temperature sensors as a standard and optionally also via a CO2 sensor.
  • Surface and flush mounting possible.

General information

Color

White

Material

Plastic

Shape

Rectangle

Length

170 mm

Guidance for specification option:

Device

66 mm

Guidance for specification option:

Inner Screen

72 mm

Guidance for specification option:

Outer Hood

Width

480 mm

Guidance for specification option:

Device.

510 mm

Guidance for specification option:

Inner screen.

235 mm

Guidance for specification option:

Outer hood.

Height

480 mm

Guidance for specification option:

Device.

510 mm

Guidance for specification option:

Inner screen.

205 mm

Guidance for specification option:

Outer hood.

Warranty description

30 year

Uniclass

Pr_65_67_29_23 Domestic fan unitsPrimary

CAWS

U90/413 Ventilation fan units

U90/413 Ventilation fan units

Product range

Ventilation Systems

Specification data - Domestic fan units

Standards

-

Performance testing

To BS EN 13141-8.

Duty

4–31 L/s.

Mounting

Wall, surface.

Controls

Integral humidity sensor.

Free area

Equivalent free area (EN 13141-1): 4000 mm2.

SoundPressure

At 1 m distance: 12–49 dB(A); At 3 m distance: 2–39 dB(A).

Ingress protection (IP) rating

IP22.

Voltage

200–240 V (50/60 Hz).

Guidance for specification option:

Standard.

115 V (60 Hz).

Guidance for specification option:

On request.

Minimum wall thickness

110 mm.

Integral accessories

Wall-tubes for the series 160, two-way outer hood, Nexxt inner screen with operating element, Nexxt installation housing and Nexxt surface-mounting set.

Energy rating

Energy efficiency class A.

Dimensions

Core drilling: 162 mm; Minimum installation length: 110 mm.

Heat

Degree of heat supply: 83% (maximum). Heat supply level to EN 13141-8: 73%.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

Europe

Material

Plastic

Literature

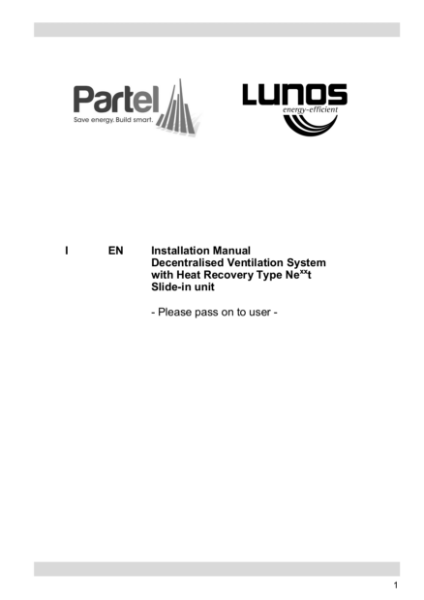

LUNOS Nexxt E Installation Guide

LUNOS Nexxt E Installation Guide

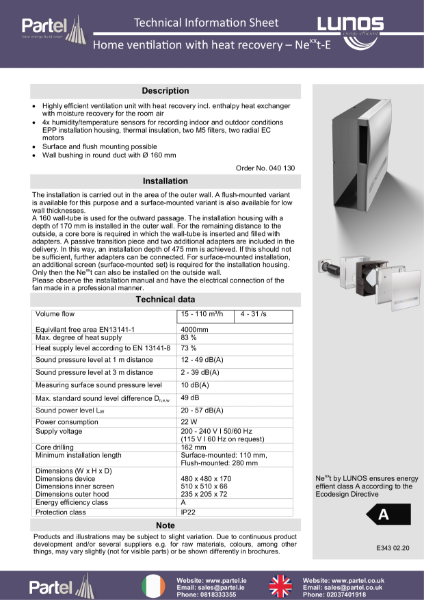

LUNOS Nexxt E Technical Data Sheet

LUNOS Nexxt E Technical Data Sheet
