LUNOS ego - Heat Recovery Exhaust Fan - Decentralised Ventilation System
Verified by manufacturer 3 months ago
The LUNOS ego is an all-in-one room ventilation system with a built-in, regenerative heat recovery core, perfect for bathrooms, WCs, and kitchens that require continuous heat recovery ventilation.
Application
The ego can be used in new buildings and in renovation projects.
Suitable for:
- Installation in bathrooms, WCs and kitchens.
- Installation on walls with a minimum thickness 300 mm.
Description

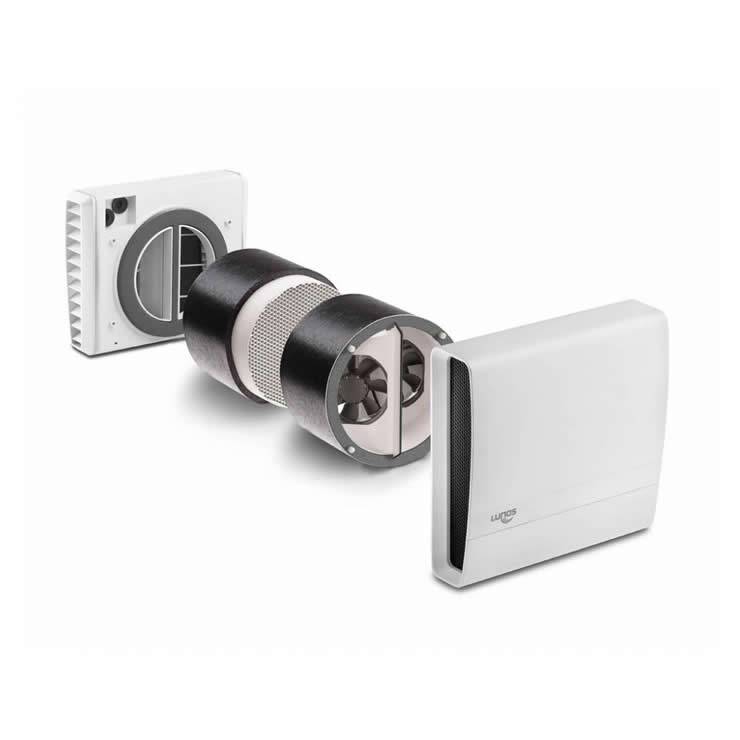

The LUNOS ego decentralised ventilation system features a regenerative heat recovery core based on the principle of reversing air flow. It incorporates two fans in one unit, with each fan operating in opposite directions to simultaneously move supply and exhaust air.
Moreover, this system can be switched to an exhaust air mode, with a very high flow rate of 45 m³/h discharged, enabling swift inflow of fresh air into a room.
Features and benefits:
- Achieves Energy Efficiency Class A according to the Ecodesign Directive.
- Up to 82% heat recovery.
- Airflow of up to 20 m³/h.
- Decentralised ventilation – easy installation for new or existing buildings.
- Quiet operation.
General information
Color | White |
Material | Plastic |
Length | 300 mm Manufacturer guidanceminimum installation length |
Width | 154 mm Guidance for specification option: Built-in device. 217 mm Guidance for specification option: Screen. |
Height | 154 mm Guidance for specification option: Built-in device. 237 mm Guidance for specification option: Screen. |
Warranty description | 30 year |
Uniclass | |
CAWS | U90/413 Ventilation fan units U90/413 Ventilation fan units |
Product range |
Specification data - Domestic fan units
Standards | |
Performance testing | To BS EN 13141-8. |
Duty | Supply air: 1–6 L/s; Exhaust air: 13 L/s. |
Mounting | External wall. |
Controls | LUNOS Smart Comfort control. |
Free area | Equivalent free area (EN 13141-1): 4000 mm2. |
SoundPressure | At 1 m distance: 20–43 dB(A); At 3 m distance: 10–36 dB(A). |
Ingress protection (IP) rating | IP22. |
Voltage | 12 V d.c. |
Integral accessories | System includes: Wall-tubes for the series 160, Smart Comfort Control, two-way outer hood transformers. |
Energy rating | Energy efficiency class A. |
Dimensions | Core drilling: 162 mm; Minimum installation length: 300 mm. |
Heat | Degree of heat supply: 82% (maximum). Heat supply level to EN 13141-8: 75%. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Material | Plastic |
Literature
LUNOS ego Installation Guide

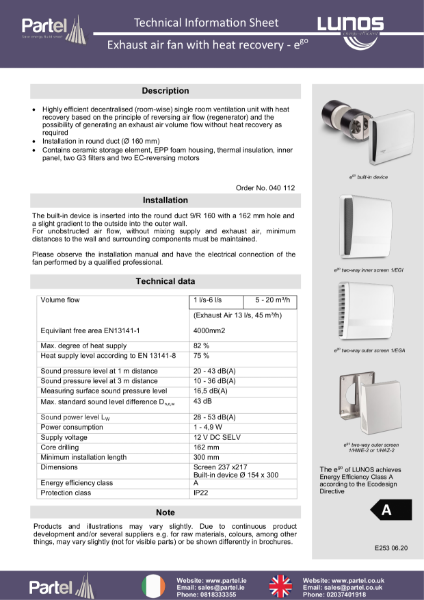

LUNOS ego Technical Data Sheet
