LUNOS RA 15-60 - Exhaust Air System - Mechanical Extract Ventilation System
Verified by manufacturer 3 months ago
An exhaust air ventilation system equipped with an EC motor, it is ideal for extracting air from functional rooms such as kitchens and bathrooms.
Application
The LUNOS RA 15-60 is a decentralised mechanical extract ventilation system designed for residential applications.
Suitable for:
- Functional rooms such as bathrooms, kitchens or utility rooms.
- New builds and retrofit.
- Installation on walls with a minimum thickness 170 mm.
Description
The LUNOS RA 15-60 is predestined for hybrid ventilation, in which ventilation with heat recovery is combined with extract air technology in a cost and energy-efficient way. It’s aerodynamically optimised fan blades in combination with multi-surface sound absorbers, provide incredibly low running noise and optimum sound insulation from the outside. Depending on the control programme, the air volume can be adjusted in three or four stages (15, 30, 45 and 60 m³/h).
Features and benefits:
- Low sound level.
- High efficiency.
- RoHS and WEEE compliant.
- EeEV and DIN 1946-6 compliant.
- Can be used in low-energy buildings.
General information
Color | White |
Material | Plastic |
Shape | Rectangle |
Length | 147 mm Guidance for specification option: Built-in device. |
Width | 154 mm Guidance for specification option: Built-in device. |
Height | 154 mm Guidance for specification option: Built-in device. |
Warranty description | 30 year |
Uniclass | |
CAWS | U90/413 Ventilation fan units U90/413 Ventilation fan units |
Product range |
Specification data - Domestic fan units
Duty | 4–17 L/s. |
Mounting | External wall. |
Controls | LUNOS Smart Comfort Controller 5/SC-FT. |
Free area | Equivalent free area (EN 13141-1): 4000 mm2. |
SoundPressure | At 1 m distance: 16–37 dB(A); At 3 m distance: 6–27 dB(A). |
Ingress protection (IP) rating | IP22. |
Voltage | 12 V d.c. |
Integral accessories | System includes: LUNOS standard inner screen, wall-tubes for the series 160, outer grille, Smart Comfort Control, transformers. |
Dimensions | Core drilling: 162 mm; Minimum installation length: 180 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Material | Plastic |
Literature

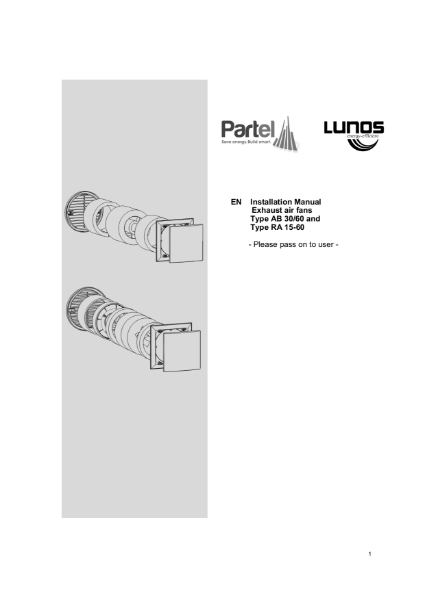

LUNOS RA 15-60 Install Guide

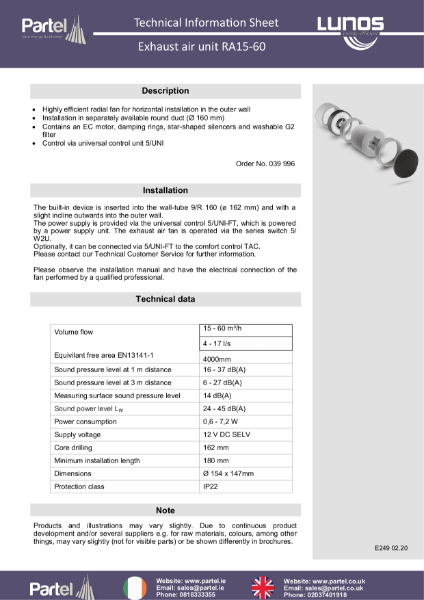

LUNOS RA 15-60 Technical Data Sheet
