Lomanco Set EVL1400 + BEB14
Application

  • Recommended for apartment houses.
  • For use in bathrooms, lavatories and kitchens.
  • For installation to flat roofs.

Description

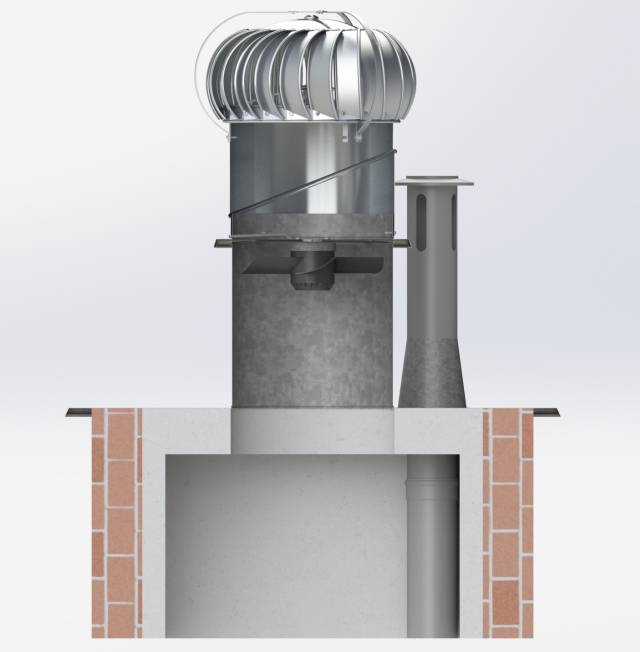

14" diameter, externally braced aluminium ventilation turbine and auxiliary electric ventilator, suitable for flat roofs.

Features and benefits:

  • System combines a high quality ebm-papst auxiliary electric ventilator and an externally braced 14" turbine.
  • Supplied with electrical box for easy installation.
  • Low electricity consumption and therefore low operating costs.
  • Optional sensor connectivity (humidity, CO2, PIR) or timer; consult manufacturer for details.
  • Auxiliary ventilator will ensure or increase the turbine’s immediate output during adverse weather conditions or poor current performance. Note: The ventilators serve to intensify ventilation, and are not designed for continuous operation.
  • EVL sets are equipped with connecting necks for easy installation and an extra durable, externally braced BEB 14" turbine.
  • Permanently lubricated upper and lower ball bearings ensure long life, with minimal maintenance required.
  • Vari-pitch base adjusts to a roof pitch of 0–45°.
  • Can withstand winds of up to 110 mph.
  • Volumetric flow rate: 1400 m³/h.
  • Lifetime transferrable warranty for residential use (15 year-warranty for commercial use); two-year warranty on all accessories.

It is recommended to place the ventilator below the neck or extension part, not directly under the turbine.

Applications:

  • Recommended for apartment houses.
  • For use in bathrooms, lavatories and kitchens.
  • For installation to flat roofs.

Components:

  • Reinforced turbine (BEB14).
  • Adjustable neck.
  • Electric ventilator.
  • Octagonal base.
  • Screws/ fixings.

General information

Uniclass 2015

Pr_30_59_29_77 Rotary roof ventilatorsPrimary

CAWS

H30/10 Fibre cement

H30/110 Fibre cement

H30/120 Fibre cement

H31/10 Metal

H31/110 Metal

H31/120 Metal

H32/110 GRP

H32/111 PVC-U

H32/115 Polycarbonate

H32/120 Plastics

H43/10 Metal insulating sandwich panel

H43/120 Metal insulating sandwich panel

H60/105 Clay roof tiling

H60/110 Clay roof tiling with counterbattens

H60/120 Concrete roof tiling

H60/125 Concrete roof tiling with counterbattens

H60/3 Roof tiling

H60/5 Roof tiling with counterbattens

H61/105 Roof slating

H61/110 Roof slating with counterbattens

H61/3 Roof slating

H61/5 Roof slating

H62/105 Roof slating

H62/110 Roof slating with counterbattens

H62/125 Roof slating

H62/130 Roof slating with counterbattens

H62/145 Roof slating

H62/150 Roof slating with counterbattens

H62/3 Roof slating

H62/5 Roof slating with counterbattens

H64/10 Wood shingle/ shake roofing with counterbattens

H64/110 Wood shingle/ shake roofing

H64/120 Wood shingle/ shake roofing with counterbattens

H64/5 Wood shingle/ shake roofing

H65/10 Reconstituted slate roof tiling with counterbattens

H65/105 Clay roof tiling

H65/110 Clay roof tiling with counterbattens

H65/115 Concrete roof tiling

H65/120 Concrete roof tiling with counterbattens

H65/125 Reconstituted slate roof tiling

H65/130 Reconstituted slate roof tiling with counterbattens

H65/135 Ceramic slate roof tiling

H65/140 Ceramic slate roof tiling with counterbattens

H65/3 Roof tiling

H65/5 Roof tiling with counterbattens

H65/8 Reconstituted slate roof tiling

H67/110 Metal roof tiling

H67/120 Metal roof tiling with counterbattens

H67/3 Metal roof tiling

H67/5 Metal roof tiling with counterbattens

U90/413 Ventilation fan units

U90/42 Ventilation fan units

Specification data - Rotary roof ventilators

Product Reference

Lomanco Set EVL1400 + BEB14

Accessories

None

Base for splitter or extension parts

Galvanized steel.

Electromechanical regulation flaps, electric

See 'Options' for details.

Electromechanical regulation flaps, mechanical

See 'Options' for details.

Extension part, 500 mm-high

Galvanized steel.

Extension part, 1000 mm-high

Galvanized steel.

Splitter

Galvanized steel; connects two turbines to one outlet. Total height: 680 mm.

Universal base, black

Aluminium; suitable for profiled metal roofs and tiled roofs.

Universal base, brown

Aluminium; suitable for profiled metal roofs and tiled roofs.

Universal base, red

Aluminium; suitable for profiled metal roofs and tiled roofs.

Standard product features

Colour/ finish:

Aluminium.

Technical characteristics:

  • Nominal voltage: 230 V.
  • Frequency: 50/ 60 Hz.
  • Speed: 1300 rpm.
  • Maximum input power: 35 W.
  • Maximum back pressure: 35 Pa.
  • Maximum ambient temperature: -30 to +50°C.
  • Sound pressure level: 58 dB(A).
  • Air flow: 1400 m³/h.
  • Ingress protection: IP 54.

Product Options

Accessories:

- Electromechanical regulation flaps:

  • Material: Galvanized steel.
  • Allows for control of the amount of air exhausted directly below the turbine. This is an indirect control of the turbine, reducing exhausted air.
  • Two positions: Closed or open.
  • Not supplied with fitted cabling and switches.
  • Flap height: 400 mm (14" diameter version).
