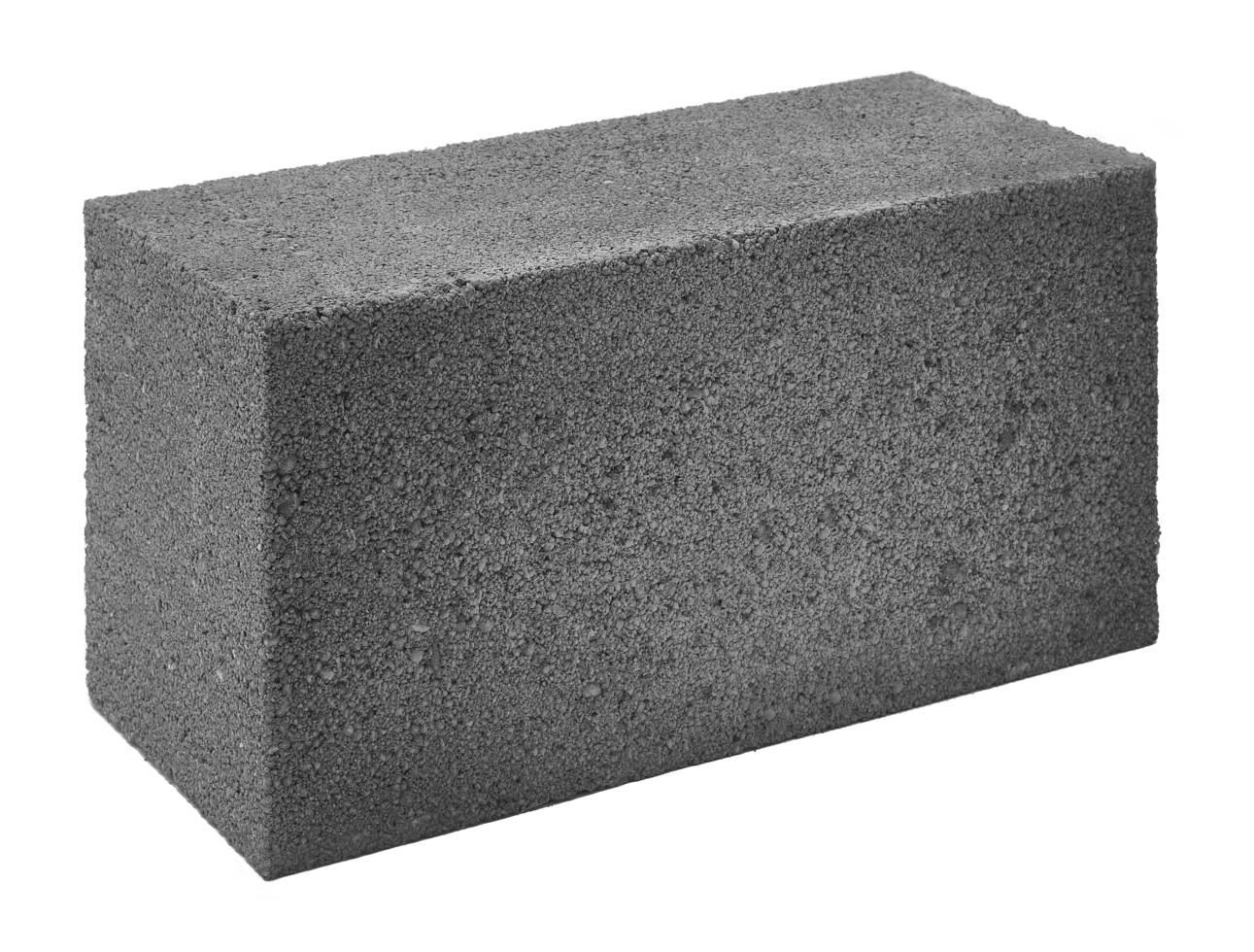

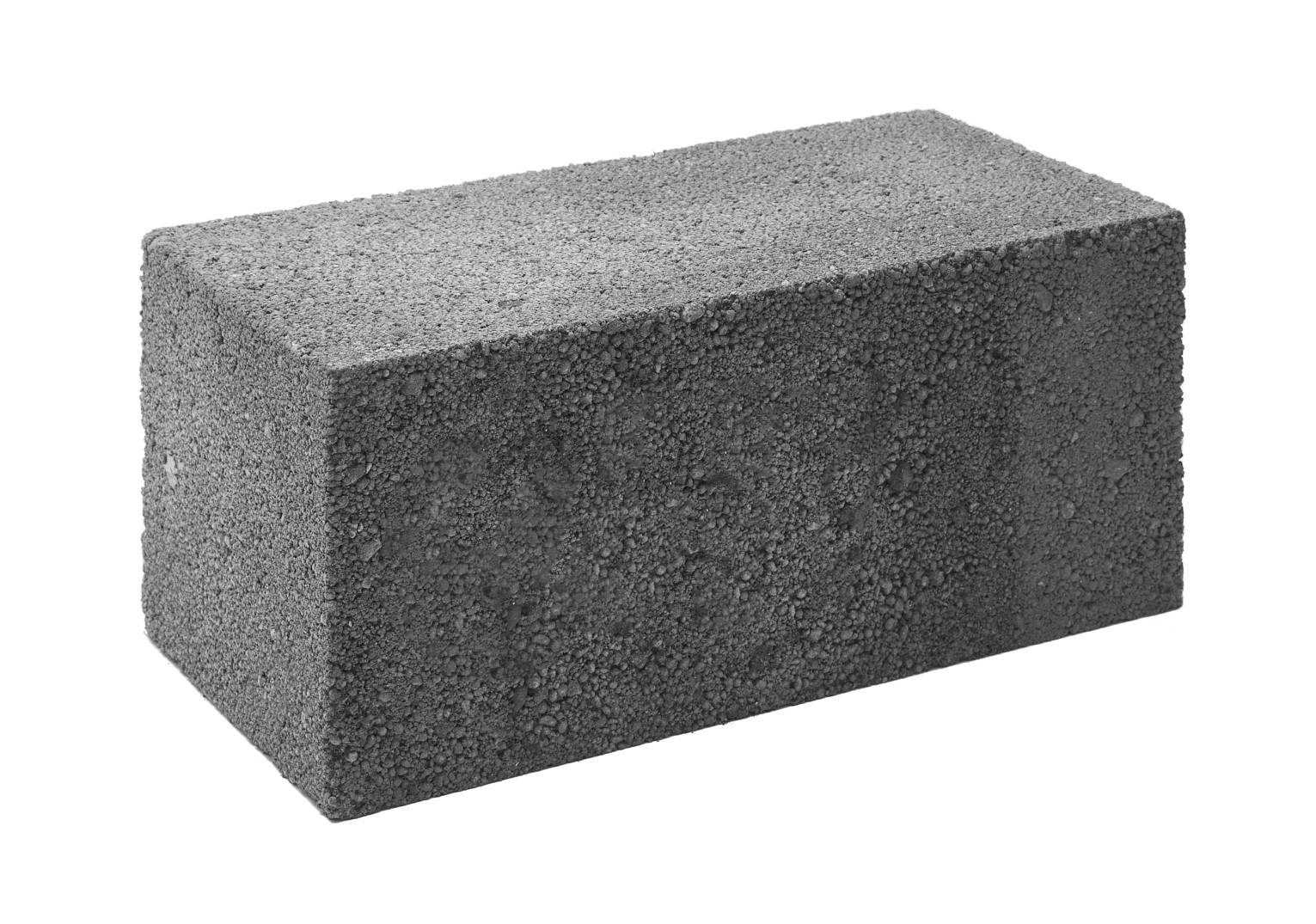

Lignalite 190 mm 7.3 N/mm² Concrete Block - Lightweight Block
Verified by manufacturer 2 days ago
BSI Kitemark
Certificate type
Close textured, lightweight paint grade concrete blocks.
Application
Lignalite is ideal when direct application of paint is needed. It is suitable for the construction of both loadbearing and non-loadbearing walls in locations such as:
- The inner leaves of external cavity wall
- Internal walls, including fire break walls
- Separating walls
Description
The 190 mm Lignalite blocks are produced using ultra-lightweight aggregates, resulting in a product that conforms to 20 kg manual handling guidelines. Ideal for all types of commercial project, their close-textured surface is perfect for direct decoration.
Manufactured to BS EN-771-3, Lignalite blocks are light and easy to lay with a technical performance fulfilling most applications.
Features and benefits:
- Suitable for use in aesthetic applications where the blockwork is required to be directly painted
- Conforms to the 20 kg single lift guidance of the Construction (Design and Management) Regulations
- Can be used in loadbearing and non-loadbearing walls
- Allows large panels to be designed, reducing the need for wind posts or other structural framing
- Lightweight
- High technical performance
- For use internally, above and below ground
- Credits available under BREEAM
- BSI Kitemarked to BS EN 771-3
Designs using 190mm Lignalite blocks will result in larger panel sizes with reduced vertical or horizontal supports compared to more slender walls. This provides an immediate cost saving as well as improving the continuity of the blockwork construction process. As fewer constructional supports are required, the number of connecting ties and movement joints are also reduced.
General information
Color | Grey |
Finish | Textured Guidance for specification option: Close textured, paint grade. |
Material | Concrete |
Shape | Rectangle |
Length | 440 mm |
Width | 190 mm |
Height | 215 mm |
Uniclass | |
CAWS | E60/297 Proprietary infill blocks F10/18 Concrete facing blockwork F10/355 Concrete common blockwork |
SKU Code | LL1907 |
Product range |
Specification data - Aggregate concrete blocks
Classification data | |
Standard | To BS EN 771-3. |
Block description | Loadbearing units for internal walls. |
Appearance | Medium grey to buff in colour with a close texture. |
Configuration | Group 1. |
Compressive strength | |
Mean value | 7.3 N/mm². |
Category | 1. |
Thermal conductivity | 0.37 W/m·K at 3% moisture content. |
Thermal resistance | 0.51 m²K/W. |
Work sizes (length x width x height) | 440 x 190 x 215 mm. |
Tolerance category | D1. |
Density | |
Net dry density | 1030 kg/m³. |
Reaction to fire | Class A1. |
Water vapour permeability | 5/15 µ. |
Moisture movement | <0.9 mm/m. |
SpecificHeatCapacity | 1000 J/kg/K. |
Sound reduction index | No finish: 45 dB Rw; painted: 51 dB Rw. |
Fire resistance | Four hours (loadbearing and non-loadbearing). |
Air tightness | Painted (one face): 9.1 m³/hr/m²; painted (two faces): 4 m³/hr/m². |
Unit weight | 19.1 kg. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Concrete |
Recyclability | 100% |
Expected Life | 100 year Guidance for specification option: When properly constructed, the durability of walls built using Lignalite will match that of walls of traditional masonry and will fulfil their intended function for the life of the building in which they have been installed (typically 100 years). The blocks themselves will require no maintenance. Maintenance for walls will normally include the replacement of sealant in movement joints and at junctions / openings. Repointing for walls that are exposed to the elements may be necessary towards the end of its service life. |
Product certifications
BSI Kitemark
BSI Kitemark Certificate
Literature
Literature type
BES 6001 Certificate

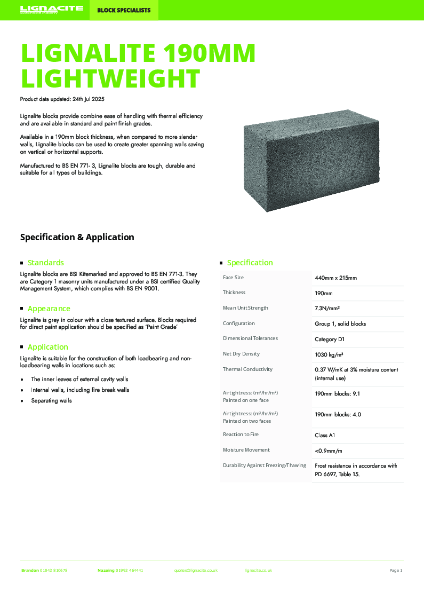

Lignalite Data Sheet
