Lignacite 100 mm 3.6 N Concrete Blocks - Fine-Textured Loadbearing Units
Verified by manufacturer 1 day ago
BSI Kitemark
Certificate type
Part of a range of fine-textured loadbearing units, suitable for facing and general purpose applications.
Application
For walls that are to be directly decorated, Paint Grade blocks should be specified.
For walls built fair, Fair Face blocks should be specified.
Walls of 210-215 mm thickness are recommended to be constructed using two leaves of 100 mm Lignacite blocks laid back-to-back and suitably tied. This construction is known as a collar-jointed wall.
Can be used in the following locations:
- The inner leaves of external cavity walls;
- Internal walls, including fire break walls and separating walls.
If required, the blocks can be drylined or plastered.
Description
Lignacite concrete blocks are fine textured and available with a paint grade or fair face finish. Manufactured to BS EN 771-3, Lignacite blocks are robust and durable with a technical performance that makes them well-suited to most applications.
The blocks’ unique mix design (consisting of cement, fine aggregates and recycled graded-wood particles) accounts for their outstanding technical performance.
The 140 mm width version (known as Lignacite SP; specified separately) has a specially formulated mix that optimises the block density to produce a solid block with a unit weight of less than 20 kg. There is a slight colour difference between Lignacite SP and 100 mm Lignacite blocks.
Features and benefits:
- Loadbearing.
- For use internally in fair face and directly decorated walls.
- High levels of air tightness, sound insulation and fire resistance.
- Credits available under BREEAM.
- BSI Kitemarked to BS EN 771-3.
- Can be used to satisfy the requirements of Part L of the Building Regulations.
General information
Color | Grey |
Finish | Textured |
Material | Concrete Aggregate Manufacturer guidanceMedium density aggregate concrete. |
Shape | Rectangle |
Length | 440 mm |
Width | 100 mm |
Height | 215 mm |
Uniclass | |
CAWS | E60/297 Proprietary infill blocks F10/18 Concrete facing blockwork F10/355 Concrete common blockwork |
SKU Code | L1003 |
Product range |
Specification data - Aggregate concrete blocks
Classification data | |
Standard | To BS EN 771-3. |
Block description | Common block (standard). Guidance for specification option: For locations where the surface will not be visible e.g. for plastering or use below ground. Fair-faced block. Guidance for specification option: For locations requiring a consistent colour and close textured block face. Paint-grade block. Guidance for specification option: For locations where a consistent close textured face is required as a background for direct painting. Manufacturer guidanceFine textured, loadbearing units for facing and general purpose applications. |
Appearance | Medium grey in colour with a fine textured surface. |
Configuration | Group 1. |
Compressive strength | |
Mean value | 3.6 N/mm². |
Category | 1. |
Thermal conductivity | 0.90 W/m·K at 3% moisture content. Guidance for specification option: Internal use. |
Thermal resistance | 0.111 m²K/W at 3% moisture content. |
Work sizes (length x width x height) | 440 x 100 x 215 mm. Guidance for specification option: Solid only. Unit weight: 14.9 kg. |
Tolerance category | D1. |
Density | |
Net dry density | 1570 kg/m³. |
Reaction to fire | Class A1. |
Water absorption by capillarity | 5/15 µ. |
Moisture movement | <0.7 mm/m. |
Weighted sound reduction index, Rw | No finish: 46 dB; paint finish: 47 dB. |
Fire resistance | Non-loadbearing wall (criteria E1): 2 hours; loadbearing wall (criteria RE1): 2 hours. Guidance for specification option: See manufacturer's literature for further examples. |
Third-party certification | BSI Kitemark approved KM 09694. |
Air tightness | No finish: 3.0 m³/h/m²; paint finish (one side): 0.5 m³/h/m². |
Unit weight | 14.9 kg. Guidance for specification option: Laid weight including mortar: 159 kg/m². |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Concrete Aggregate Manufacturer guidanceMedium density aggregate concrete. |
| Carbon dioxide equivalent | |
Carbon dioxide equivalent, as defined in BS EN 15804 Self-declared | |
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/m²) Stage:A1–A3 ('Production stage') Normalised unit : 0.133 (kg CO₂ eq/kg) Declared unit : 20.9 | |
Recyclability | 100% |
Expected Life | 100 year Guidance for specification option: When properly constructed, the durability of walls built using Lignacite products will match that of walls of traditional masonry and will fulfil their intended function for the life of the building in which they have been installed (typically 100 years). The concrete blocks themselves will require no maintenance. Maintenance for walls will normally include the replacement of sealant in movement joints and at junctions / openings. Repointing for walls that are exposed to the elements may be necessary towards the end of their service life. |
Product certifications
BSI Kitemark

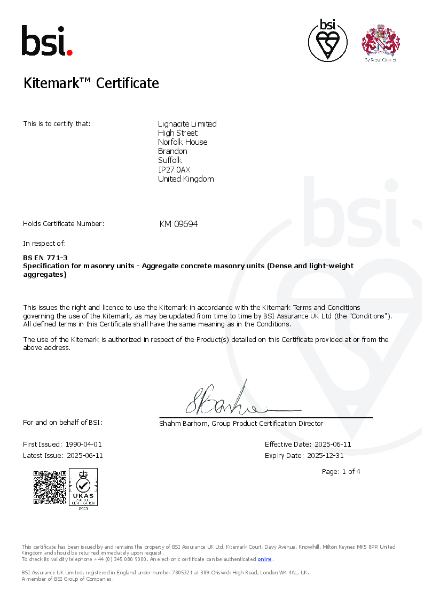

BSI Kitemark Certificate
Literature
Literature type

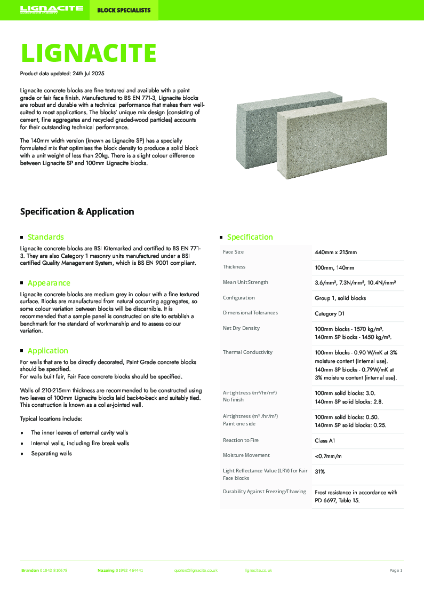

Lignacite Range Data Sheet

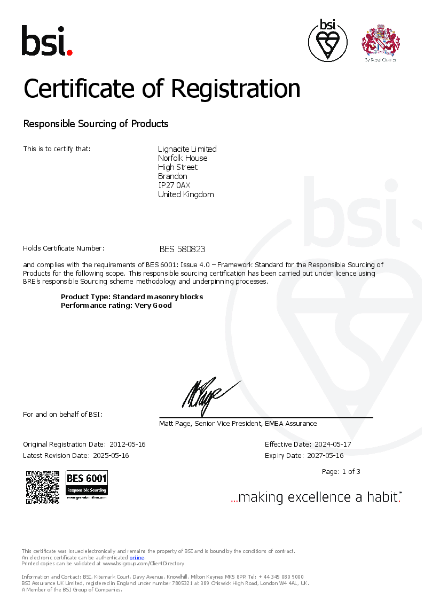

BES 6001 Certificate
