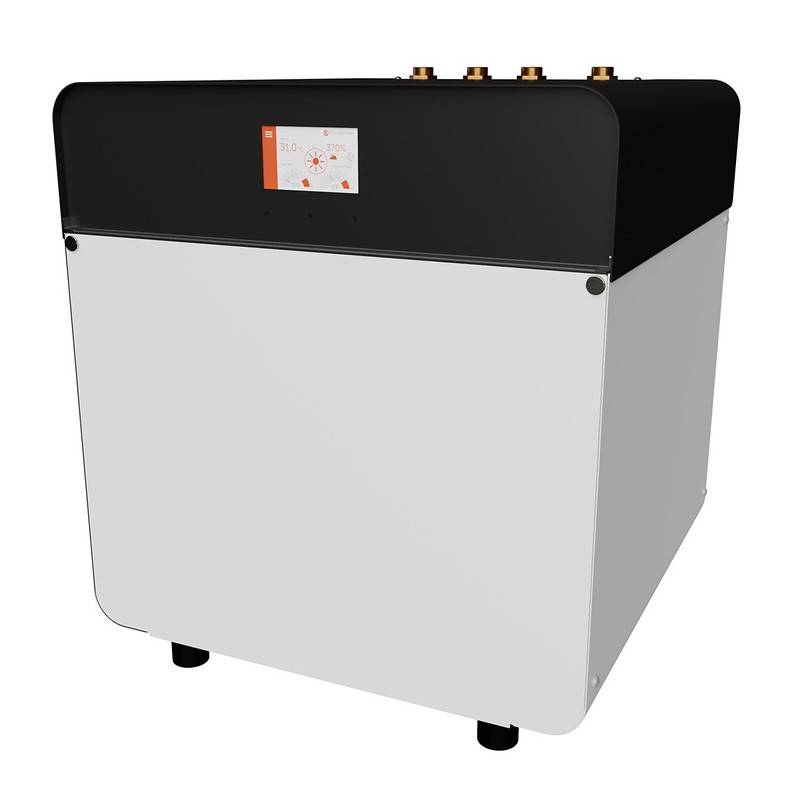

Kensa Shoebox NX Heat Pump
Verified by manufacturer 2 days ago
3 kW Single Phase
3 kW Single Phase
Space heating and domestic hot water heat pump, available in 2.85 and 5.8 kW outputs.
Application
Suitable for newbuild and retrofit applications.
Description
The Kensa Shoebox NX heat pumps are designed to provide space heating and domestic hot water for Newbuild and Retrofit
applications.
The Shoebox NX heat pump is designed specifically to operate with low noise levels.
The Shoebox NX heat pump comes complete with a ground-side water pump internal to the unit, reducing the complexity of the installation. The Shoebox NX has low sound emissions compared to other heat pumps on the market allowing for flexibility in installation location.
Kensa heat pumps use low-grade renewable energy. Each heat pump concentrates this energy into a high-temperature output to provide heating and hot water to the dwelling.
All shoebox NXs come with integrated nonreturn valves as standard.
As a UK manufacturer, Kensa offers a high quality product that is supported by industry-leading technical support to ensure the application engineering is performed to the highest standard.
Features and benefits:
- 2.85 or 5.8 kW output.
- Quiet operation.
- Low running costs.
- High SCOP.
- A++ ErP (3 kW) and A+++ ErP (5 kW).
- Simple installation.
- UK manufactured.
- Integral vibration dampening.
- Low power consumption.
- Single phase.
- Small footprint.
- Particularly suitable for Networked Heat Pumps.
General information
Color | White Grey |
Material | Steel |
Shape | Rectangle |
Length | 570 mm |
Width | 554 mm |
Height | 627 mm |
Warranty description | Two year Guidance for specification option: Controller and water pumps. Five year Guidance for specification option: Core heat pump unit (refrigeration components). |
Uniclass | |
CAWS | T90/525 Ground heat exchangers T90/525 Ground heat exchangers |
SKU Code | S3NX-P0K |
Specification data - Ground source heat pumps
Classification data | |
Loop depth | Manufacturer guidanceConsult manufacturer and insert requirements. |
Pipe diameter | 22 mm. |
Borehole diameter | Manufacturer guidanceConsult manufacturer and insert requirements. |
Thermal | 2.85 kW. Manufacturer guidanceNominal thermal kW rating. |
Power consumption | 0.65 kW. |
CoefficientOfPerformance | To BS EN 14511, 4.40. |
Flowrate | 7.9 L/min (brine); 7.9 L/min (heating water). Guidance for specification option:
|
PressureDrop | 5.9 kPa (brine); 2.8 kPa (heating water). Guidance for specification option:
Manufacturer guidancePressure drop kPa at design flow rate. |
WaterInletTemperatureRange | -5℃ to 15℃. Manufacturer guidanceMin–max inlet temperature. |
Heating secondary flow temperature (UFH) | 65℃. |
RatedVoltage | 220–240 V (50 Hz). |
Power supply | 16 A. Manufacturer guidanceRating amps. |
RatedCurrent | 5.13 A. Guidance for specification option:
Manufacturer guidance(Maximum) amps. |
Refrigerant | R134A. Manufacturer guidanceRefrigerant process medium. |
InternalRefrigerantVolume | 0.725 kg. Manufacturer guidanceFill volume. |
Compressor | Scroll. |
Dimensions | 627 x 554 x 570 mm. Manufacturer guidanceHeight (adjustable) x width x depth. |
Dry weight | 86 kg. |
Rating | A++. Guidance for specification option:
Manufacturer guidanceErP. Performance based on average climate at 35℃. |
Overall sound power level | 40.5 dB(A). |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Steel |
Recyclability | Refer to Installation Manual |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
Literature type
Shoebox NX

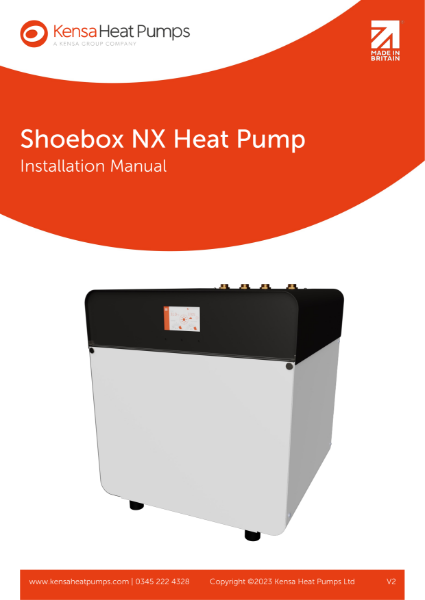

NX Heat Pump Installation and Commissioning
NX Heat Pump Operators Instructions

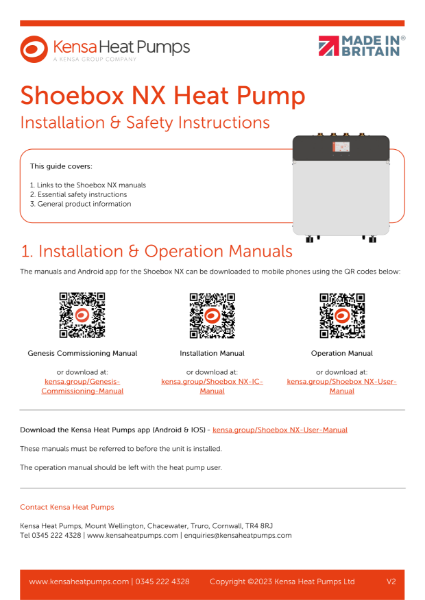

Shoebox NX safety instructions
