Large ground source heat pump with A++ energy-related product (ErP) rating.
Suitable large or commercial buildings.

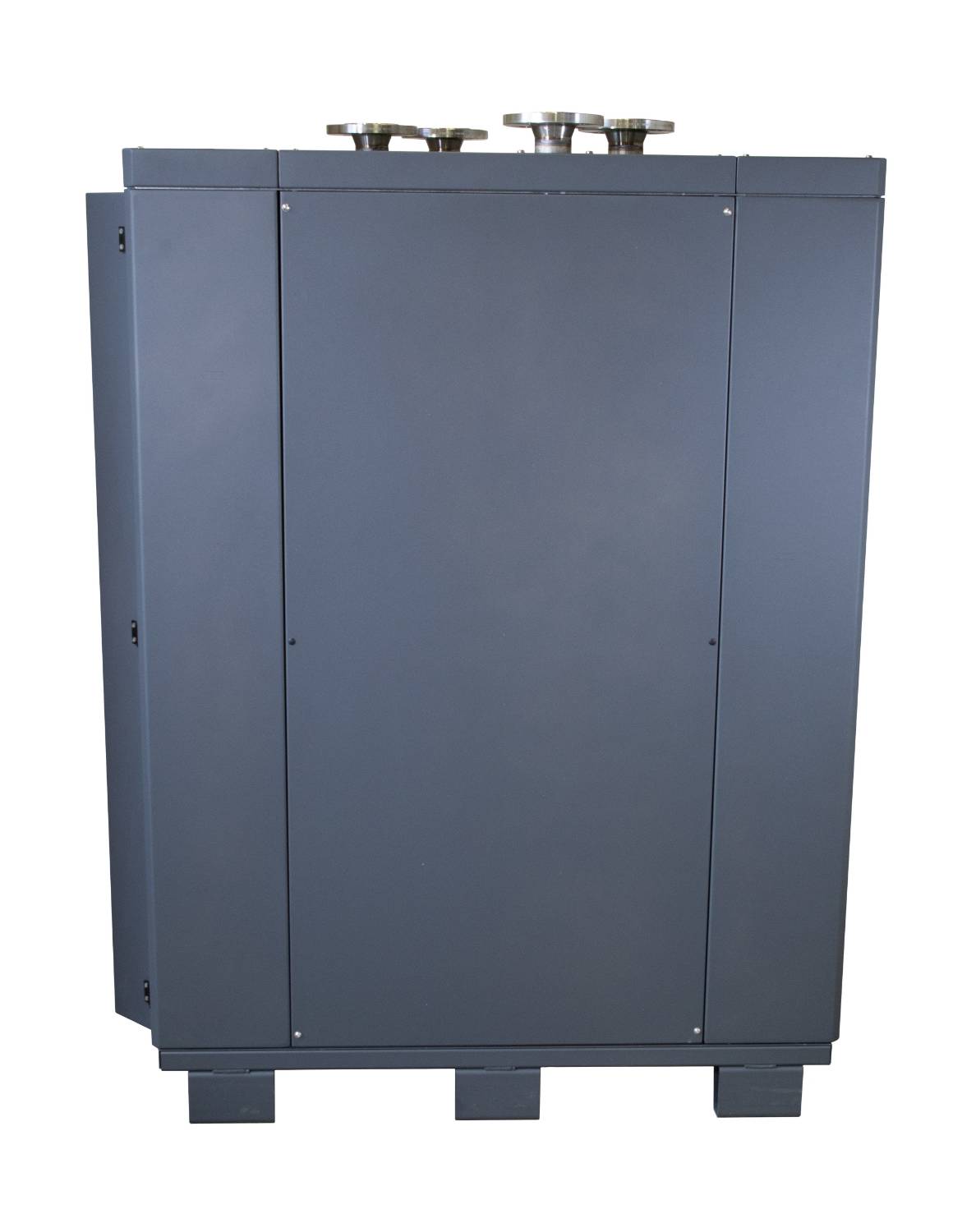

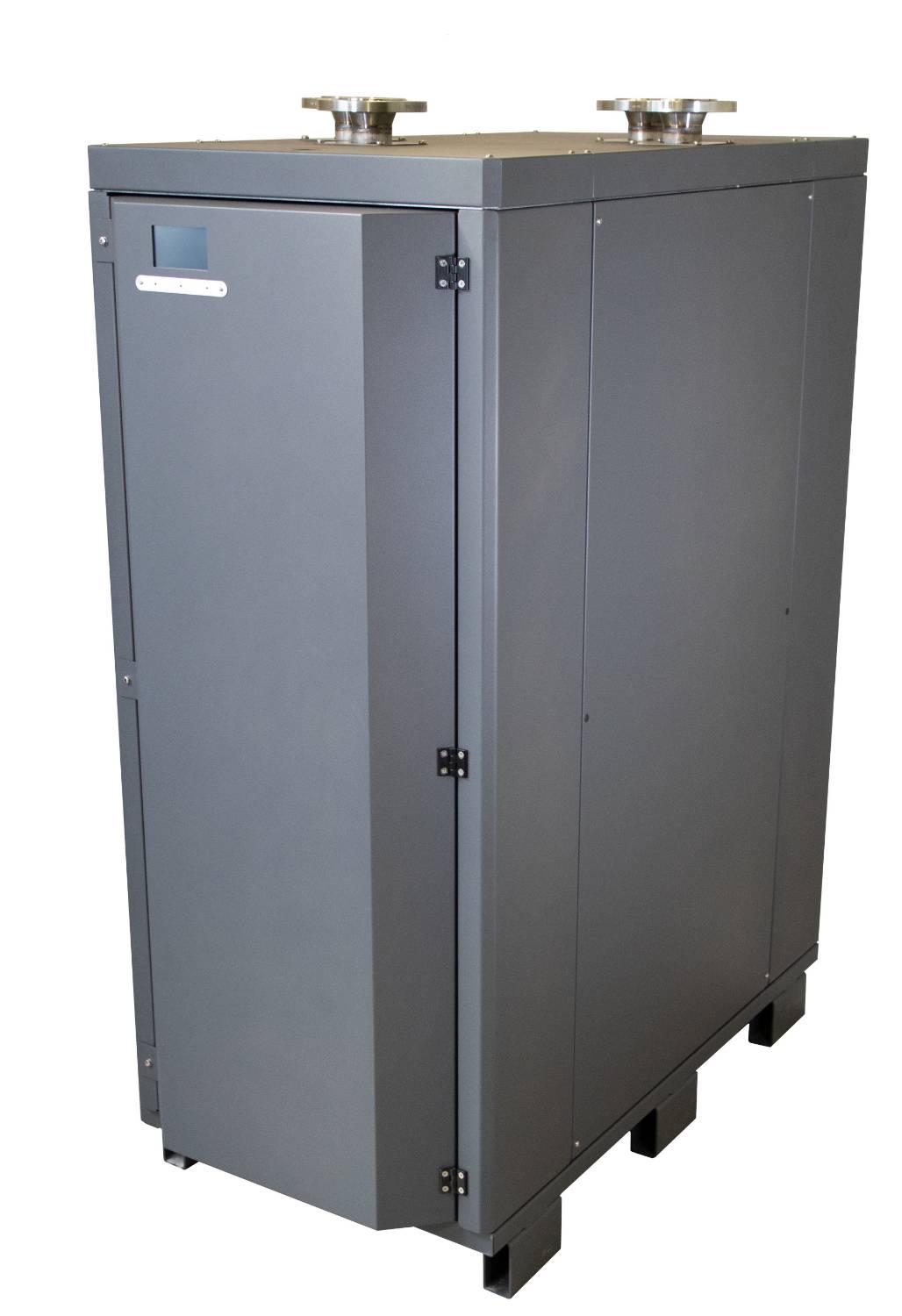

The Kensa Q80 Series Heat Pump is designed to provide a low cost renewable heat source for a building’s heating system and will generate significantly lower carbon emissions and running costs compared with traditional fossil fuels.
Kensa Q80 Series Heat Pumps are available with an output of 83kW, and are of a modular design meaning by combining them much higher loads can be achieved.
Features and benefits:
Color | Grey |
Material | Steel |
Shape | Rectangle |
Length | 1418 mm Guidance for specification option: Depth. |
Width | 755 mm |
Height | 1718 mm |
Warranty description | Two year Guidance for specification option: Controller and water pumps. Five year Guidance for specification option: Core heat pump unit (refrigeration components). |
Uniclass | |
CAWS | T90/525 Ground heat exchangers T90/525 Ground heat exchangers |
SKU Code | Q80-MAK |
Loop depth | Guidance for specification option: Consult manufacturer and insert requirements. |
Pipe diameter | 50 mm. |
Borehole diameter | Guidance for specification option: Consult manufacturer and insert requirements. |
Thermal | 83 kW. |
Power consumption | 20.5 kW. |
CoefficientOfPerformance | To EN 14511, 3.94. |
Flowrate | 359 L/min (brine); 240 L/min (heating water). Guidance for specification option:
|
PressureDrop | 46.3 kPa (brine); 27.6 kPa (heating water). Guidance for specification option:
|
WaterInletTemperatureRange | -5℃ to 15℃. Manufacturer guidanceMin–max inlet temperature. |
Heating secondary flow temperature (UFH) | 64℃. |
RatedVoltage | 380–420 V, 50 Hz. |
Power supply | 65 A. Manufacturer guidanceRating amps. |
RatedCurrent | 64 A. Manufacturer guidanceMax amps. |
Process medium | R407C. |
InternalRefrigerantVolume | 6.8 kg. |
Compressor | Twin scroll. |
Dimensions | 1718 x 755 x 1418 mm. |
Dry weight | 665 kg. |
Rating | A++. Guidance for specification option: Performance (based on Average Climate) @35℃. Manufacturer guidanceErP. |
Overall sound power level | 72.3 dB (A). |
Country of product manufacture | United Kingdom |
Material | Steel |
Recyclability | Disposal/Decommissioning Kensa offer a life time decommissioning service for this product. This is available on a return to base basis (carriage at users cost). Disposal of any antifreeze water mix should follow the disposal instructions as laid out on the COSH Safety Data Sheet in the Installation Manual. This symbol on the product indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the company where this product was purchased. Returning products Customers and stockists are reminded that under EC Health, Safety and Environment Law, when returning products to Kensa Heat Pumps they must provide information on any hazards and the precautions to be taken due to contamination residues or mechanical damage which may present a health, safety or environmental risk. This information must be provided in writing including Health and Safety data sheets relating to any substances identified as hazardous or potentially hazardous. |
